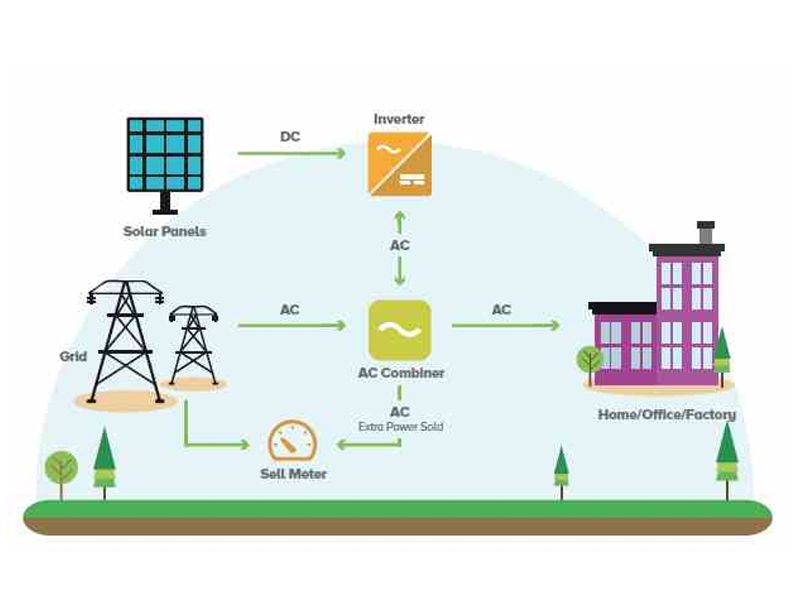

Industrial & Commercial PV Grid-Connected System
·Strong reactive power compensation ability, power factor adjustable range ± 0.8
·Multiple communication methods are flexible and optional (RS485, Ethernet, GPRS/Wi-Fi)
·Support remote upgrade
·With PID repair, improve module performance
·Equipped with AC and DC switch, maintenance is safer and more convenient
·100% selection of world-renowned components, long service life
·Distributed
·Roofs
·Hotels
·Factories
·Resorts
·Commercial buildings
·Conference centers
·Office buildings
|
System power |
40KW |
50KW |
60KW |
80KW |
100KW |
|
Solar panel power |
400W |
420W |
450W |
450W |
450W |
|
Number of solar panels |
100 PCS |
120 PCS |
134 PCS |
178 PCS |
222 PCS |
|
Photovoltaic DC cable |
1 SET |
||||
|
MC4 connector |
1 SET |
||||
|
Rated output power of inverter |
33KW |
40KW |
50KW |
70KW |
80KW |
|
Maximum output apparent power |
36.3KVA |
44KVA |
55KVA |
77KVA |
88KVA |
|
Rated grid voltage |
3/N/PE,400V |
||||
|
Grid voltage range |
270-480Vac |
||||
|
Rated grid frequency |
50Hz |
||||
|
Grid frequency range |
45-65Hz |
||||
|
Maximum efficiency |
98.60% |
||||
|
Island effect protection |
YES |
||||
|
DC reverse connection protection |
YES |
||||
|
AC short circuit protection |
YES |
||||
|
Leakage current protection |
YES |
||||
|
Ingress protection level |
IP66 |
||||
|
Working temperature |
System |
||||
|
Cooling method |
Natural cooling |
||||
|
Maximum working altitude |
-25～+60℃ |
||||
|
Communication |
4G (optional) / WiFi (optional) |
||||
|
AC output copper core cable |
1 SET |
||||
|
Distribution box |
1 SET |
||||
|
Auxiliary material |
1 SET |
||||
|
Photovoltaic mounting type |
Aluminum / Carbon steel mounting (one set) |
||||
