SF Metal Roof Mount – Klip Lok Roof Clamps
This solar module mounting system is a non-penetrating racking solution for Klip Lok type metal roofing sheets. The simple design ensure quick installation and lower cost.

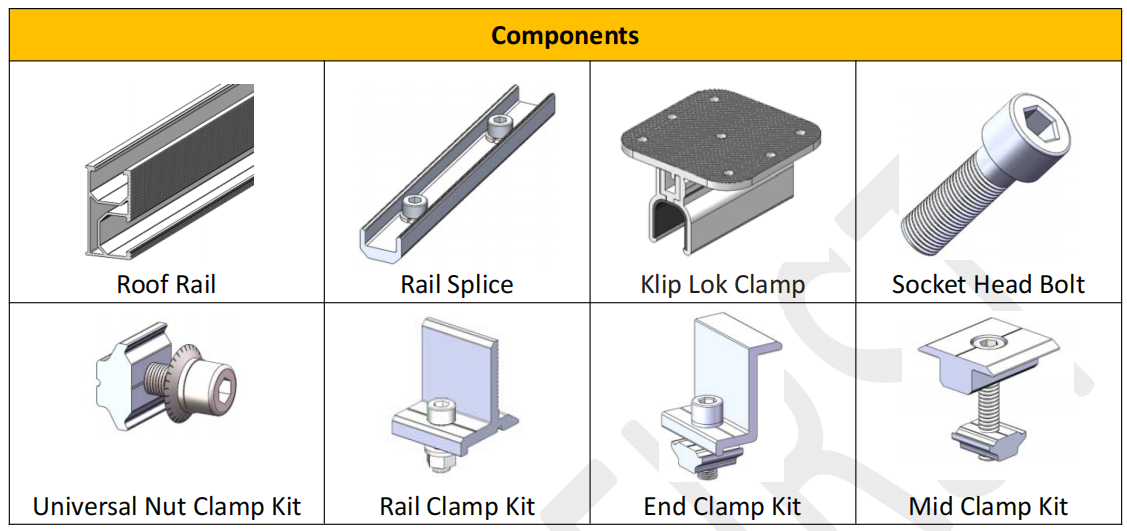

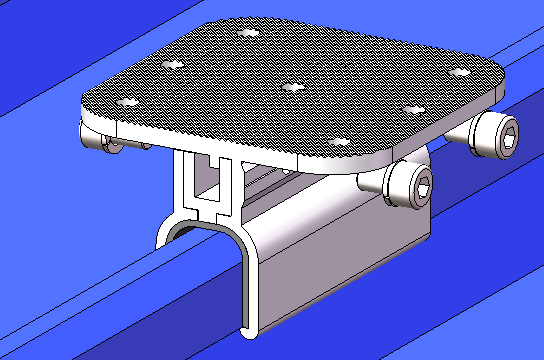

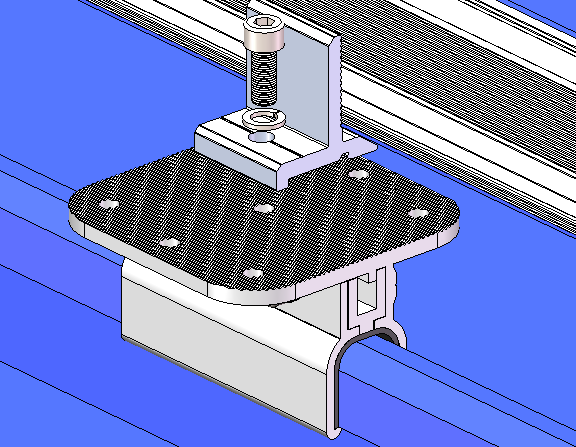

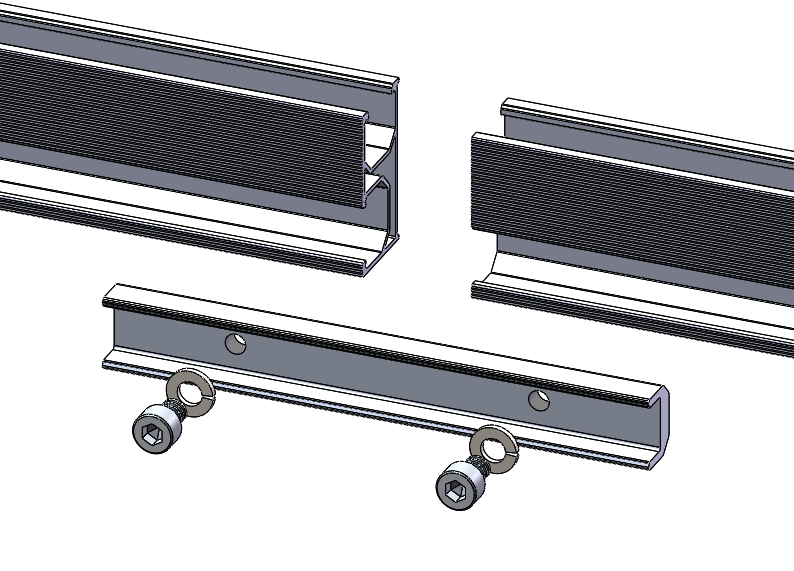

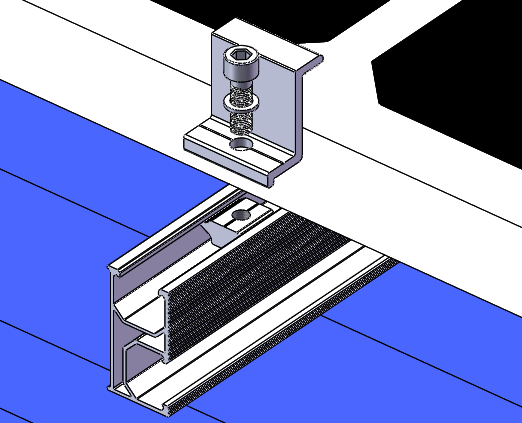

The aluminum clamps and rails impose light load on the steel structure under roof, making less extra burden. The specific design of Klip Lok clamps varies according to the type of Klip Lok roofing sheets. The roof clamp can also work with L foot bracket to elevate the solar module.

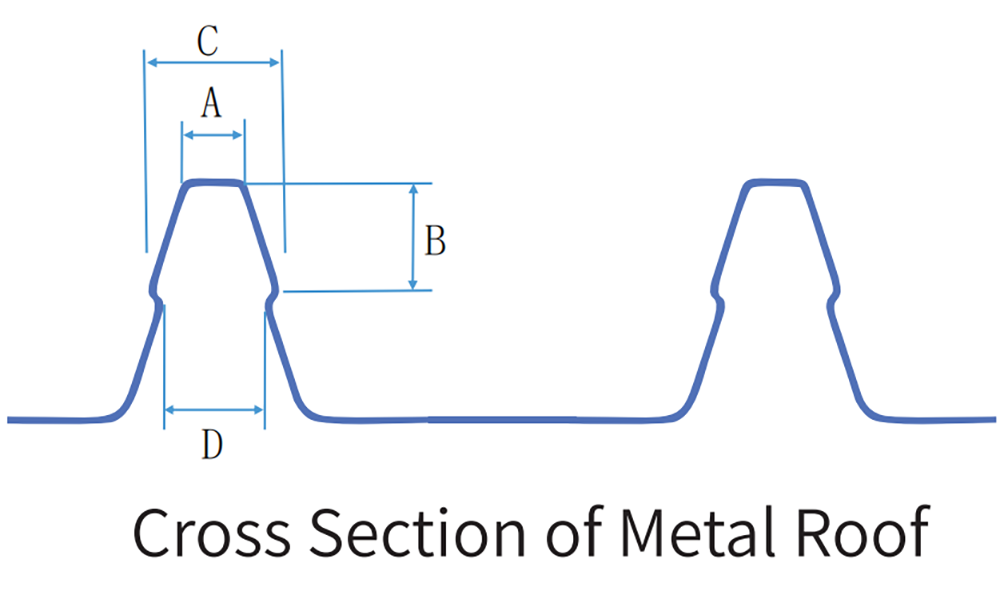

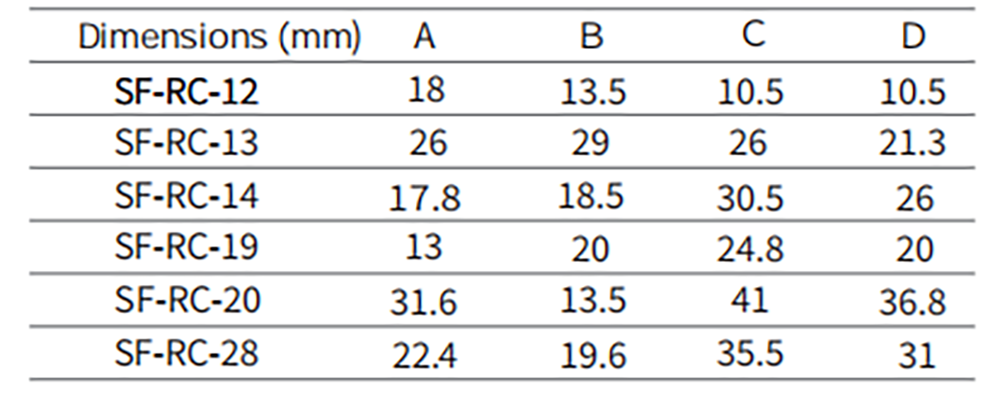

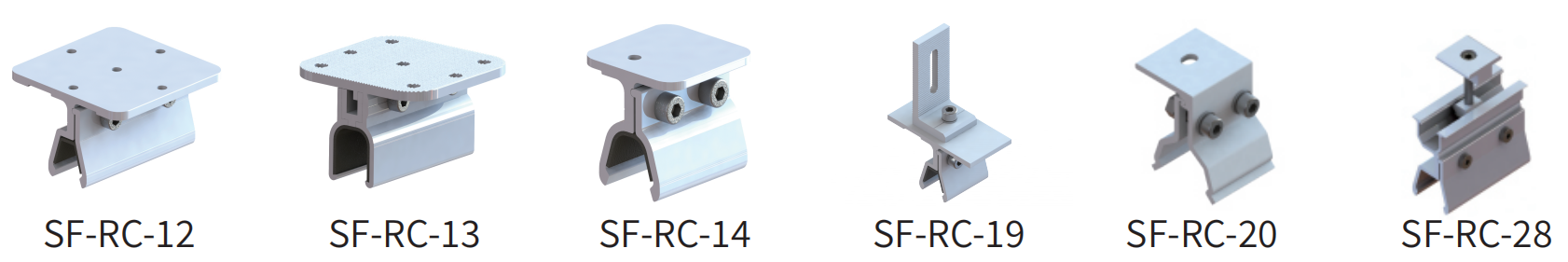

| Dimensions (mm) | A | B | C | D |
| SF-RC-12 | 18 | 13.5 | 10.5 | 10.5 |
| SF-RC-13 | 26 | 29 | 26 | 21.3 |
| SF-RC-14 | 17.8 | 18.5 | 30.5 | 26 |
| SF-RC-19 | 13 | 20 | 24.8 | 20 |
| SF-RC-20 | 31.6 | 13.5 | 41 | 36.8 |
| SF-RC-28 | 22.4 | 19.6 | 35.5 | 31 |
| SF-RC-32 | 2 | 22.9 | 18 | 10 |
| SF-RC-33 | 7.4 | 24.8 | 30 | 22.1 |
| Installation Site | Metal Roof |
| Wind Load | up to 60m/s |
| Snow Load | 1.4kn/m2 |
| Tilt Angle | Parallel to Roof Surface |
| Standards | GB50009-2012,EN1990:2002,ASE7-05,AS/NZS1170,JIS C8955:2017.GB50429-2007 |
| Material | Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 |
| Warranty | 10 Years Warranty |
