SF Metal Roof Mount – Mini Rail

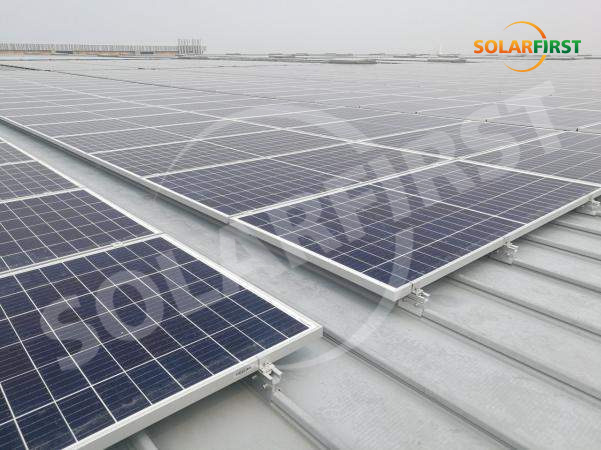

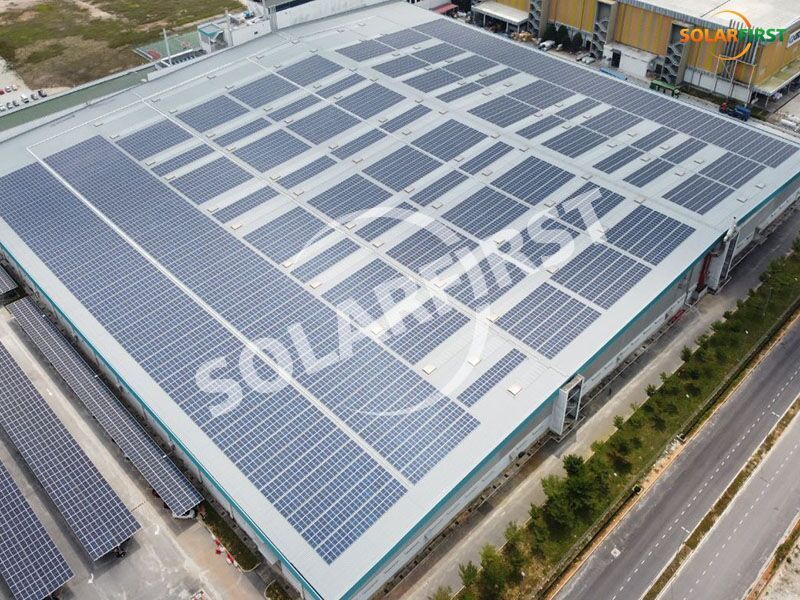

This solar module mounting system is a non-penetrating racking solution that integrates rail, making this solution most economical for trapezoidal metal roof. The solar panel can be installed by module clamps without other rails. Its simple design guarantees quick and easy positioning and installation, and contributes to lower installation and transportation cost.
This solution impose light load on the steel structure under roof, making less extra burden on roof. The specific design of minirail clamps varies according to the type of roofing sheets, and can be customized, including Klip Lok and Seam Lok.
Compared with traditional clamp solutions, this Mini Rail Clip Lock has the following characteristics：
1. Aluminum alloy material: anodizing treatment makes the structure resistant to corrosion.
2. Accurate positioning: install the mini rail clip lock according to the drawing, no errors, no adjustments.
3. Quick installation: easier to mount the solar panel without long roof rails.
4. No hole-drilling: no leaking will occur after assembling.
5. Low shipping cost: no long rails, smaller size and lighter weight, can save container space and shipping cost.
Light weight, no rail and no hole-drilling solution make Solar First Mini Rail Clip Lock project cost-saving, time-saving and easy for assembling.
|
Dimensions (mm) |
A | B | C | D |
| SF-RC-34 |
12.4 |
19.1 |
24.5 |
20.2 |
| SF-RC-35 | 17.9 | 13.8 | 25 | 16.2 |
|
SF-RC-36 |
0 |
10.1 |
20.2 |
7.1 |
|
SF-RC-37 |
0 |
12.3 |
24.6 |
14.7 |
| Installation Site | Metal Roof |
| Wind Load | up to 60m/s |
| Snow Load | 1.4kn/m2 |
| Tilt Angle | Parallel to Roof Surface |
| Standards | GB50009-2012,EN1990:2002,ASE7-05,AS/NZS1170,JIS C8955:2017,GB50429-2007 |
| Material | Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 |
| Warranty | 10 Years Warranty |
