SF Metal Roof Mount – Angular (Klip Lok) Roof Clamps

Short Description:

Solar First Roof angular / klip lok metal roof clamps mounting structure is widely applied for commercial and residential metal roof (or tin roof) project. This mounting structure system is very popular with customers, the wide range of different components make it possible to fasten almost all sorts of module.

Product Detail

Product Tags

Product Details

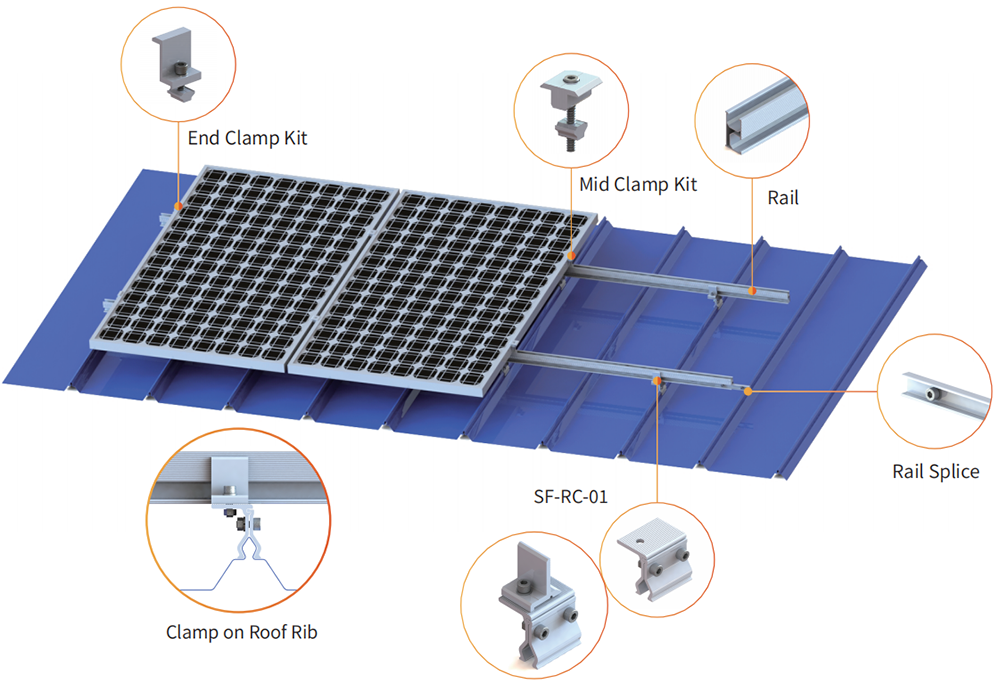

SF-RC Roof Clamp Series


Cross Section of Metal Roof

Dimensions (mm) A B C D
SF-RC-01 18 13.5 10.5 10
SF-RC-02 26 12 10.5 18
SF-RC-03 35 21.6 2.5 31.5
SF-RC-04 16.3 16.3 2.5 12
SF-RC-05 15 12.2 10 10

Technical Details


Installation Site Metal Roof
Wind Load up to 60m/s
Snow Load 1.4kn/m2
Tilt Angle Parallel to Roof Surface
Standards AS/NZS1170, JIS C8955:2017, GB50009-2012, DIN 1055, IBC 2006
Material Anodized Aluminum AL 6005-T5, Stainless Steel SUS304
Warranty 10 Years Warranty

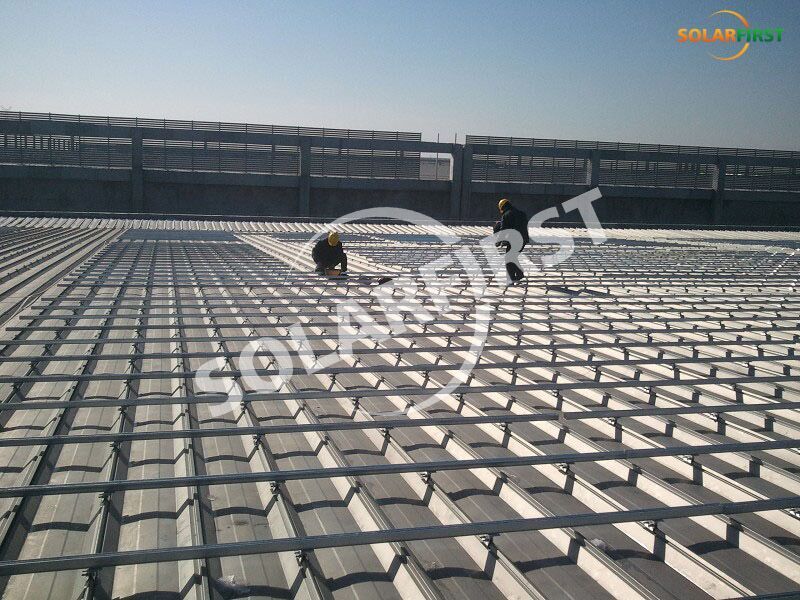

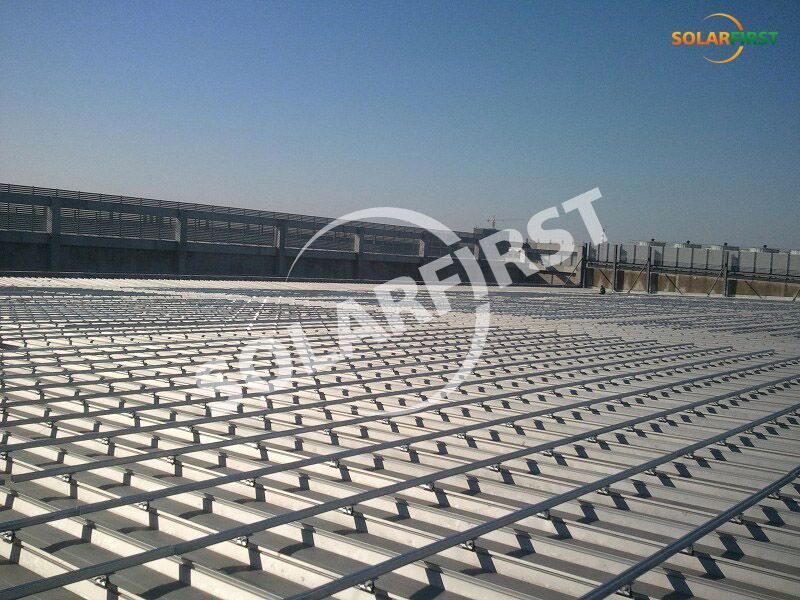

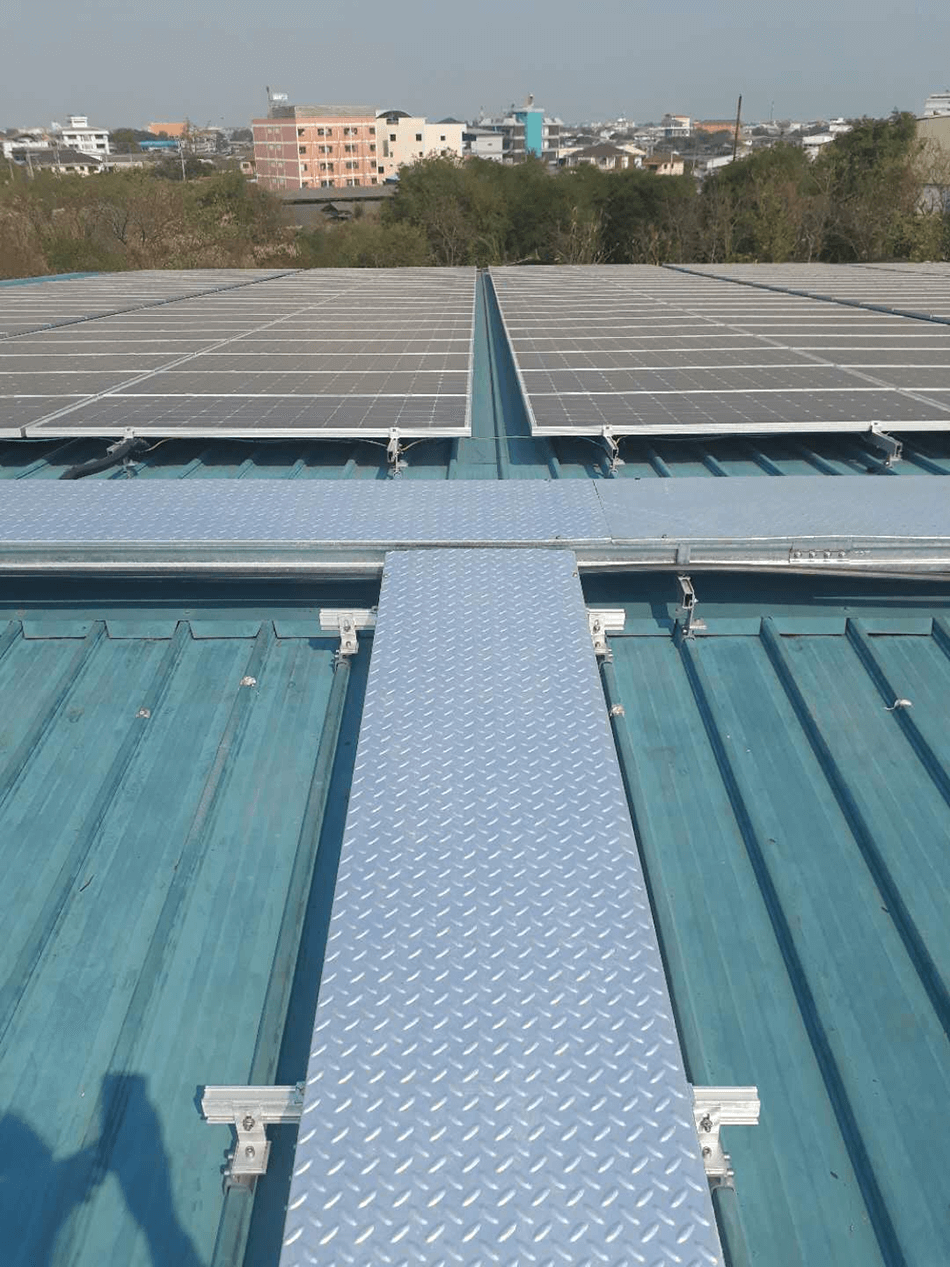

Project Reference
