Solar Tile Roof Hook Steel PV Hooks

Short Description:

Pitched tile roof mounting is designed with great flexibility both for commercial and residential roof solar system. It is suitable for installing framed and frameless modules flushed to the pitched roof. Special extruded aluminum rail, pre-assembled clamps and varied roof hooks or brackets with tilt-in modules ensure easy and quick installation.

Our Solar Hook is designed for roofs that use interlocking tile or concrete tile. No tile augmentation is necessary to achieve a low profile install that lays flat, made in full stainless steel 304 material with borax finish treatment, available in various types, adjustable and non-adjustable.


Product Detail

Product Tags

Advantages

·Great flexibility: tile hook several types according to your tile direction.
·Easy installation: simple hook components.
·Save 50% labor: cost most parts are preassembled.
·Rust-resistance.

SF-RC Roof Clamp Series

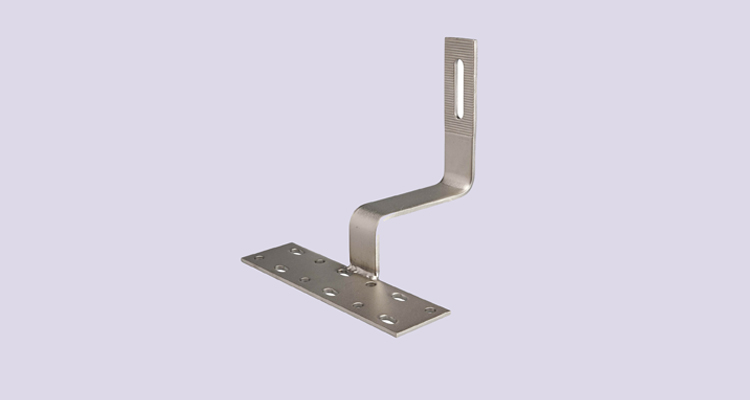

xm70
xm68
xm71

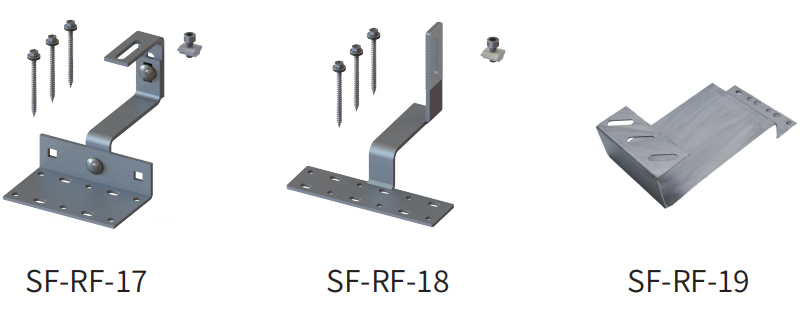

Tile Roof Hook
Materail: SUS 304
Function: Fix rails to rooftop

xm69

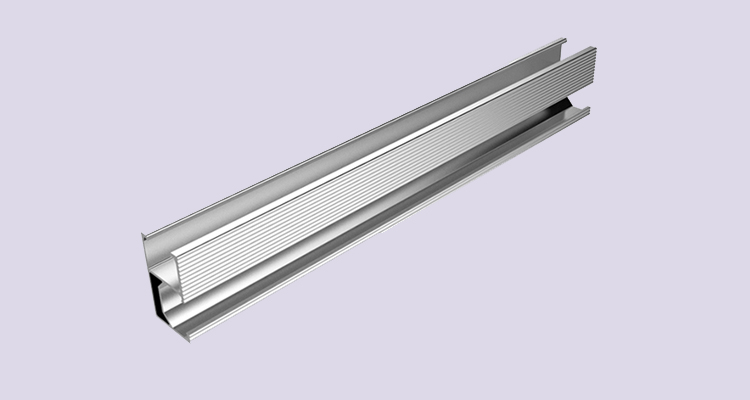

Aluminum Rail
Materail: AL6005-T5
Function: Fix panels with clamps to rooftop

xm72
xm74

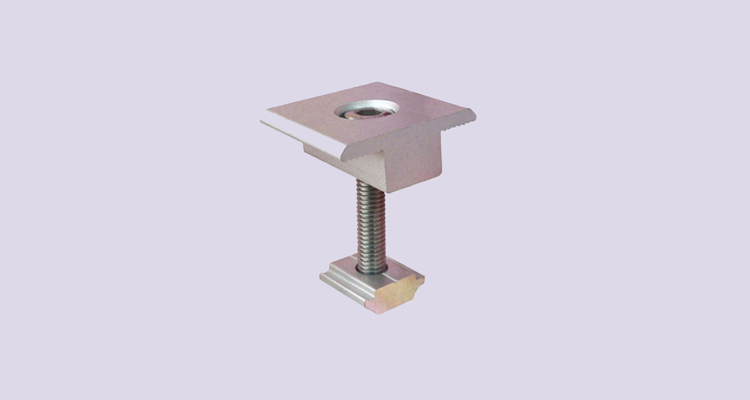

Mid Clamp
Materail: AL6005-T5, SUS304
Function: Fix panels to rails in the mid of panels

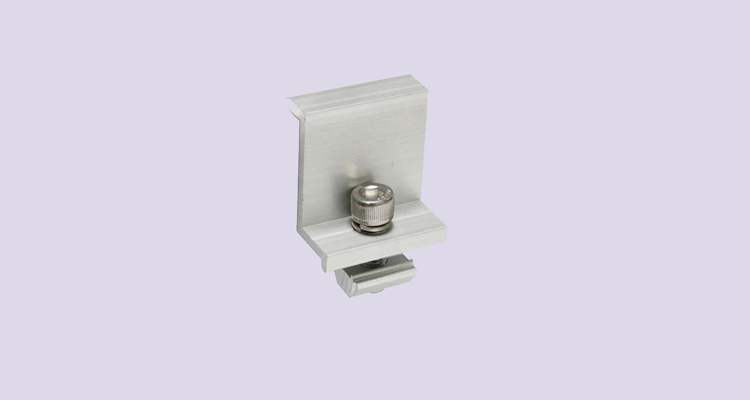

End Clamp
Materail: AL6005-T5, SUS304
Funcation: Fix panels to rails at the end of panels

xm75

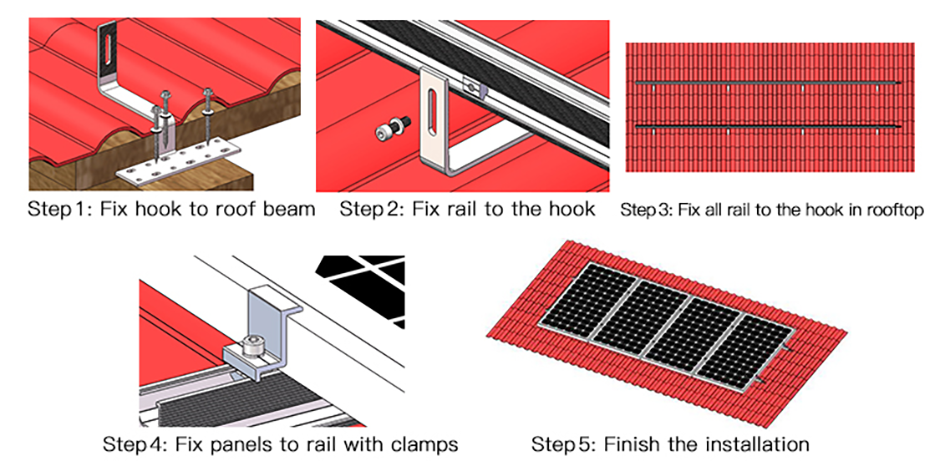

Installation Guide

xm76

Technical Details

Installation Pitched Tile Roof
Color Silver Or Customized
Wind Load Up to 60m/s
Sonw Load 1.4kn/m2
Tile Angle Parallel To Roof Surface
Material Anodized AL6005-T5, SUS304
Warranty 10 Years Warranty And 25 Years Service Life
Standards AS/NZS1170, JIS C8955:2017, GB50009-2012, DIN1055, IBC2006

Project Reference

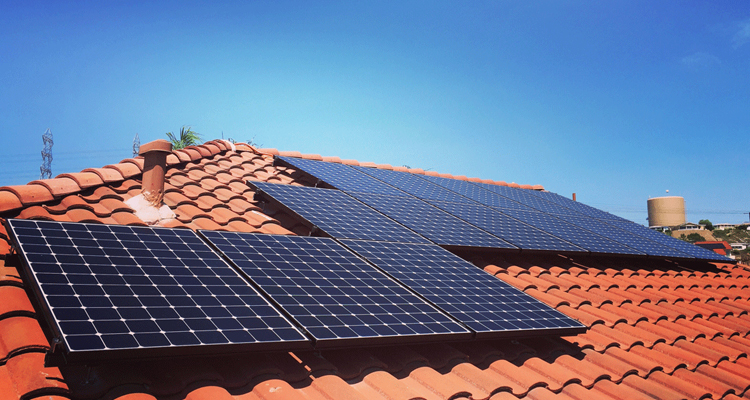

xm77

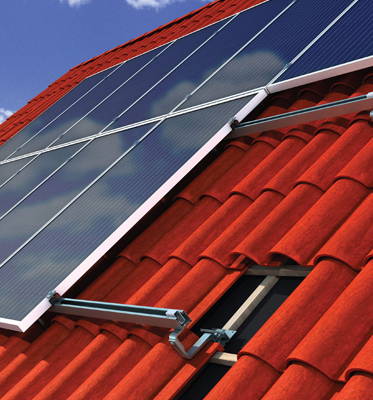

xm78
