L Foot – SF Metal Roof Solar Photovoltaic Mounting

Short Description:

Solar First Roof standing seam clamps mounting structure is widely applied for commercial and residential roof project. The system designed for pitch tin roof, which is very popular with customers, the wide range of different components make it possible to fasten almost all sorts of module.

Solar First L Foot mounting system designed for tin roof installation, characterized with excellent adaptability to most of tin roof installations,available in portrait and landscape installation for framed or non-framed solar modules, Tilt adaptability ranging from 0~45 degrees.


Product Detail

Product Tags

Advantages

·High solar module compatibility
·Safety and reliability
·Easy installation
·Rust-resistance

SF-RC Roof Clamp Series

xm59
xm60

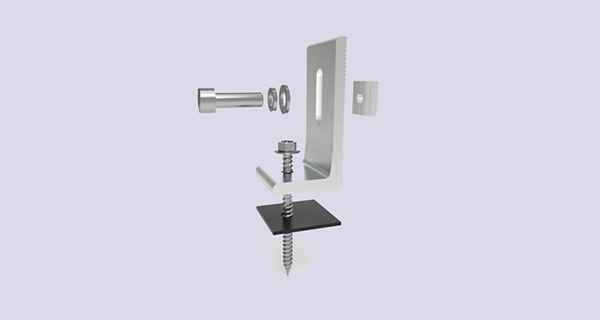

L Foot
Materail: AL6005-T5, SUS 304
Function: Fix rails to rooftop

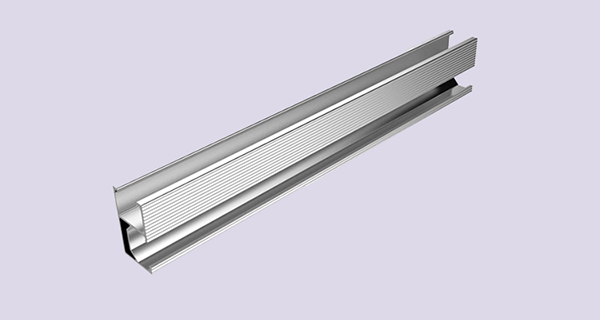

Aluminum Rail
Materail: AL6005-T5
Function: Fix panels with clamps to rooftop

xm61
xm62

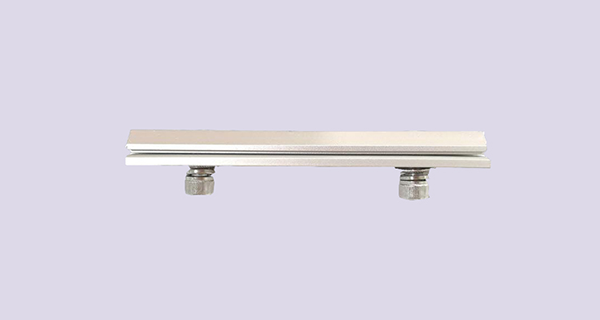

Rail Splice
Materail: AL6005-T5, SUS304
Function: Connect rails

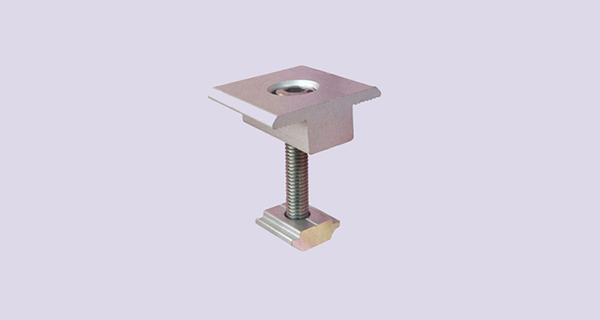

Mid Clamp
Materail: AL6005-T5, SUS304
Function: Fix panels to rails in the mid of panels

xm63
xm64

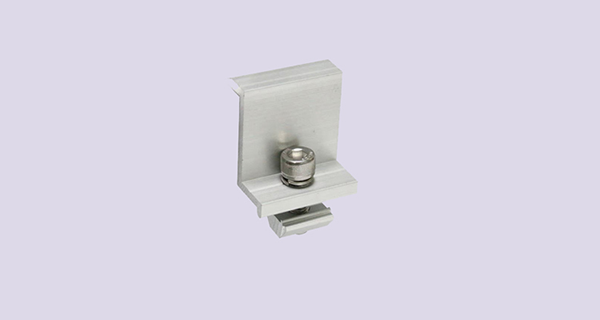

End Clamp
Materail: AL6005-T5, SUS304
Funcation: Fix panels to rails at the end of panels

Technical Details

Installation site Tin roof
Applicable module Framed or frameless panels
Material Aluminum 6005-T5, SUS304
Wind Load Up to 60m/s
Snow Load 1.4kn/m2
Tile Angle Parallel to roof surface
Warranty 10 Years warranty and 25 years service life
Standards AS/NZS 1170, JIS C8955:2017, GB50009-2012, DIN 1055, IBC 2006

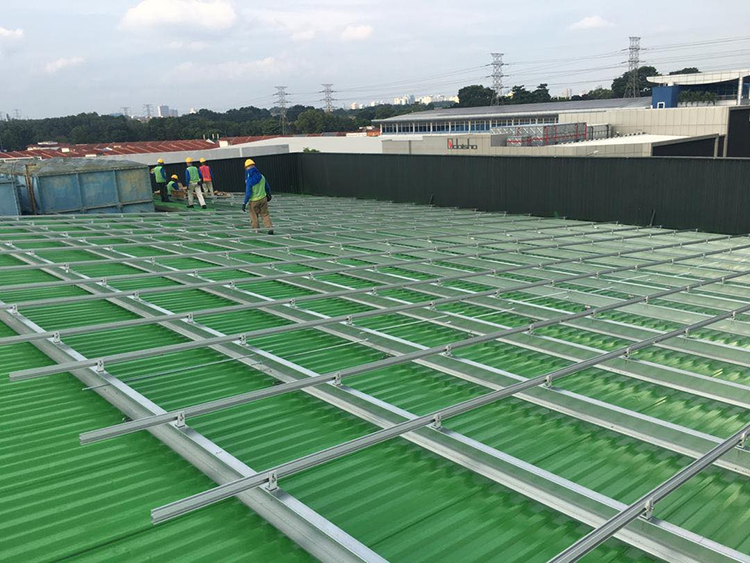

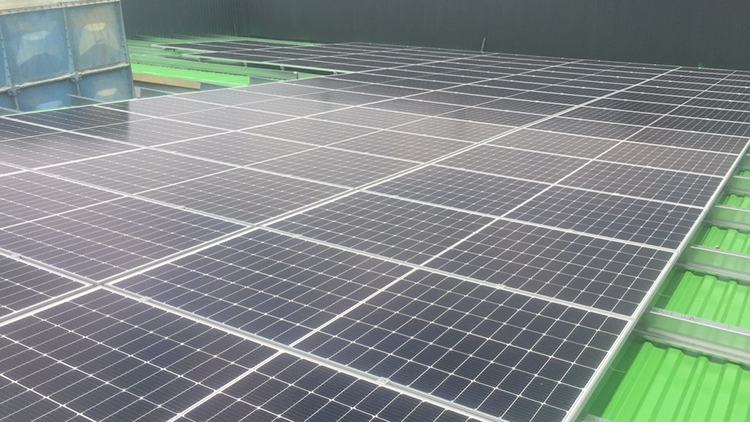

Project Reference
