Introduction

The SFPVROOM series PV glass certain wall solutions combine building structure and power generation, and provide functions of windproof, snowproof, waterproof, light transmission. This series has compact structure, great appearance and high adaptability to most sites.

Curtain wall+ solar photovoltaic, an eco-friendly substitution to the glass curtain wall system.

xm45

Curtail Wall Structure 01

xm47

Curtail Wall Structure 03

xm46

Curtail Wall Structure 02

xm48

Curtail Wall Structure 04

xm49

Characteristic

Diversified Customization:
Optional aluminum profiles with colorful surface treatment, the product material can be made into different shapes:
square, circle, bent, straight, or other custom-tailored styles.

Good Weather Resistance:
The aluminum structure with anodized surface ensure long service life, stabiity, and anti-corrosion. The solar
modules and heat-insulated aluminum profile provide double assurance to block exterior heat.

High Load Resistance:
35cm snow cover and 42m/s wind speed are considered in this solution according to EN13830 standard.

Typical Applications

·For Houses and Villas
·For Commercial Building
·For Building Facade
·For Fence

Optional Extensions

·Steel Frame Structure
·Smart Sunshade
·Windows for Natural Ventilation
·More Attachments Available

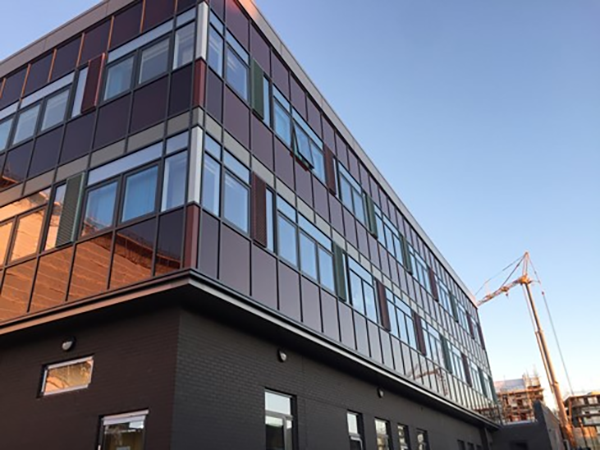

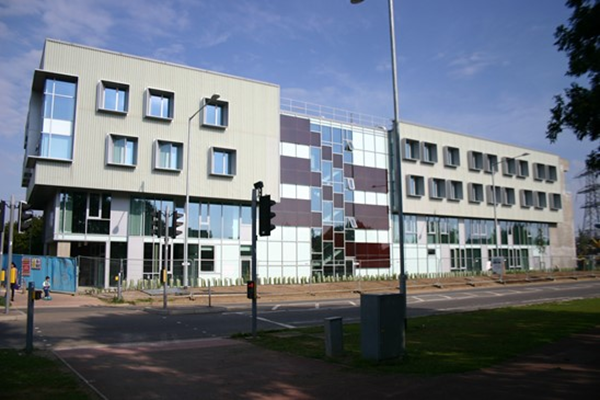

Project Reference

xm50
xm51
