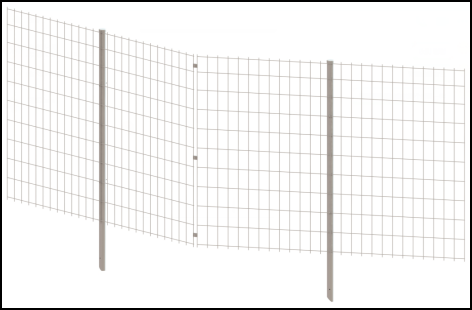

Solar Fence Waterproof Outdoor Fence
·To effectively protect personnel safety both
inside and outside the project site.
·To prevent theft.
·Applicable to flat ground, as well as slopes at a certain inclination.
·Install easily, save labor costs.
·A simple protective fence with high strength, high durability, high quality and low cost.
Connection between column and net(J bolt)
Connection between nets(Connector)
Connection at Corner Connection on Slope
# Size may be customized
Ground Screw Foundation
|
Net Height (mm) |
Φ48 Column Length (mm) |
Ground Screw Length (mm) |
|
1000 |
1070 |
800 |
|
1200 |
1270 |
800 |
|
1500 |
1570 |
800 |
|
1800 |
1870 |
1000 |
|
2000 |
2070 |
1000 |
Column Foundation
|
Net Height (mm) |
Φ48 Column Length (mm) |
Buried Depth (mm) |
|
1000 |
1870 |
800 |
|
1200 |
2070 |
800 |
|
1500 |
2370 |
800 |
|
1800 |
2870 |
1000 |
|
2000 |
3070 |
1000 |
Concrete Foundation
|
Net Height (mm) |
Φ48 Column Length (mm) |
Buried Depth (mm) |
|
1000 |
1470 |
400 |
|
1200 |
1670 |
400 |
|
1500 |
1970 |
400 |
|
1800 |
2370 |
500 |
|
2000 |
2570 |
500 |
|
No. |
Description |
Dimension (mm) |
Material |
Surface Treatment |
Unit |
|
1 |
Mesh |
φ3.5*L2000 |
steel |
plastic dipping or galvanization |
piece |
|
2 |
Column |
φ48*T2 |
steel |
plastic dipping or galvanization |
piece |
|
3 |
Ground Screw |
φ38 |
steel |
hot dip galvanization |
piece |
|
4 |
Connector |
/ |
aluminum/stainless steel |
anodization |
set |
Double Gate
Single Gate
