RAMMING PILE SOLAR GROUND MOUNTING SYSTEM (H/C COLUMN)

Short Description:

This system is designed with hot-dip galvanized C-shape steel as foundation and anodized aluminum alloy as bracket, applicable to both flat ground and slope, especially slope areas, with 25 years’ life span. 40% of the components and structures are pre-assembled before dispatch, which significantly saves construction time and cost for EPC’s and developers.


Product Detail

Product Tags

Available Types of Columns

xmcc1

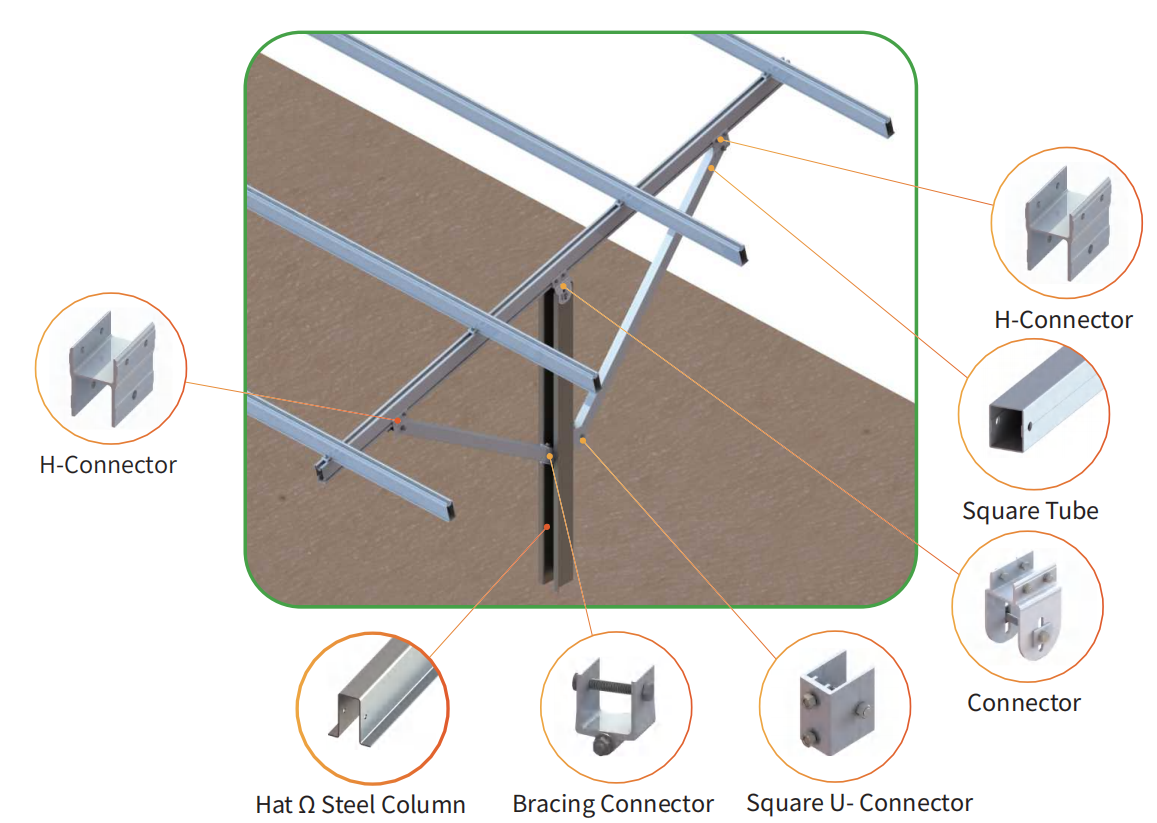

➀ Hat Ω Column

xmcc2

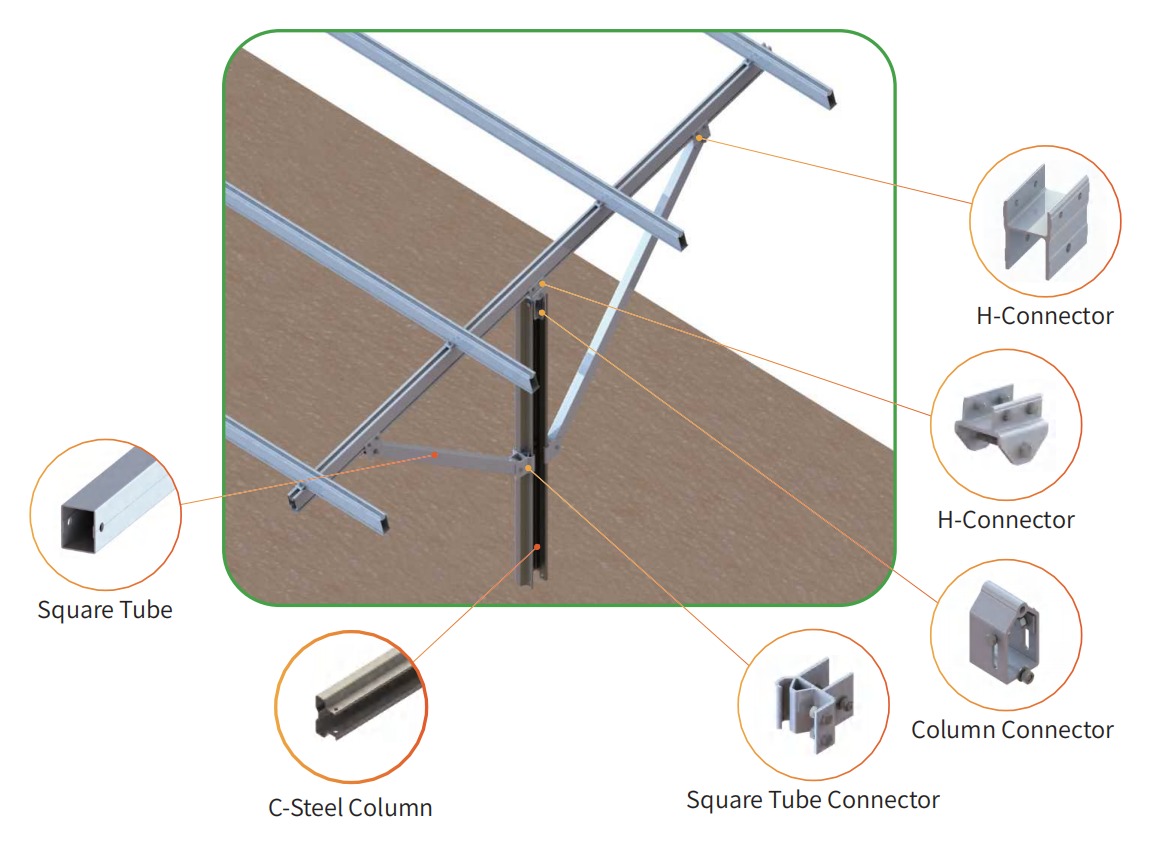

➁ C Column

xmcc3

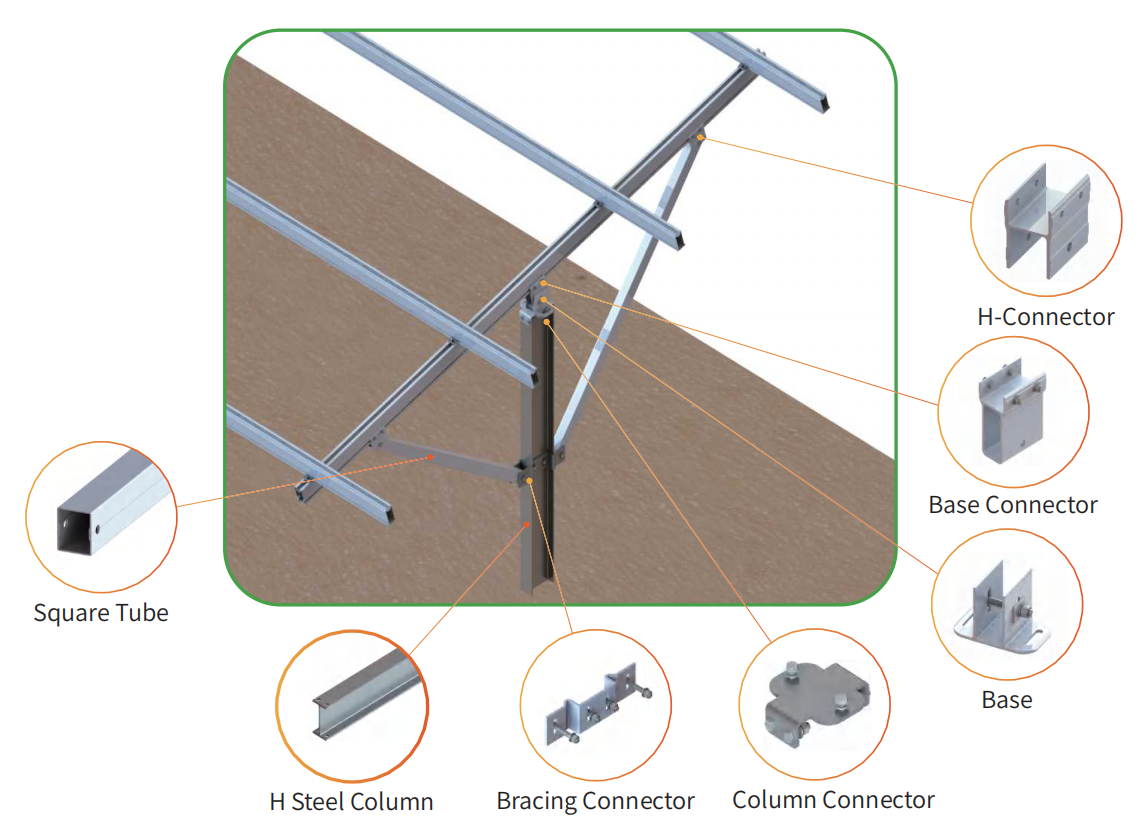

➂ H Column

Installation Steps

xmcc5

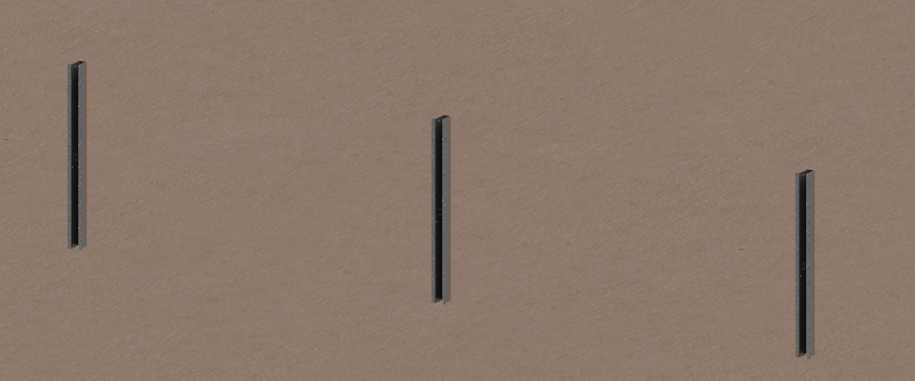

01 Piling

xmcc6

02 Install the pre-assembled bracket (The pre-assembled bracket is a complete set,which can be easily installed on site, and can

xmcc7

03 Intall rails

xmcc8

04 Install panels

Technical Details

Installation Ground
Wind Load up to 60m/s
Snow Load 1.4kn/m2
Standards AS/NZS1 170, JIS C8955:2017, GB50009-2012, DIN 1055, IBC 2006
Material Aluminum AL6005-T5,  Hot Dip Gavanized Steel, Stainless Steel SUS304
Warranty 10 Years Warranty

Characteristic

The system especially suitable for hillsides and uneven ground areas.

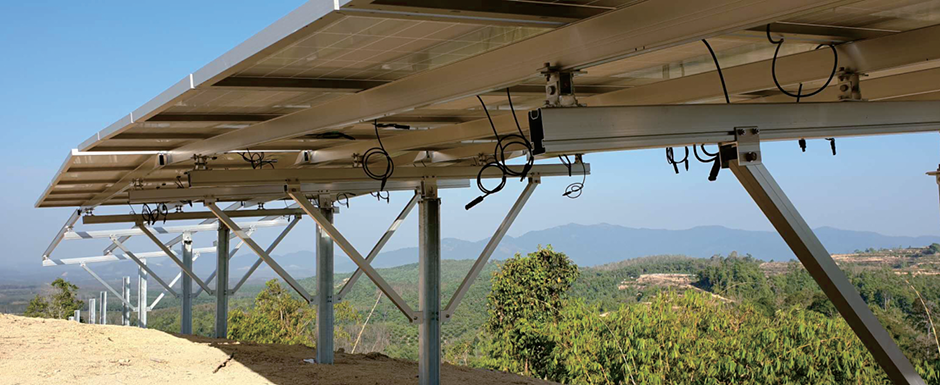

Project Reference

xmj42
