SF Metal Roof Mount – Wavy Roof Clamps

Short Description:

Solar Fist Wavy Roof Clamp designed for wave-type metal sheet roof installation, it’s easy and fast to install. The universal Solar Rack / Rail and Solar Module Clamps are made full anodized aluminum. The system designed for pitch tin roof, which is very popular with customers, the wide range of different components make it possible to install almost all sorts of module.


Product Detail

Product Tags

Product Details

xmx24

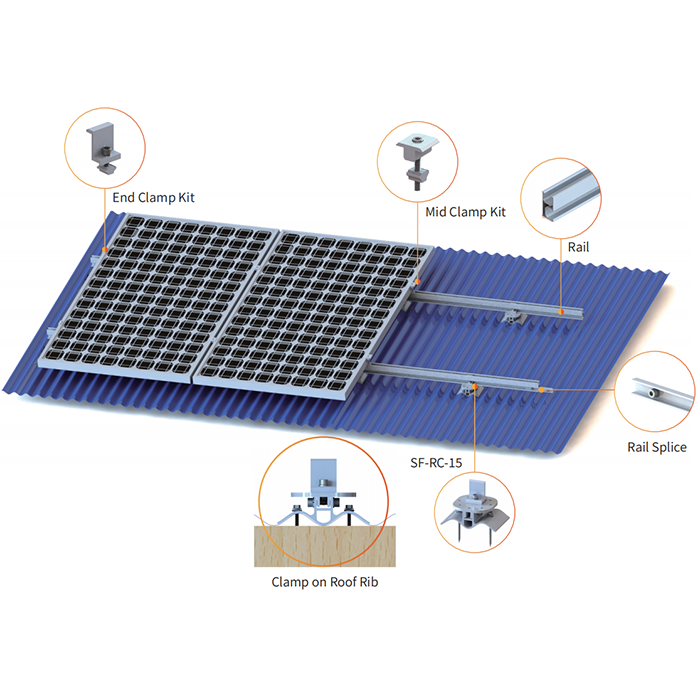

SF-RC Roof Clamp Series

xmx25

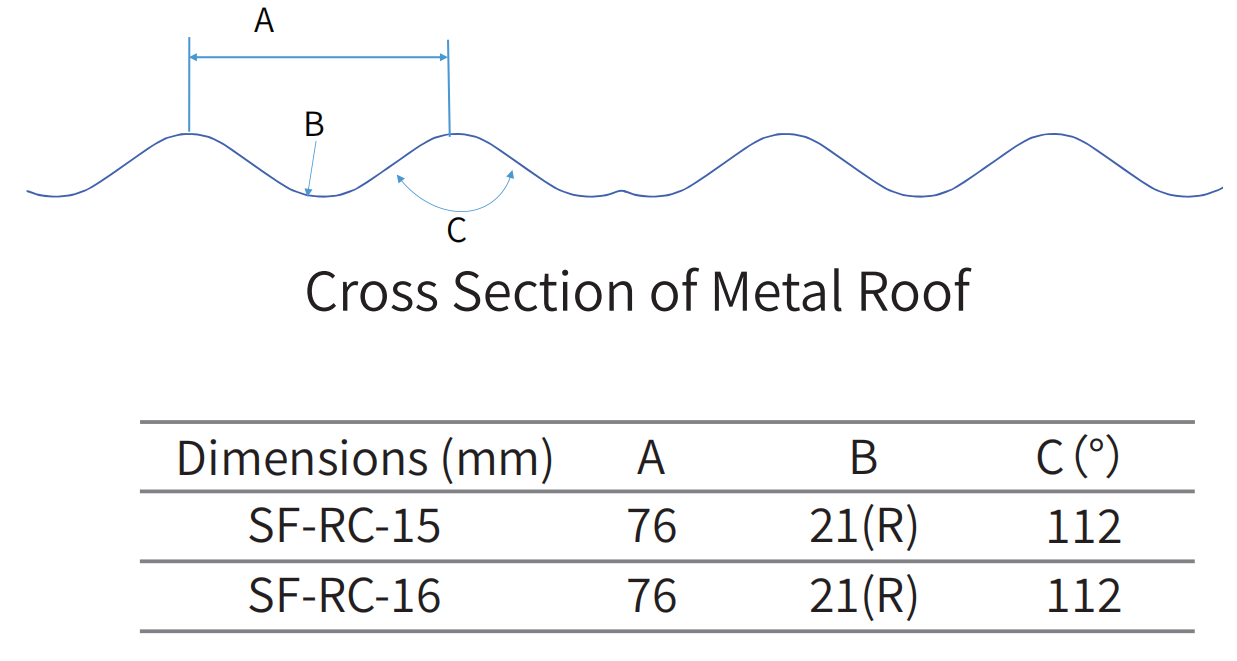

Cross Section of Metal Roof

Cross Section of Metal Roof1
Dimensions (mm) A B C(°)
SF-RC-15 76 21(R) 112
SF-RC-16 76 21(R) 112

Technical Details

Installation Site Metal Roof
Wind Load up to 60m/s
Snow Load 1.4kn/m2
Tilt Angle Parallel to Roof Surface
Standards AS/NZS1170, JIS C8955:2017, GB50009-2012, DIN 1055, IBC 2006
Material Anodized Aluminum AL 6005-T5, Stainless Steel SUS304
Warranty 10 Years Warranty

Project Reference

Cross Section of Metal Roof2
