SF FLOATING SOLAR MOUNT (TGW01)

Short Description:


Product Detail

Product Tags

Introduction

SF-TGW01 is very suitable under normal circumstances, especially when the water area is sufficient, the wind load is large, the climate temperature is high, etc..
It's recommended to use SF-TGW01 product.

Floating Mounting System

qaz5

Structure

qaz6

Anchoring System

qaz7
SF-FLM-TGW01-5

Combiner Box Bracket

SF-FLM-TGW01-7

Straight Trunking

SF-FLM-TGW01-4

Aisle

SF-FLM-TGW01-8

Turning Trunking

Technical Details

Installation Water Surface
Surface Wave Height  ≤0.5m
Surface Flow Rate  ≤0.51m/s
Wind Load  ≤36m/s
Snow Load  ≤0.45kn/m²
Tilt Angle 0~25°
Standards BS6349-6, T/CPIA 0017-2019, T/CPIA 0016-2019, NBT 10187-2019, GBT 13508-1992
Material  HDPE, Anodized Aluminum AL6005-T5, Stainless Steel SUS304
Warranty  10 Years Warranty

Characteristic

1. Convenient maintenance: there is a row of floating bodies connecteing each row of modules, which can form a row of maintenance walkways for easy maintenance. 2. Ventilation and heat dissipation: there is enough space between each row of modules for ventilation and heat dissipation, which can prevent modules from overheating under high temperature conditions.
3. Small wind load pressure: it's arranged at intervals to reduce the wind load generated by the wind on the array.SF-FLM-TGW01 is very suitable under normal circumstances, especially when the water area is sufficient, the wind load is large, the climate temperature is high, etc.

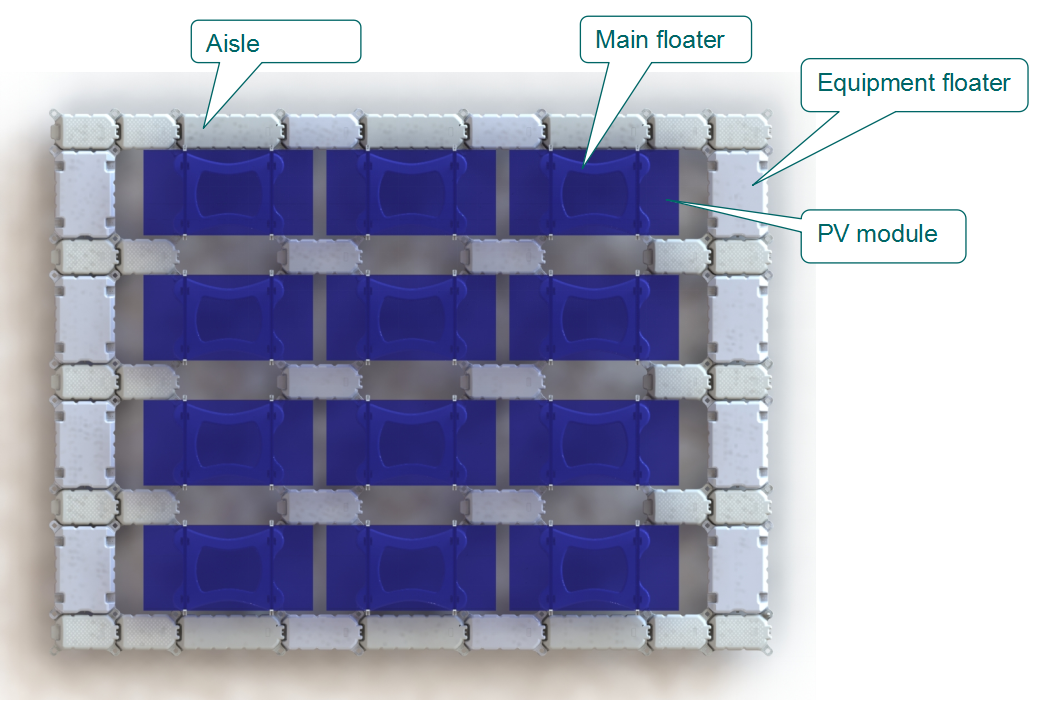

SF-FLM-TGW01-6

Advantages

The floating photovoltaic system on the water is different from the photovoltaic power generation projects on the ground and roof.
With the declining use of land resources, the land available for the construction of photovoltaic power plants will become increasingly scarce in the future. At the same time, the advantages of floating photovoltaic systems on water are slowly gaining attention from the photovoltaic industry.
The floating products developed by Solar First have the following advantages according to market development:
1. Save land resources, have less impact on the water ecological environment.
2. The covering of pv modules can reduce evaporation and algae reproduction.
3. Convenient operation and maintenance, the photovoltaic power station is built on the water, which can reduce the pollution of dust to the components and facilitate the cleaning of the components.
4. Save cost.
5. Recyclable materials, easy to disassemble and assemble.
6. No pollution to water sources, food-grade compatible drinking water and fresh natural water resources.

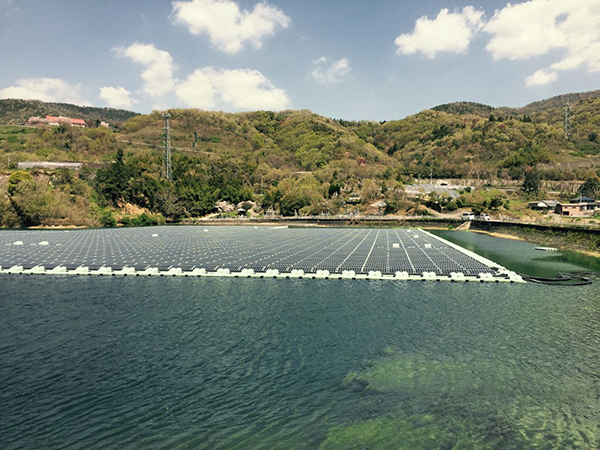

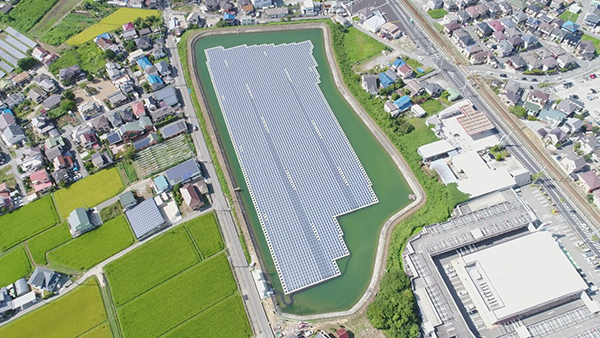

Project Reference

qaz8
qaz9
