U Rail – SF Metal Roof Mount

Short Description:

Solar First Roof standing seam clamps mounting structure is widely applied for commercial and residential roof project. The system designed for pitch tin roof, which is very popular with customers, the wide range of different components make it possible to fasten almost all sorts of module.

Solar Fist U Rail solution designed for metal sheet roof installation, with water proof anti-aging rubber piece, far simpler and quicker in installation and cost effective,fixing with longer screws on the roof ribs. Solar panels can be directly fixed onto this U Rail.


Product Detail

Product Tags

Advantages

·High solar module compatibility
·Safety and reliability
·Easy installation
·Rust-resistance

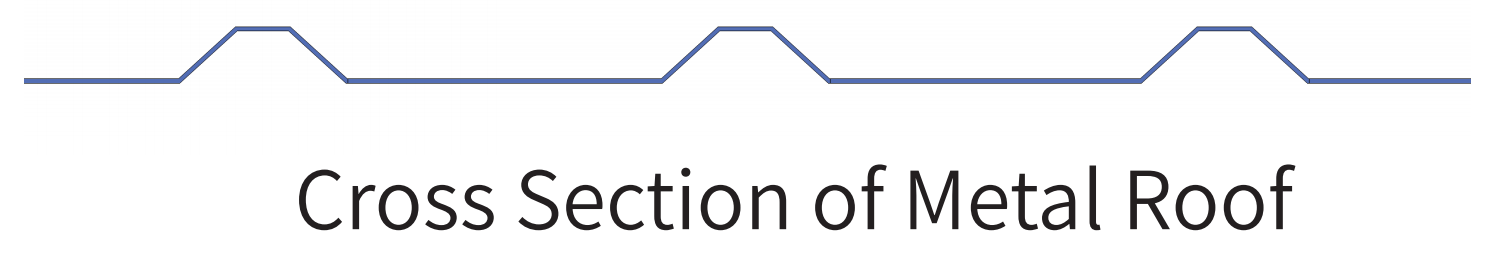

Cross Section of Metal Roof

w5

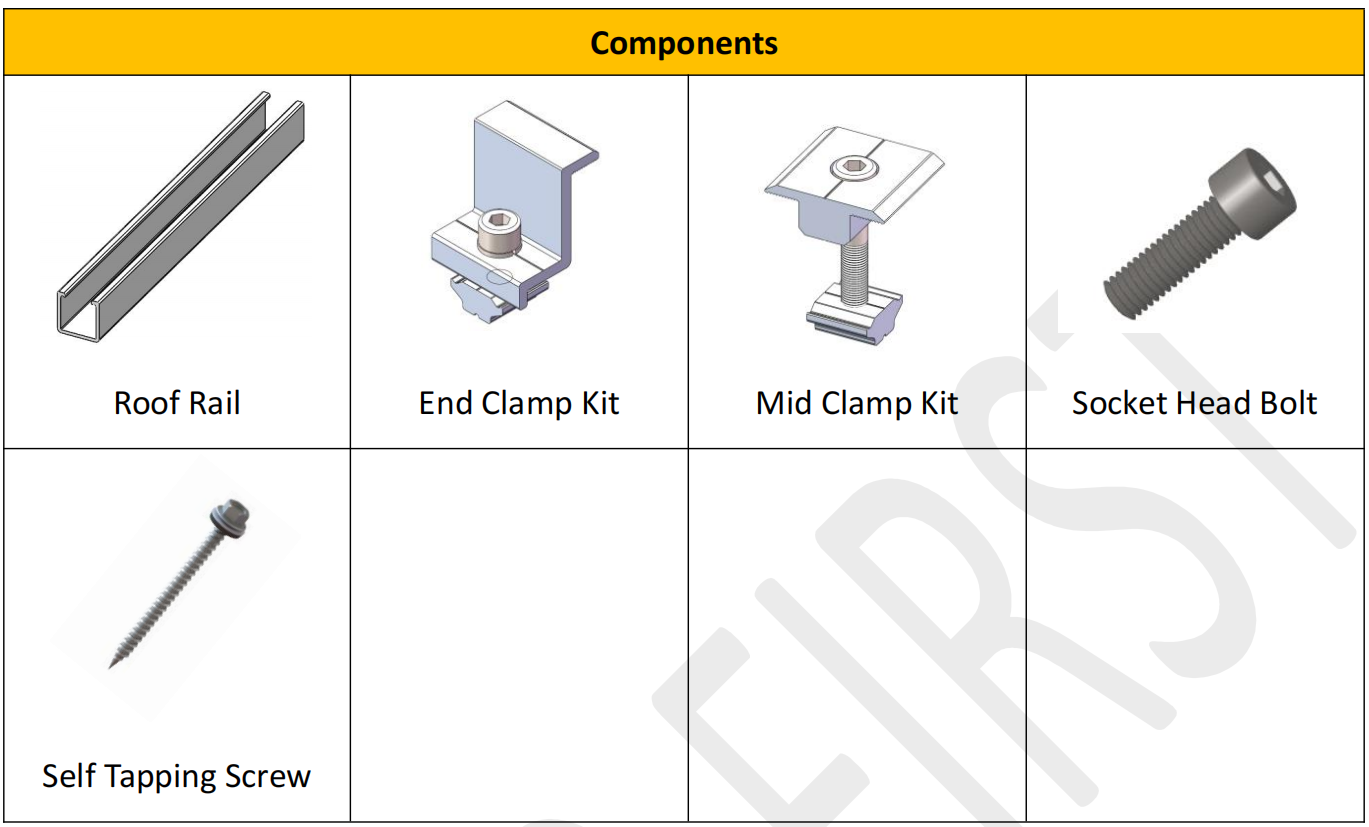

Components

w6

Technical Details

Installation site Metal Roof
Wind Load Up to 60m/s
Snow Load 1.4kn/m2
Tilt Angle Parallel to roof surface
Standards AS/NZS 1170, JIS C8955:2017, GB50009-2012, DIN 1055, IBC 2006
Material AS/NZS 1170, JIS C8955:2017, GB 50009-2012, DIN 1055, IBC 2006
Warranty 10 Years Warranty

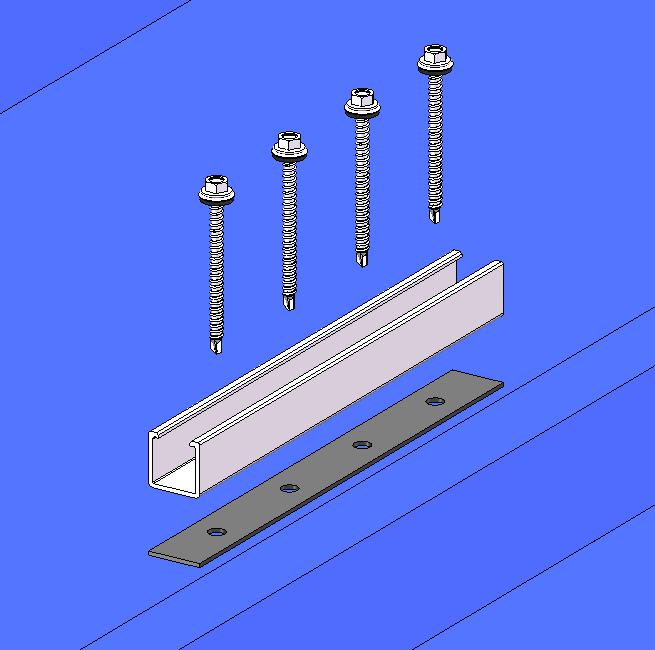

Installation Guide

w7
w8

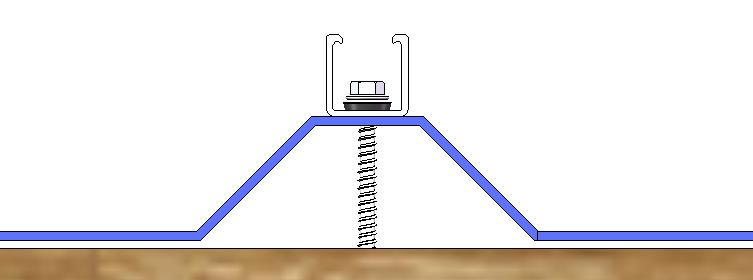

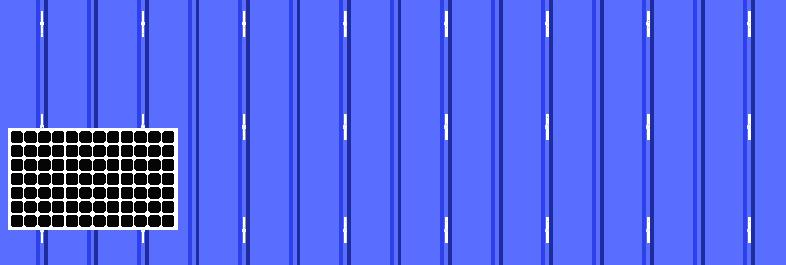

Installation of U Rail

w9
w10

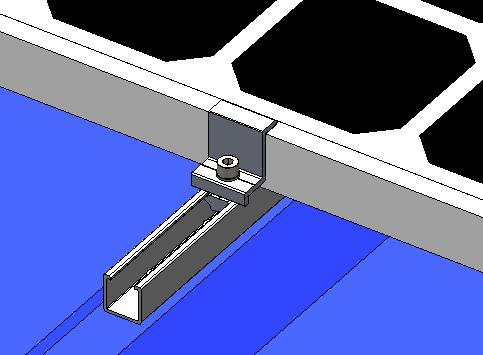

Installation of Solar Panels

w11

The overview of finished installation

Project Reference
