Trapezoid Roof Clamps – SF Metal Roof Mount

Short Description:

Solar First Roof standing seam clamps mounting structure is widely applied for commercial and residential roof project. The system designed for pitch tin roof, which is very popular with customers, the wide range of different components make it possible to fasten almost all sorts of module.

Solar Fist Trapezoid Roof Clamp designed for trapezoid metal sheet roof installation,easy and fast in installation, universal Solar Rack/Rail and Solar Module Clamps,available in different types,made of aluminum or stainless steel 304, customizable.


Product Detail

Product Tags

Advantages

·High solar module compatibility
·Safety and reliability
·Easy installation
·Rust-resistance

SF-RC Roof Clamp Series

q5

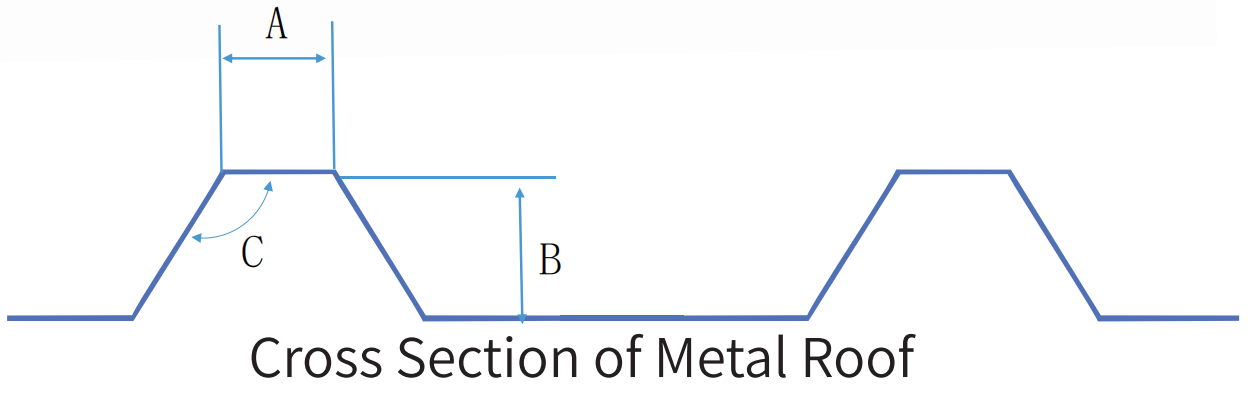

Cross Section of Metal Roof

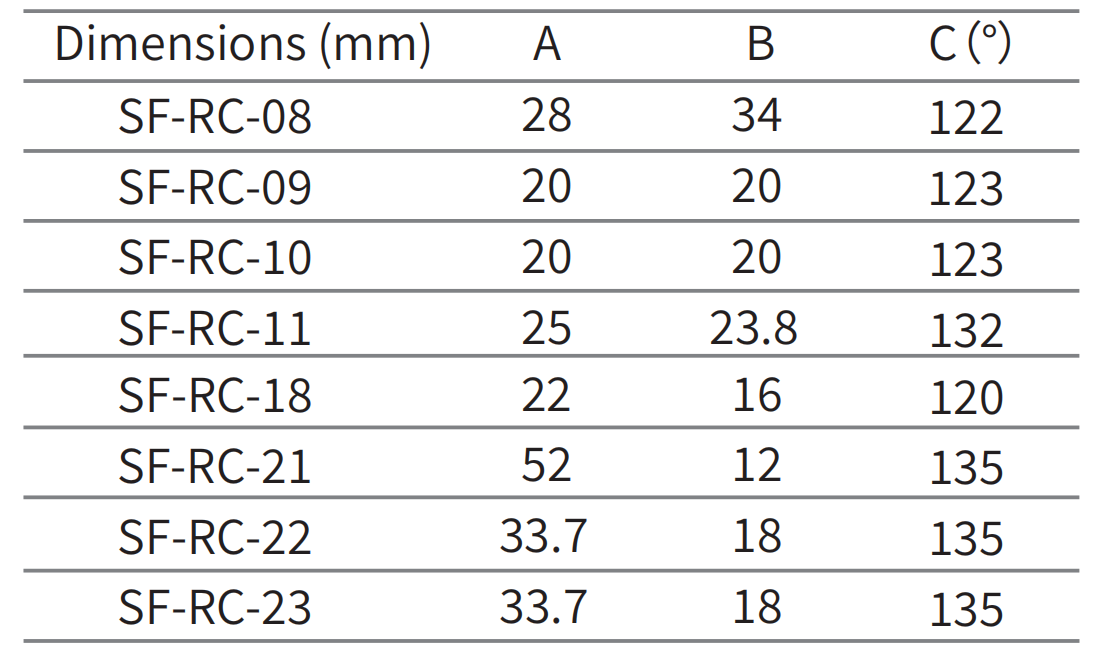

q6
q7

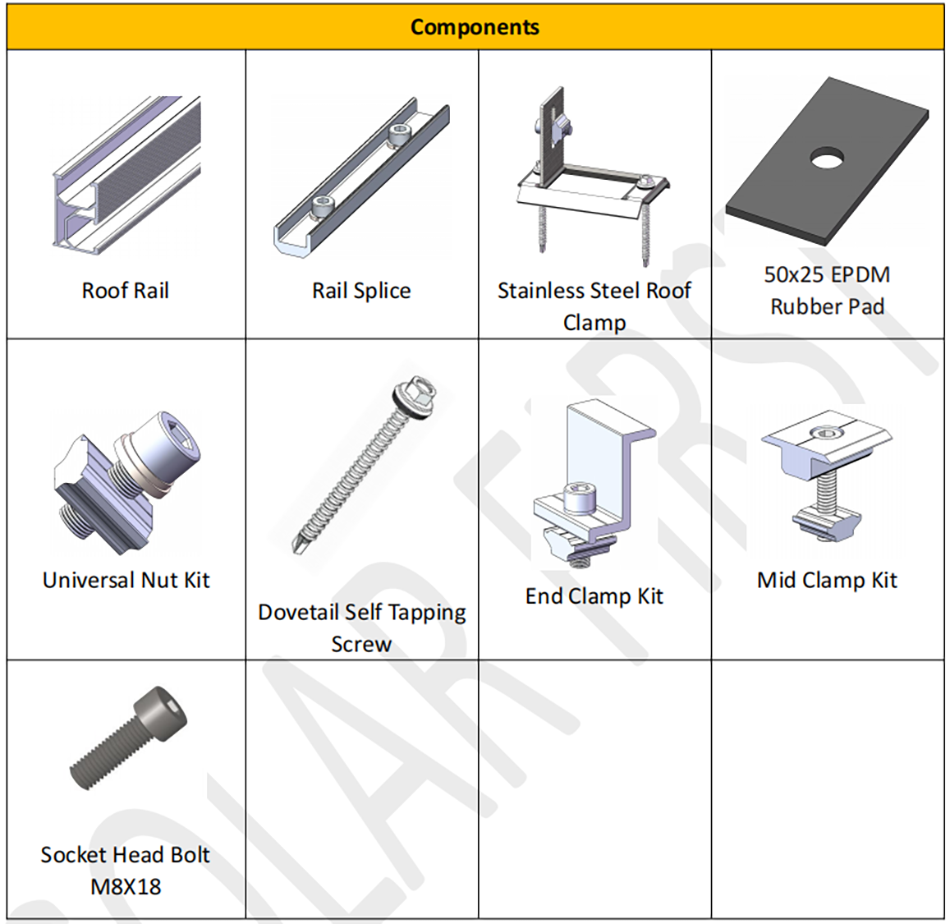

Components

q8

Technical Details

Installation site Metal Roof
Wind Load Up to 60m/s
Snow Load 1.4kn/m2
Tilt Angle Parallel to roof surface
Standards AS/NZS 1170, JIS C8955:2017, GB50009-2012, DIN 1055, IBC 2006
Material AS/NZS 1170, JIS C8955:2017, GB 50009-2012, DIN 1055, IBC 2006
Warranty 10 Years Warranty

Installation Guide

q9

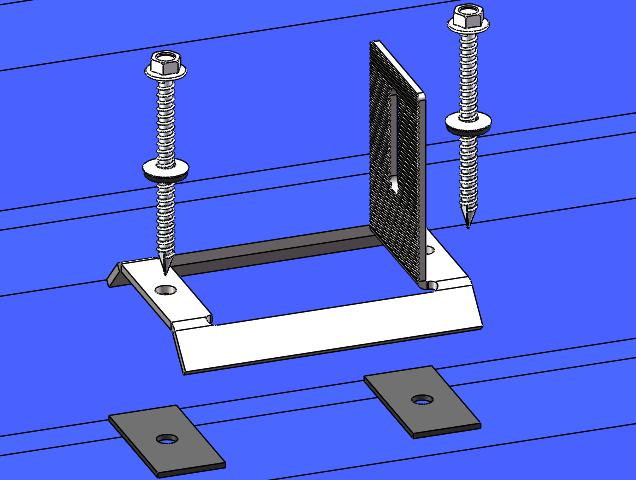

Installation of Roof Clamps

q10

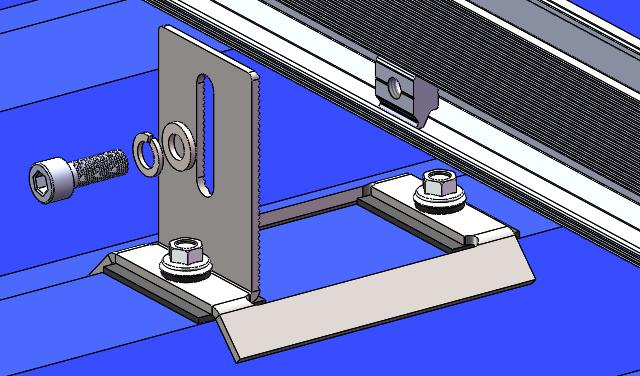

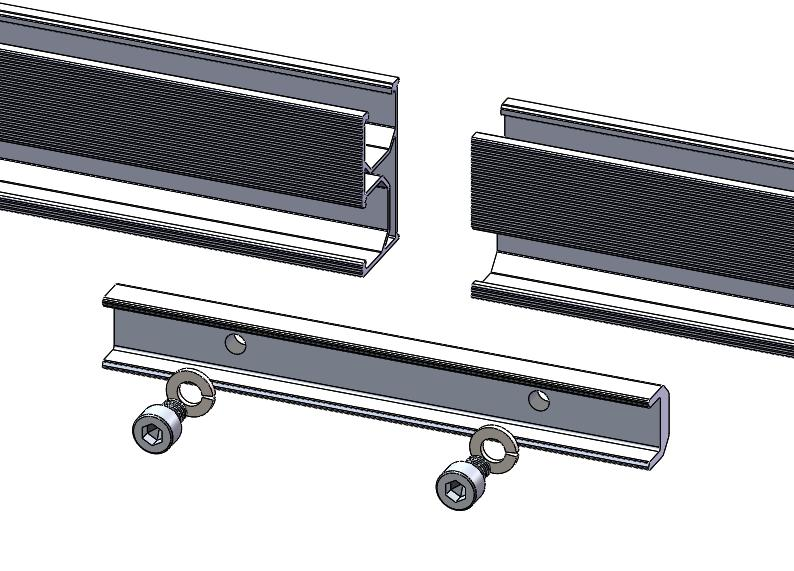

Use of Rail Connectors

q11

Installation of Rails

q12

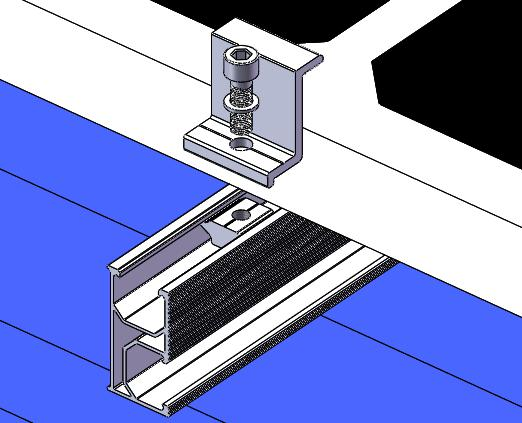

Installation of Solar Panels

q13

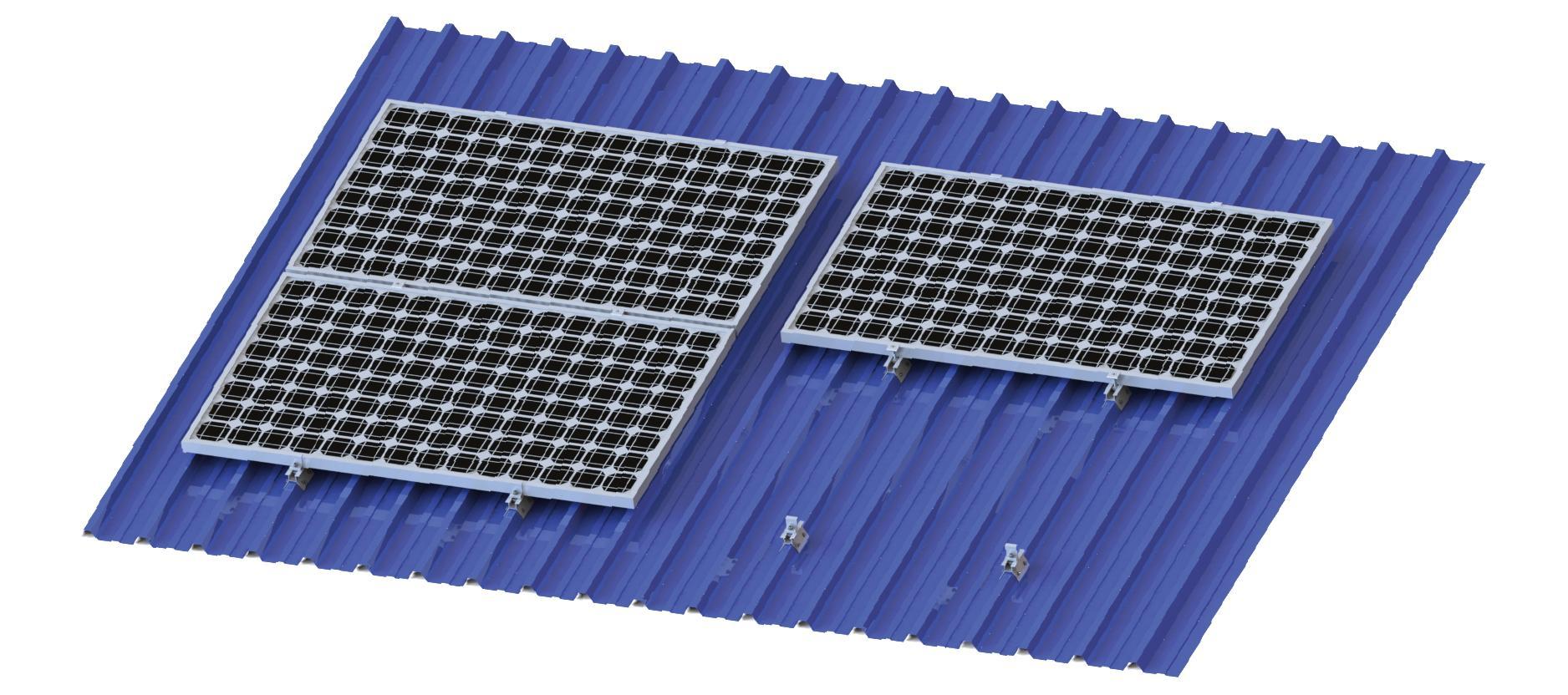

The overview of finished installation

Project Reference

xj7
