Solar Carport Steel Cantilever Carport PV Waterproof

Short Description:


Product Detail

Product Tags

Introduction

Solar First Carport System typically designed for residential and commercial use, available with water proof and non water proof design.Our Solar Carport Structure is able to accommodate virtually any solar panel style and manufacturer and made of HDG steel or full anodized aluminum.

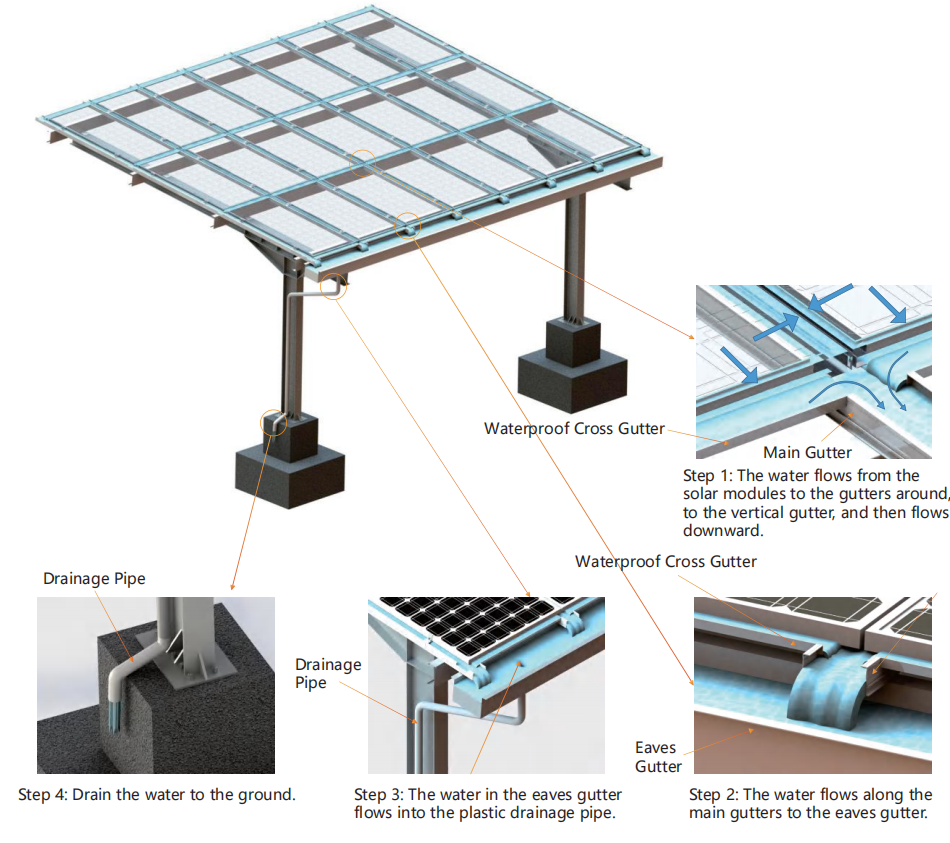

Drainage Of Water On Carport

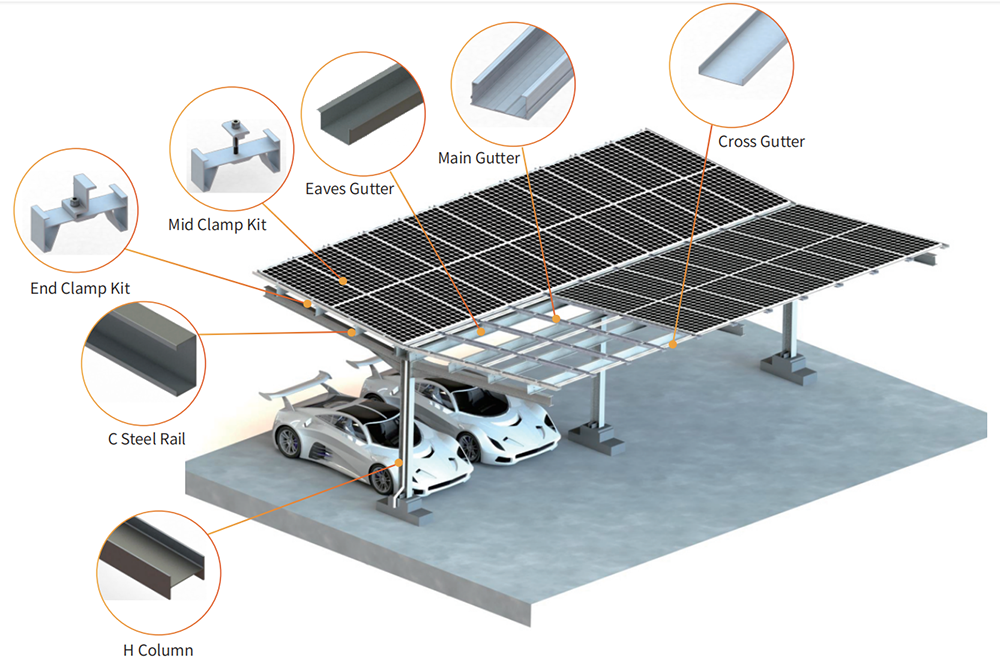

xml1

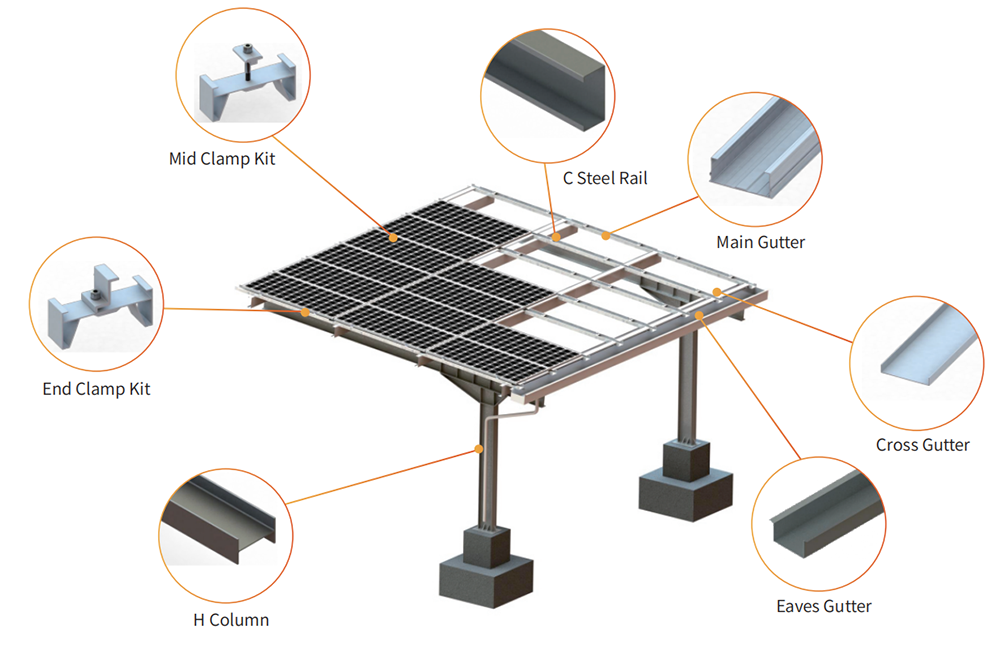

xml2
xm13

Technical Detail

Installation       Ground
Foundation       Concrete
Wind Load       up to 60m/s
Snow Load       1.4kn/m2
Tilt Angle       0~10°
Standards       AS/NZS1170, GB50009-2012, DIN 1055, IBC 2006
Material      Anodized AL6005-T5, Hot Dip Gavanized Steel , SUS304
Warranty      10 Years Warranty

Characteristic

·Built more durable than similar units using thick wall steel/aluminum mount.
·Ideal for parking areas.
·Minimal maintenance required.
·Low cost foundations.
·Standard universal mounting rails to fit any commercially available PV panel.
·Modular to allow for multiple configurations dependant on field layout.
·Each system is prefab designed for quick installation, design requires no onsite alignment or welding.

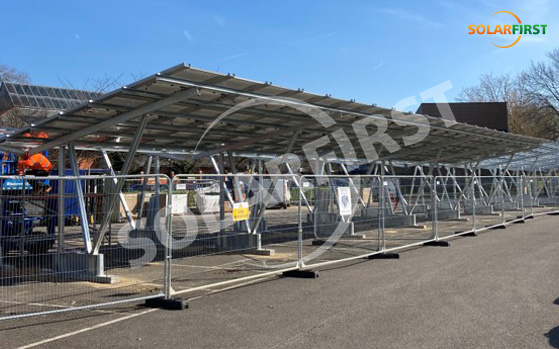

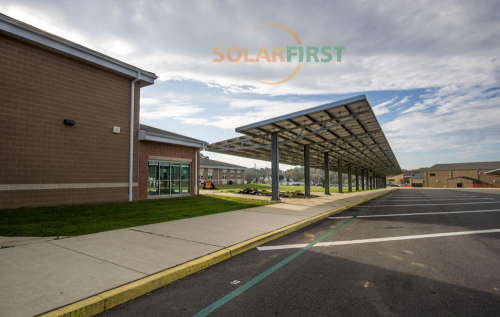

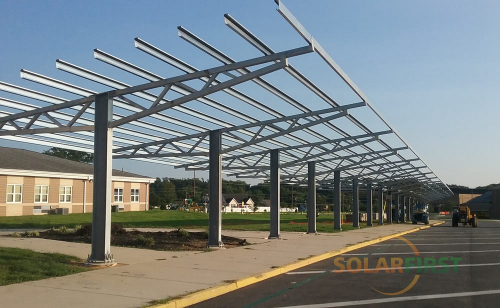

Project Reference

xml4
xml6
