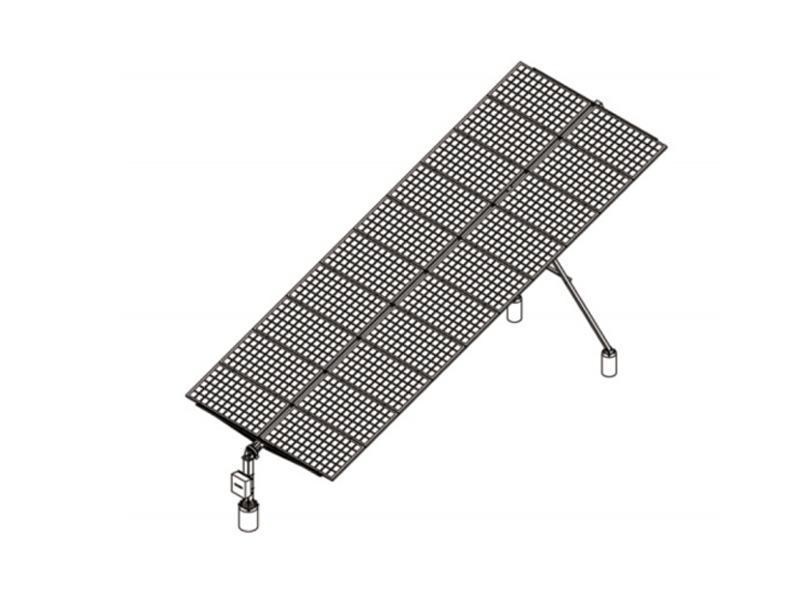

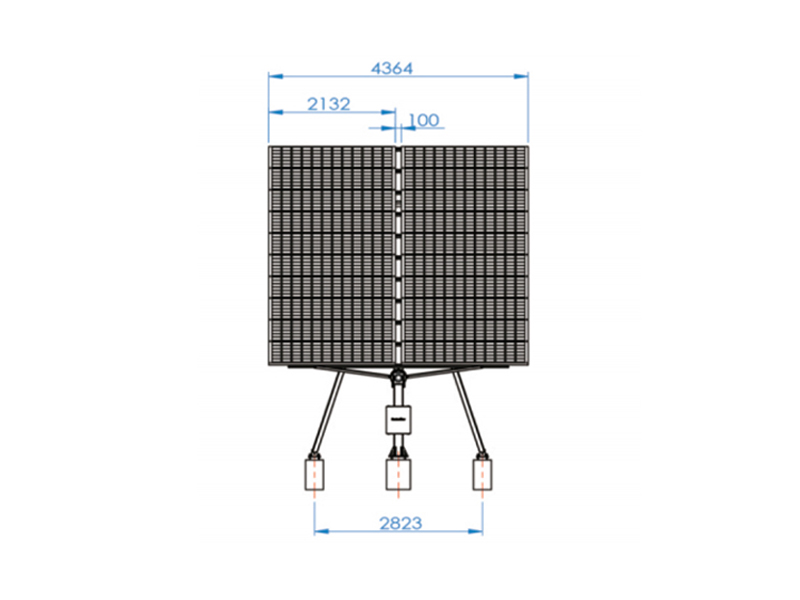

Tilt Series Tilted Solar Tracking Systems
| High Stability | Triangle supports and simple structure for higher stability |
| Reliability | The independent control system help to monitor the operation, find fault points in time, and reduce power output loss |
| Smart Tracking | Adjust tilt angle smartly and timely acording to terrain and weather data to increase power output |
| Tracking Technology | Tilted Single Axis Tracker |
| System Voltage | 1000V / 1500V |
| Tracking Range | 士45° |
| Inclination Angle | Azimuth 5-25° |
| Working Wind Speed | 18 m/s (Customizable) |
| Max. Wind Speed | 40 m/s (ASCE 7-10) |
| Modules per Tracker | ≤20 Modules (Customizable) |
| Principal Materials | Hot-Dip Galvanized Q235B/Q355B / Zn-Al-Mg Coated Steel |
| Drive System | Slewing Drive |
| Foundation type | PHC / Cast-in-Place Pile / Steel Pile |
| Control System | MCU |
| Tracking Mode | Closed Loop Time Control + GPS |
| Tracking Accuracy | <2° |
| Communication | Wireless (ZigBee, LoRa); Wired (RS485) |
| Power Acquisition | External Supply / String Supply / Self-Powered |
| Auto Stow at Night | Yes |
| Auto Stow During High Winds | Yes |
| Optimized Backtracking | Yes |
| Protection Degree | IP65 |
| Working Temperature | -30°C~65°C |
| Anemometer | Yes |
| Power Consumption | 0.3kWh per day |
