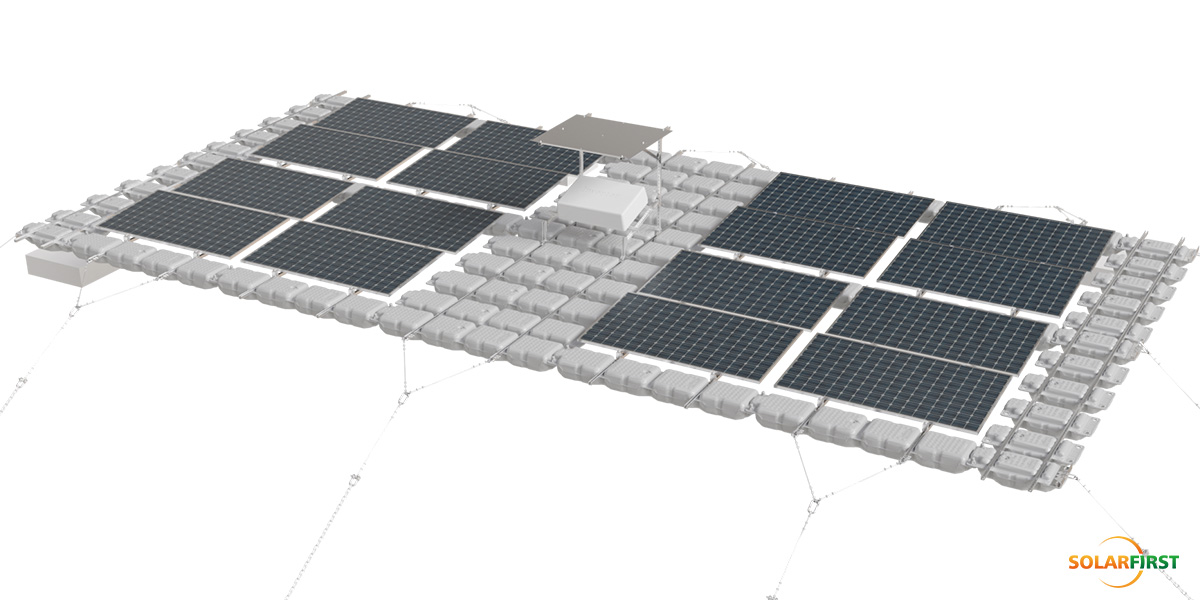

SF Floating Solar Mounting System (TGW03)

01 Product Description

The SF Floating Solar Mount delivers critical engineering advantages for aquatic PV installations.

Its structurally robust platform, engineered with precision buoyancy, ensures exceptional stability under dynamic wind and wave loads, guaranteeing operational safety and reliability. Constructed from corrosion and UV-resistant HDPE materials, the system offers superior defense against harsh aquatic environments for extended service life.

A modular approach streamlines logistics, installation, and maintenance, substantially lowering project time and costs. An additional ecological benefit is the significant reduction of water evaporation, promoting resource conservation. Suitable for lakes, reservoirs, and enclosed coastal waters, this solution enables high-density power generation while meeting the precise requirements of diverse, scalable PV systems.

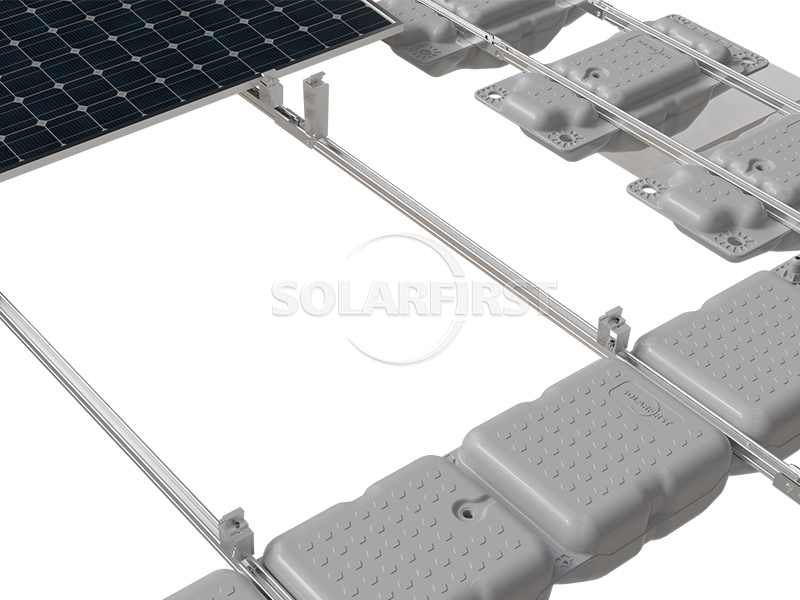

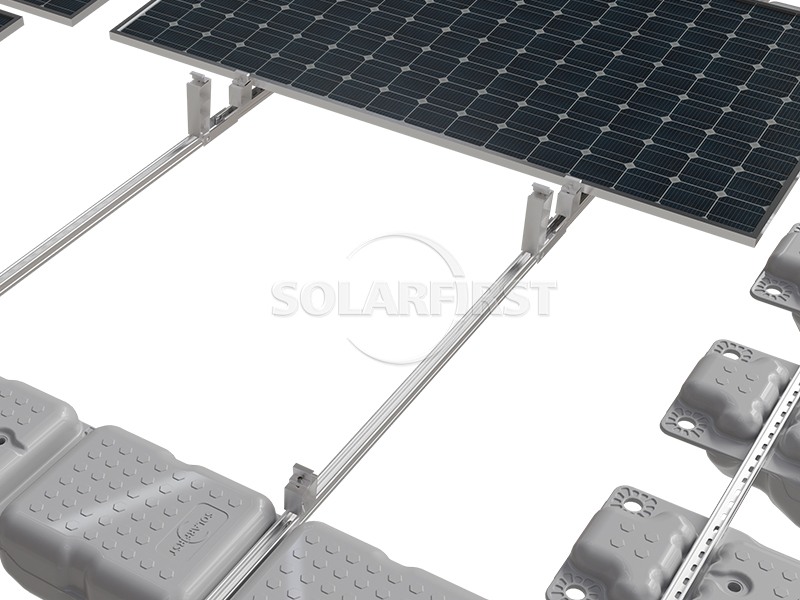

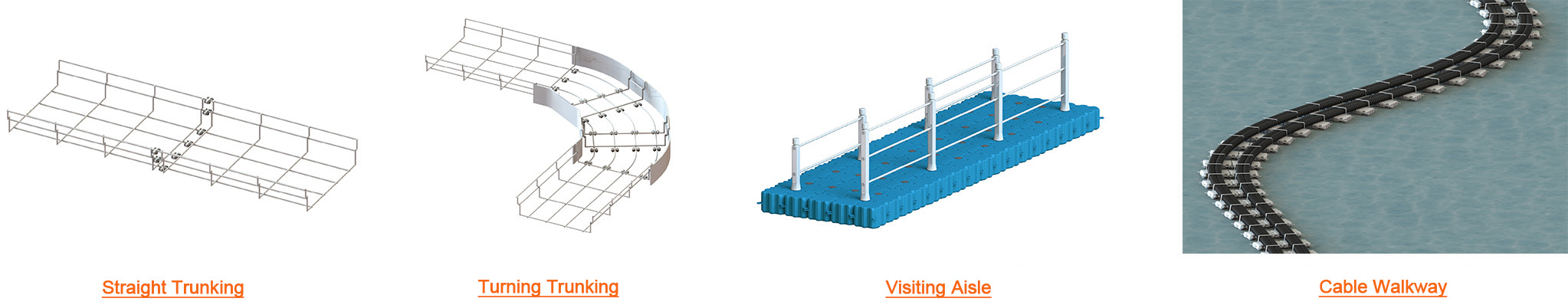

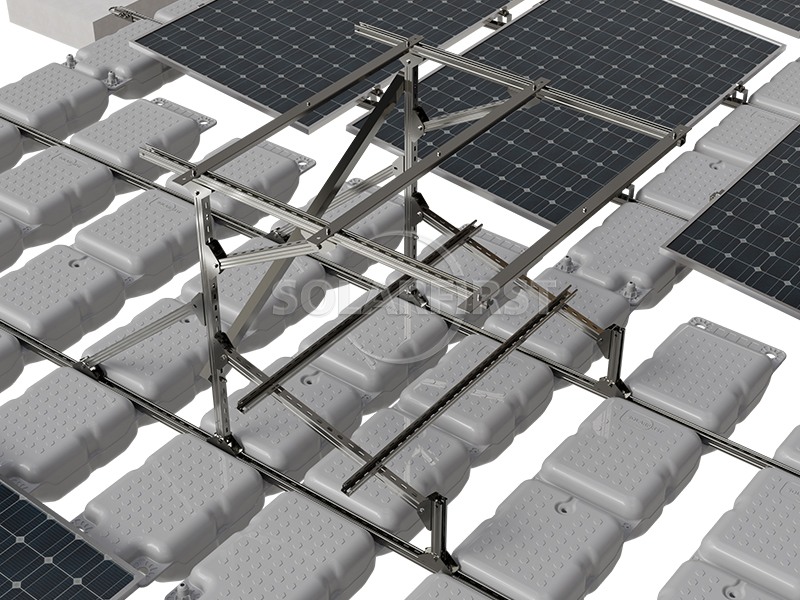

The floating platform includes HDPE floaters, mooring ropes and cables, inverter bracket. Visiting walkway, cable tray, and cable walkway are optional in the floating platform.

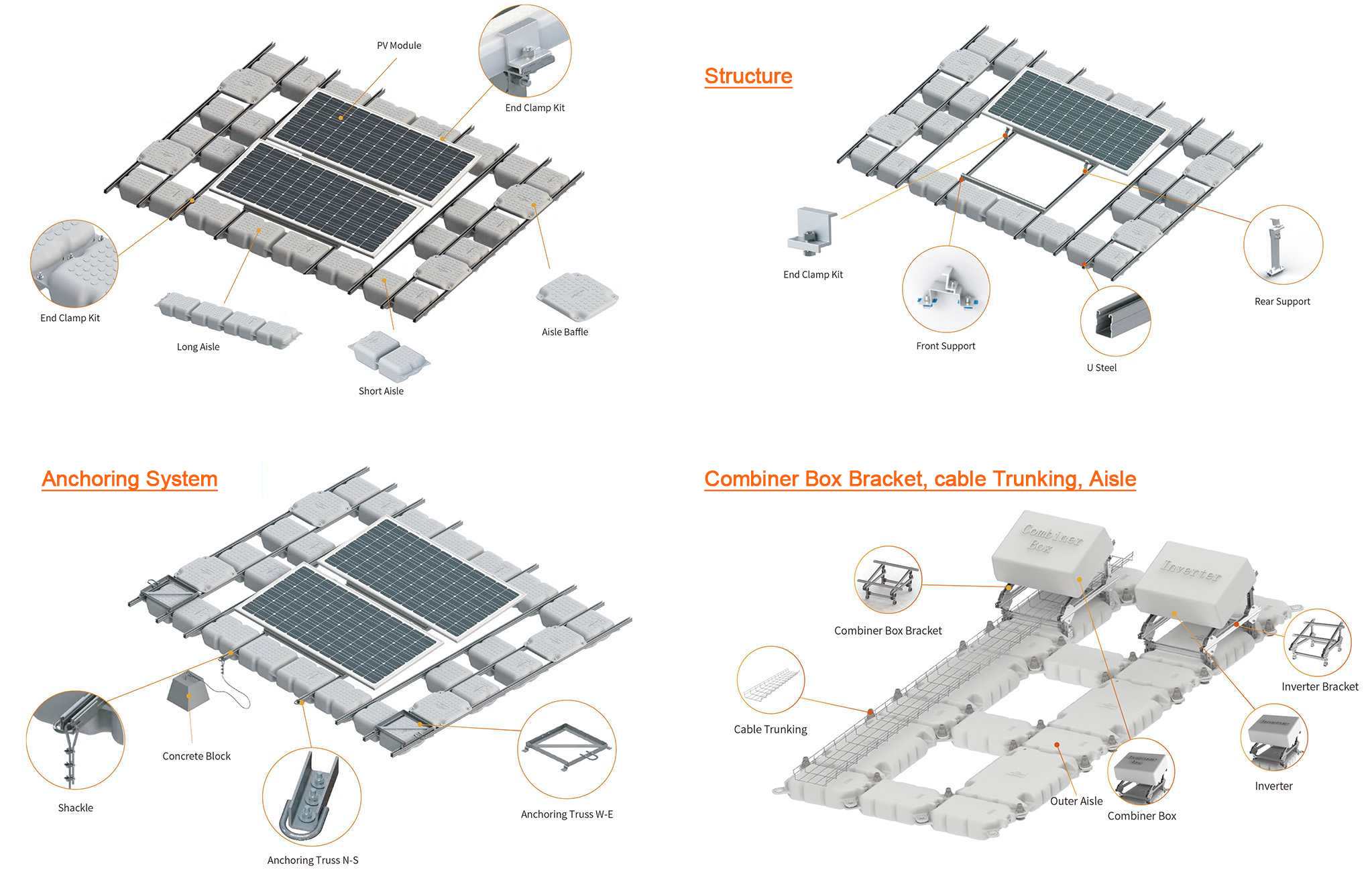

02 Accessory schematic diagram

03 Product Components

04 Core Engineering Parameters

05 Industry Application Scenarios

✔ Fishery photovoltaic complementary project: Fish ponds and aquaculture lakes, forming a three-dimensional model of "upper layer power generation and lower layer aquaculture"

✔ Offshore and Marine ranches: Anti-corrosion floating bodies must be adopted

✔ Industrial water areas: industrial wastewater ponds, sedimentation areas in mining areas

✔ Reservoirs: Mainly floating type (such as the deep water area in the middle of the reservoir) or pile foundation fixed type (shallow water area near the shore)

✔ Urban ecological landscapes: rivers, landscape lakes, and regulating tanks of sewage treatment plants

06 Professional technical services

▶ Solution design and structural analysis:

Provide layout drawing, customized solution drawing, load calculation reports (including wind load, snow load, buoyancy analysis) or assembly drawing.

▶ On-site survey:

Engineers conduct on-site survey water and soil conditions with local hydrologic and soil investigation professionals.

▶ Installation training and guidance:

Provide installation videos, installation manuals and on-site installation training to ensure safe and complete installation.

07 Technical verification system

Provide standardized installation videos, operation manuals and on-site technical guidance to ensure zero error in construction.

▶ Extreme environmental testing

• Pass the low-temperature impact at -40℃

• Salt spray corrosion (3,000 + hours)

• Extreme tests such as 60m/s hurricane simulation.

▶ Third-party certification

• We hold wind pressure, snow pressure, seismic resistance and material certification certificates issued by TUV, SGS and other institutions to ensure the compliance of global projects.

08 Packages & Shipping

International standard packaging; Goods are dispatched from Shanghai, Ningbo, Tianjin, Xiamen and Shenzhen ports in China.

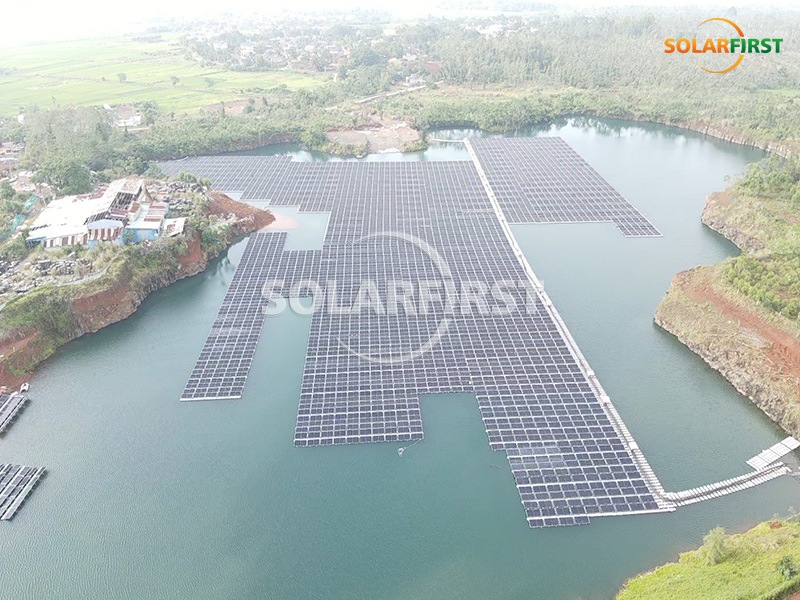

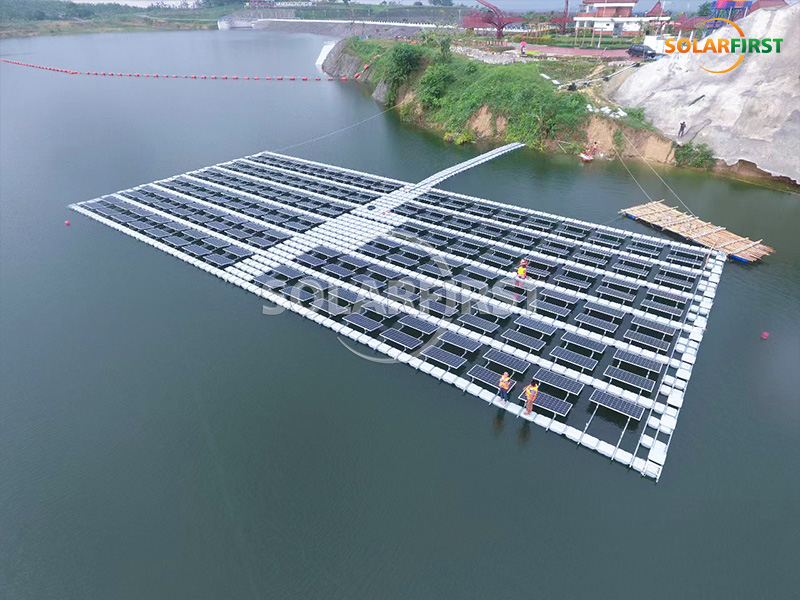

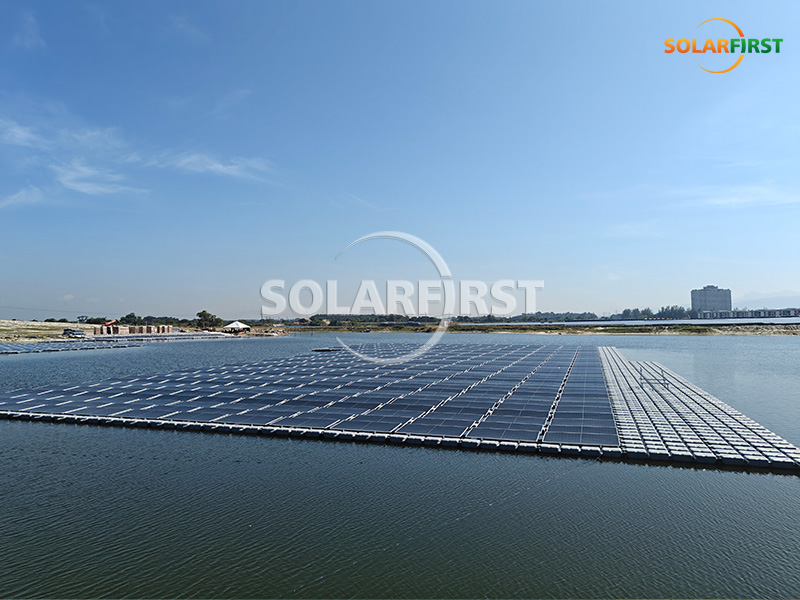

09 Project Case
