01 Product Description
SF-PVROOF02 BIPV Waterproof Shed (Aluminum) seamlessly integrates building structure with solar power generation, offering an innovative and eco-friendly alternative to traditional waterproof sheds. Designed to deliver reliable performance in diverse conditions, this system combines windproof, snowproof, waterproof, and light-transmitting functions with clean energy generation.
Featuring a compact and aesthetically polished structure, the shed is highly adaptable to various sites, including rooftops, metal roofs, and standalone installations. With 5 series and 48 cross-section options, it provides extensive customization to meet specific technical and decorative requirements.
Constructed with anodized aluminum for enhanced corrosion resistance and long-term stability, this shed withstands harsh weather conditions, supporting snow loads up to 35 cm and wind speeds of 42 m/s, compliant with EN13830 standards.
Whether used as a waterproof area for houses, villas, or rooftops—or as a fully independent structure—the SF-PVROOF02 combines versatility, durability, and sustainability in one advanced BIPV solution.

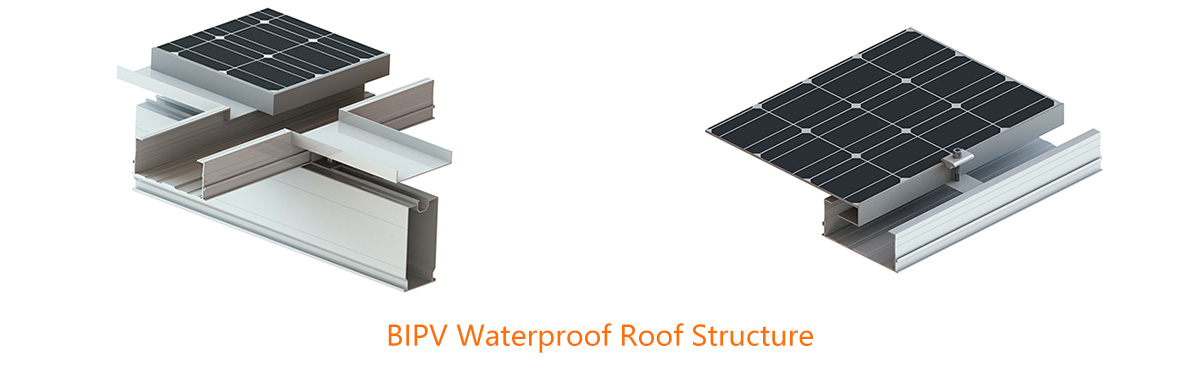

02 Accessory schematic diagram
03 Core Engineering Parameters
| Key indicators | Parameter details |
| Installation | BIPV Roof |
| Wind Load | up to 60m/s |
| Tilt Angle | ≥3° |
| Snow Load | 1.4kn/m² |
| Standards | GB50009-2012, EN1990:2002, ASCE7-05, AS/NZS1170, JIS C8955:2017,GB50017-2017 |
| Material | Anodized Aluminum AL6005-T5, Stainless Steel SUS304, Hot Dip Galvanized Steel |
| Warranty | 10 Years Warranty |

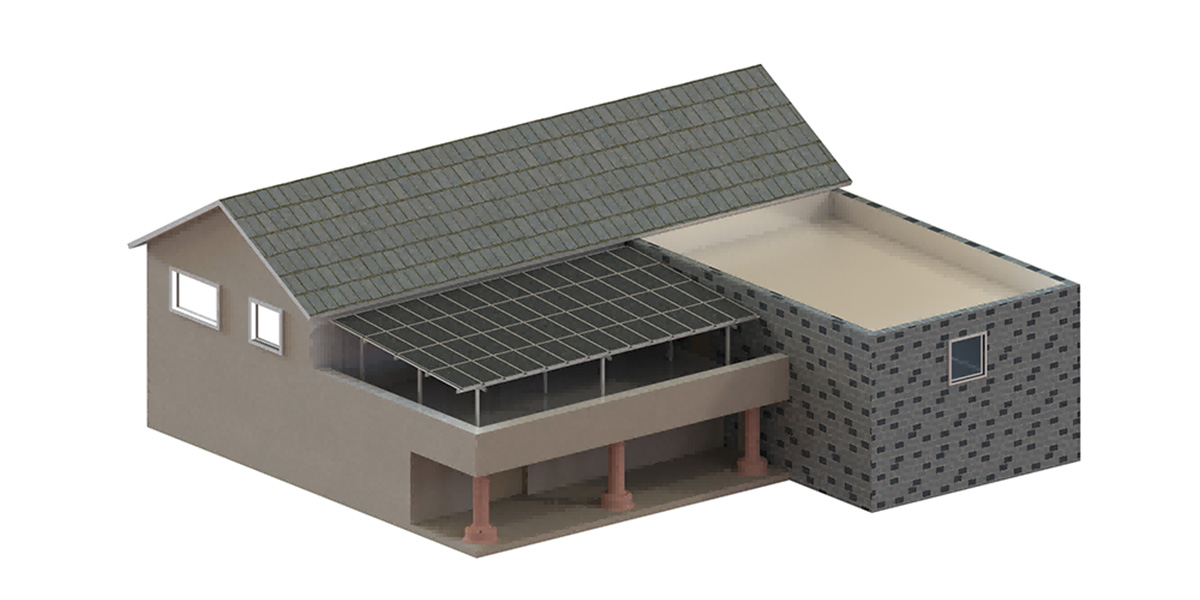

04 Industry Application Scenarios
✔ Waterproof canopy for villa terrace
✔ Factory roof extension shed
✔ Independent courtyard photovoltaic shed
05 Professional technical services
▶ Scheme design and structural analysis:
Provide customized load calculation reports (including wind load/snow load/seismic force analysis).
▶ On-site exploration support:
Engineers conduct on-site investigations of geological conditions (soil bearing capacity/slope/corrosive environment).
▶ Installation training and guidance:
Provide standardized installation videos, operation manuals and on-site technical guidance to ensure zero error in construction.
06 Technical verification system
Provide standardized installation videos, operation manuals and on-site technical guidance to ensure zero error in construction.
07 Technical verification system
▶ Extreme environmental testing
• Pass the low-temperature impact at -40℃
• Salt spray corrosion (3,000 + hours)
• Extreme tests such as 60m/s hurricane simulation.
▶ Third-party certification
• We hold wind pressure, snow pressure, seismic resistance and material certification certificates issued by TUV, SGS and other institutions to ensure the compliance of global projects.
07 Packages & Shipping
International standard packaging; Goods are dispatched from Shanghai, Ningbo, Tianjin, Xiamen and Shenzhen ports in China.

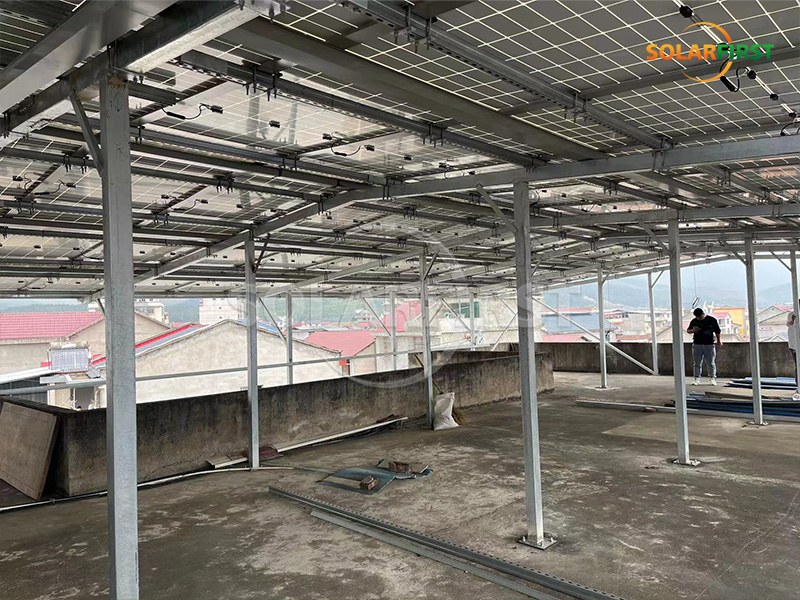

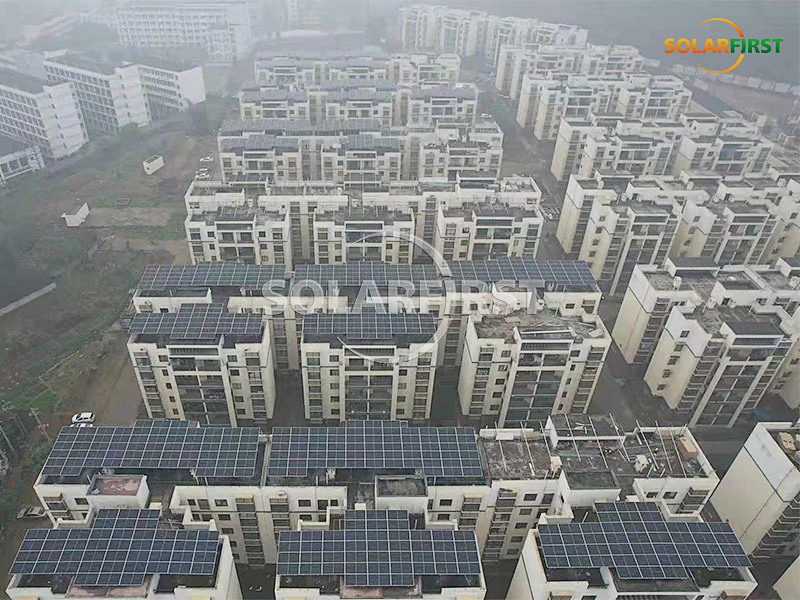

08 Project Case
The building-integrated photovoltaic (BIPV) roof system revolutionizes the traditional roof construction model, using solar modules as the core building envelope structure and directly replacing metal roof panels or tiles. The system adopts an innovative stepped drainage design. Through precise water guide channels and eaves water collection systems, it achieves 100% zero leakage guarantee (certified by EN 13830 dynamic water tightness), completely eliminating the risk of rainwater intrusion.
