SF Solar Garden Lights Outdoor

01 Product Description

The SF solar garden lamp adopts microwave radar intelligent sensing technology, automatically adjusting its brightness (21W light source power) according to moving objects. It is equipped with an embedded microcomputer control system to achieve intelligent management of charging and discharging. Equipped with a 48W solar panel and a 12V/80Ah lead-acid battery, it ensures 5-7 days of continuous operation in rainy weather. The lamp body is 4.3 meters high and has passed the 10-level wind resistance certification (27m/s).

Intelligent sensing energy saving

• Microwave radar detection: Automatically sense moving objects within 20 meters

• Three-level brightness adjustment
    ▫ No one status: 30% brightness (standby)
    ▫ Pedestrian and vehicle approach: 100% brightness (lasting for 30 seconds)
    ▫ Late-night slot: Automatically switch to soft light mode

Efficient energy management

• 48W monocrystalline silicon solar panel (conversion efficiency ≥21%)
• 80Ah lead-acid energy storage battery (cycle life ≥800 times)

• Charge and discharge efficiency: > 92% (Intelligent power regulation technology)

Structural design

• Detachable lamp post: The split structure is convenient for transportation and installation

• Wind resistance level 10:27m/s wind pressure test (GB/T 35205)
• Operating temperature: -20°C to 55°C (applicable to both cold and tropical regions)

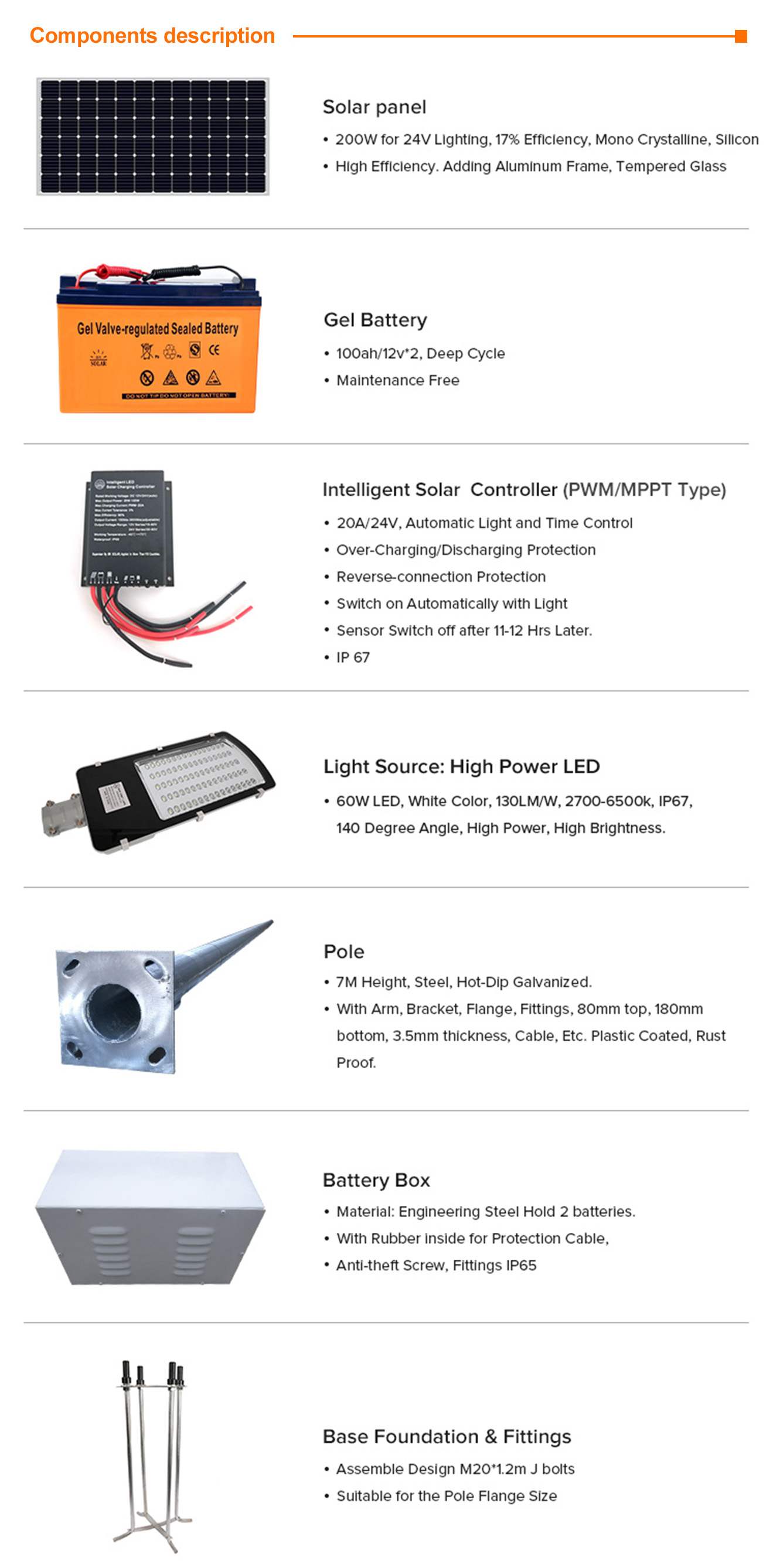

02 Accessory schematic diagram

03 Core Engineering Parameters

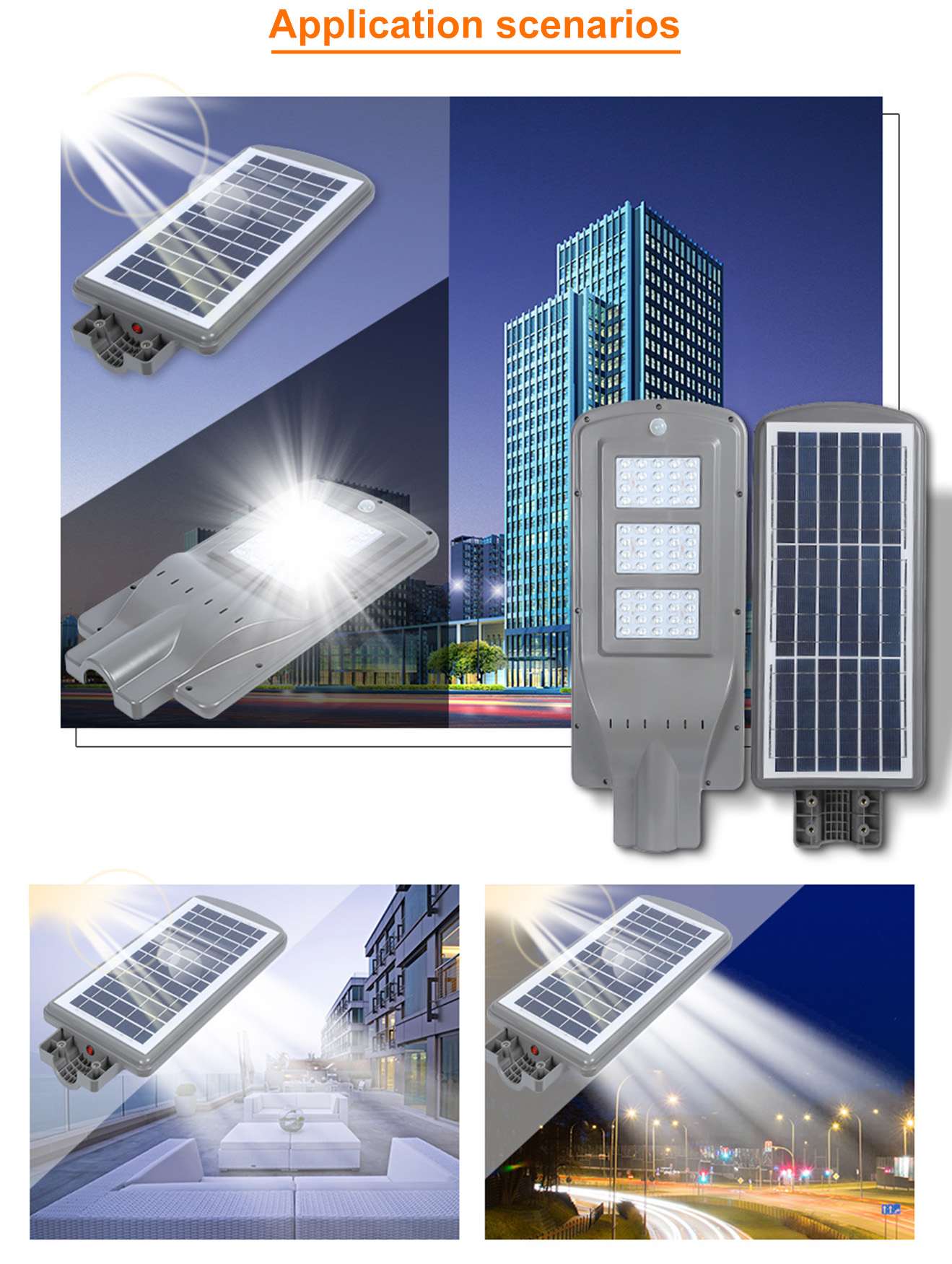

04 Industry Application Scenarios

✔ Residential community

✔ City Square

✔ Private garden

05 Professional technical services

▶ Scheme design and structural analysis:

Provide customized load calculation reports (including wind load/snow load/seismic force analysis).

▶ On-site exploration support:

Engineers conduct on-site investigations of geological conditions (soil bearing capacity/slope/corrosive environment).

▶ Installation training and guidance:

Provide standardized installation videos, operation manuals and on-site technical guidance to ensure zero error in construction.

06 Technical verification system

Provide standardized installation videos, operation manuals and on-site technical guidance to ensure zero error in construction.

▶ Extreme environmental testing

• Pass the low-temperature impact at -40℃

• Salt spray corrosion (3,000 + hours)

• Extreme tests such as 60m/s hurricane simulation.

▶ Third-party certification

• We hold wind pressure, snow pressure, seismic resistance and material certification certificates issued by TUV, SGS and other institutions to ensure the compliance of global projects.

07 Packages & Shipping

International standard packaging; Goods are dispatched from Shanghai, Ningbo, Tianjin, Xiamen and Shenzhen ports in China.

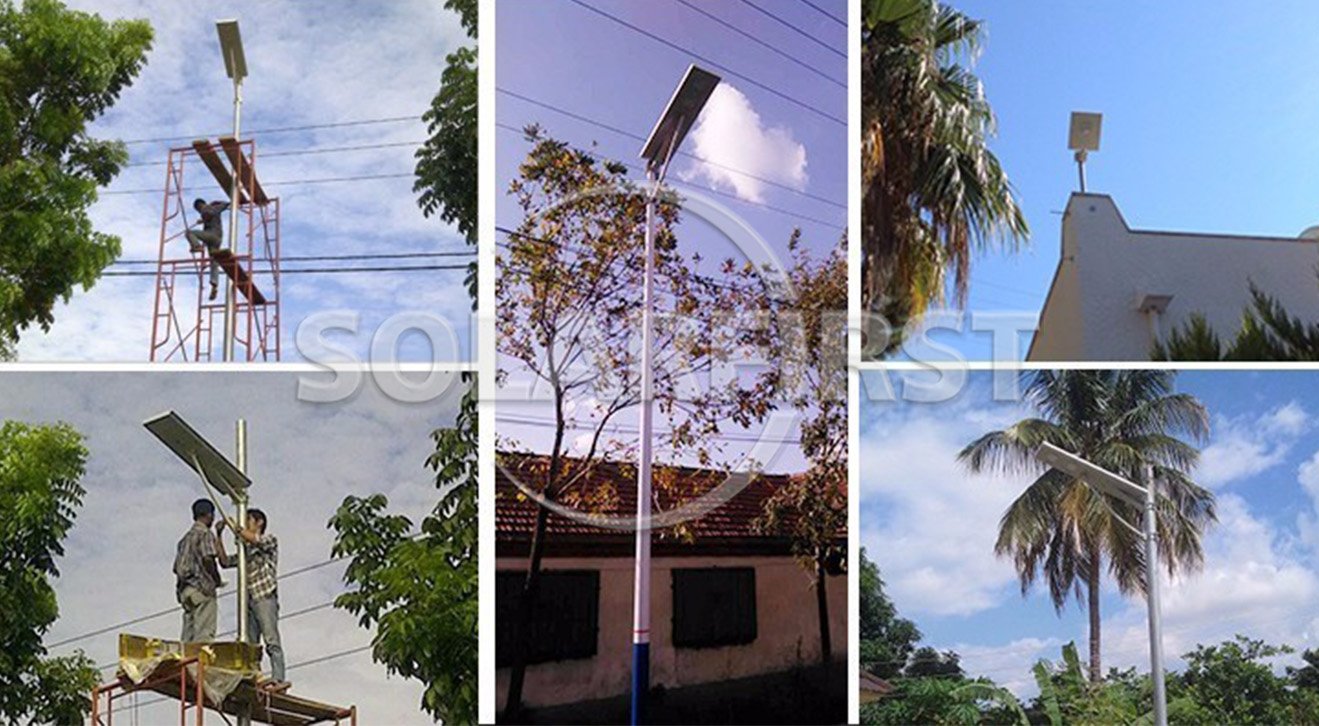

08 Project Case
