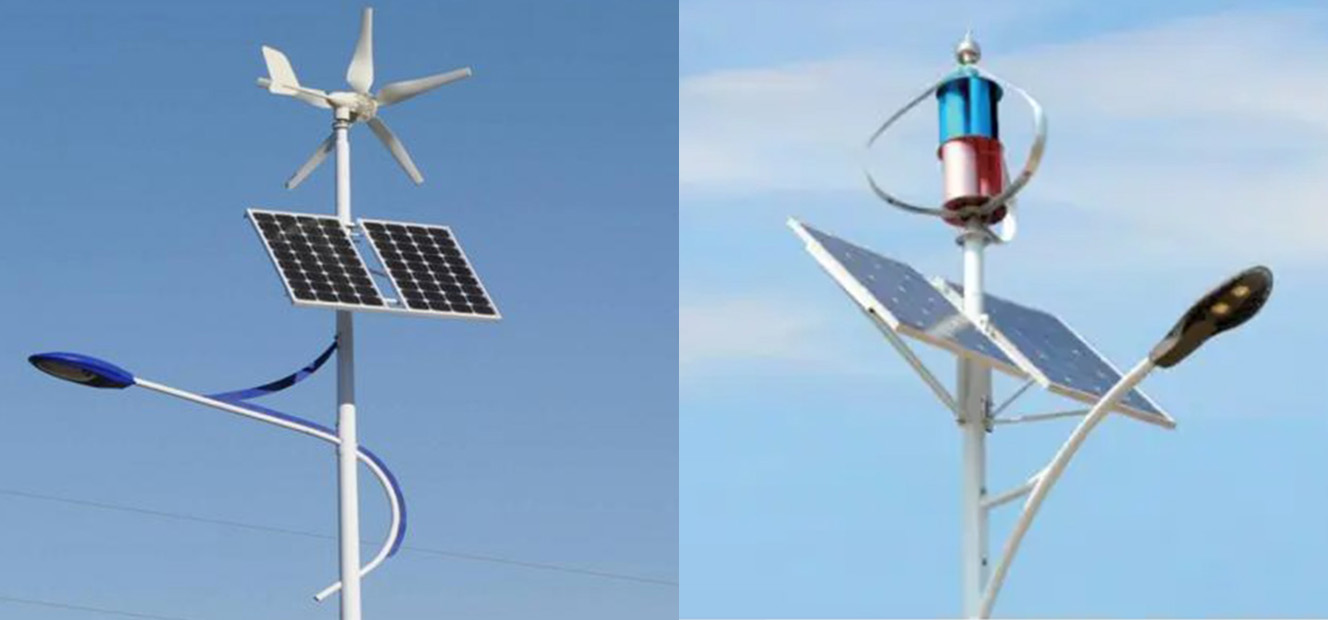

SF Wind-solar Hybrid Street Light

01 Product Description

The wind-solar hybrid solar street lamp system integrates dual energy inputs of photovoltaic panels and wind turbines, achieving three intelligent charging modes:

1. Pure light mode: When there is sunlight but no wind, the solar panels charge independently

2. Pure wind mode: When there is wind but no light, the wind turbine charges independently

3. Dual charging mode: Coordinated charging when both wind and solar power are excellent

    Optimized specifically for areas with an average annual wind speed of ≥4m/s, it completely resolves the pain point of unstable power supply from a single energy source.

Energy redundancy design

• Single-day battery life without light: ≥3 nights (measured wind speed: 4m/s)

• Single-day windless endurance: ≥2 nights (measured sunlight duration: 4 hours)

Geographical adaptability

✔ Coastal high-wind area  ✔ Plateau strong-sunshine area  ✔ Monsoon climate zone

Installation benefits

• Zero cable laying: Save pipeline costs by 30-50 yuan per meter
• Modular hoisting: Single lamp construction ≤30 minutes

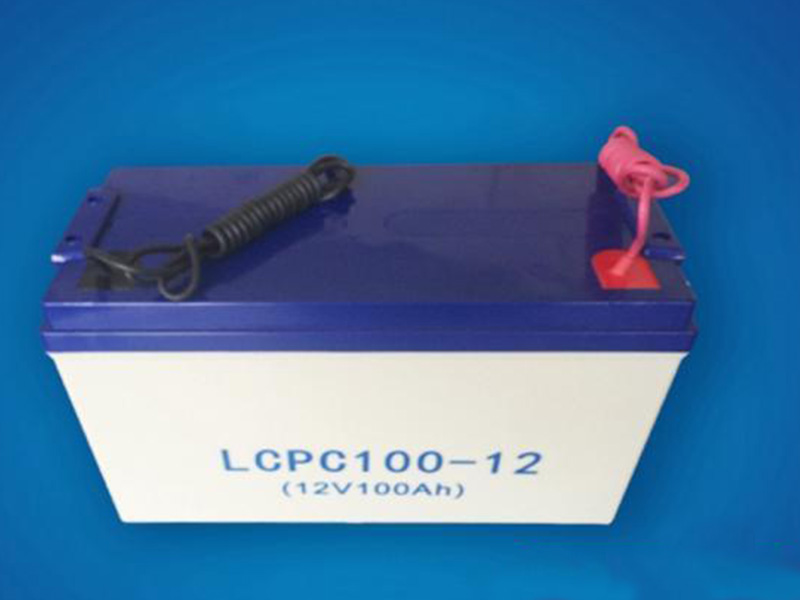

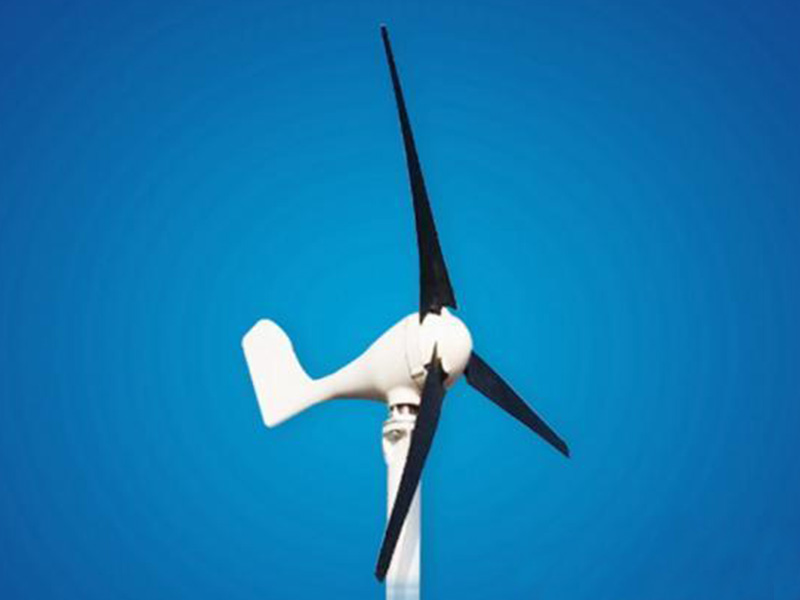

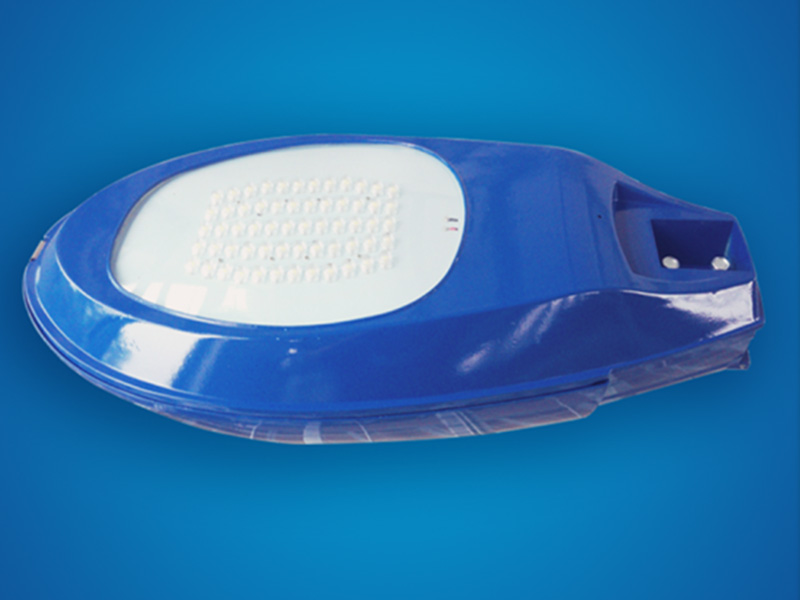

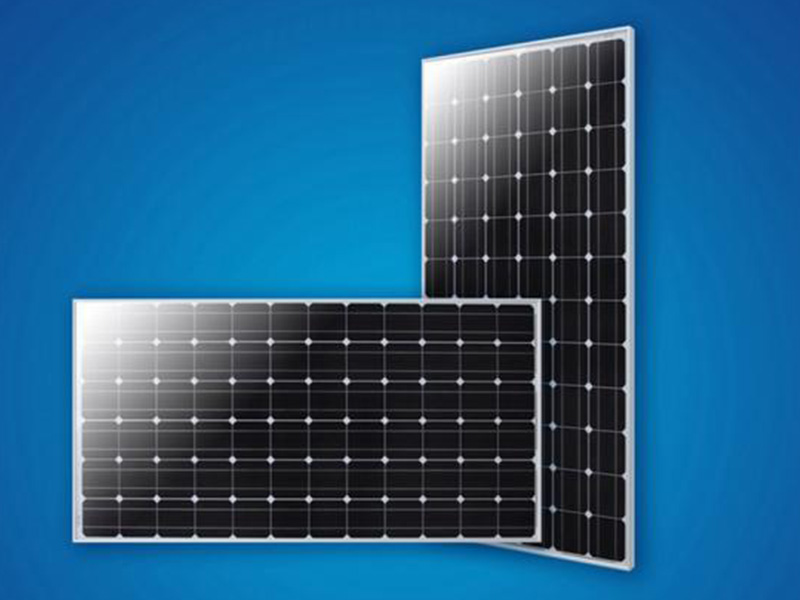

02 Accessory schematic diagram

03 Core Engineering Parameters

04 Industry Application Scenarios

✔ Rural road

✔ Pastoral areas and grasslands

✔ Islands and coastal areas
✔ Mountain and plateau roads
✔ Desert and Gobi areas

05 Professional technical services

▶ Solution design and structural analysis:

Provide customized solution drawing, load calculation reports (including wind load/snow load/seismic force analysis) or assembly drawing.

▶ On-site survey:

Engineers conduct on-site investigations ground conditions with local soil investigation professionals.

▶ Installation training and guidance:

Provide installation videos, installation manuals and on-site installation guidance to ensure safe and complete installation.

06 Technical verification system

Provide standardized installation videos, operation manuals and on-site technical guidance to ensure zero error in construction.

▶ Extreme environmental testing

• Pass the low-temperature impact at -40℃

• Salt spray corrosion (3,000 + hours)

• Extreme tests such as 60m/s hurricane simulation.

▶ Third-party certification

• We hold wind pressure, snow pressure, seismic resistance and material certification certificates issued by TUV, SGS and other institutions to ensure the compliance of global projects.

07 Packages & Shipping

International standard packaging; Goods are dispatched from Shanghai, Ningbo, Tianjin, Xiamen and Shenzhen ports in China.

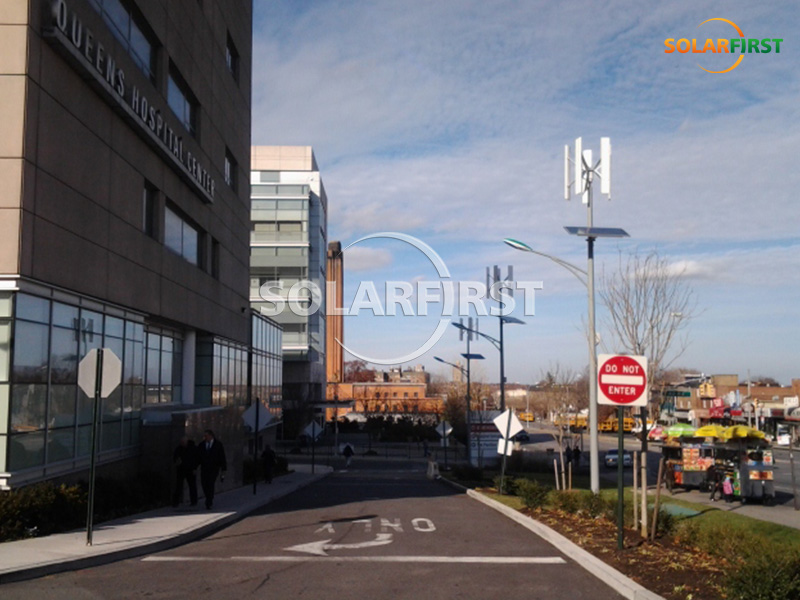

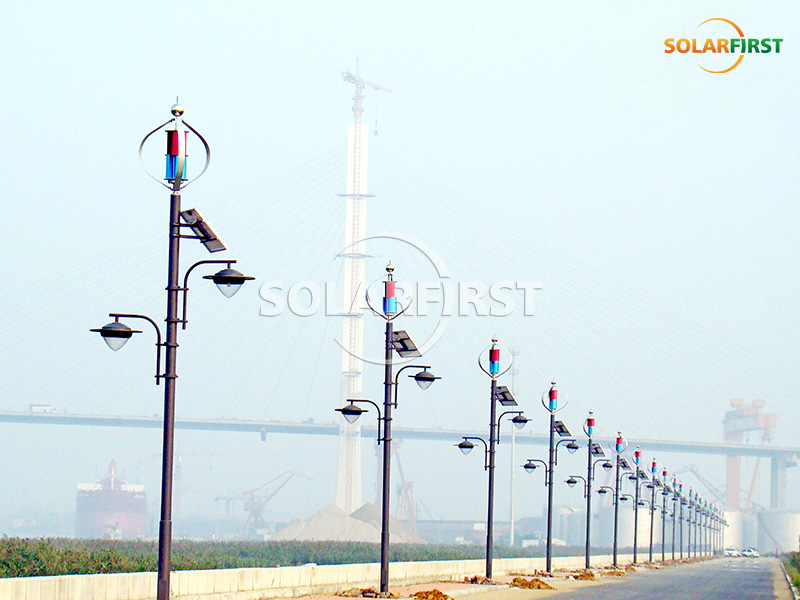

08 Project Case
