Widely used structure, stable, convenient to install, welcomed by the customer. Recommended environment: Low snow load and wind load.
One-Stop Global Solar Module Mounting Structure Supplier
Color :
Natural silver（Colored according to customer requirements）Certification :
Anodized Aluminum 6005-T5Material :
CE, ISO 9001, SGS01 Product Description

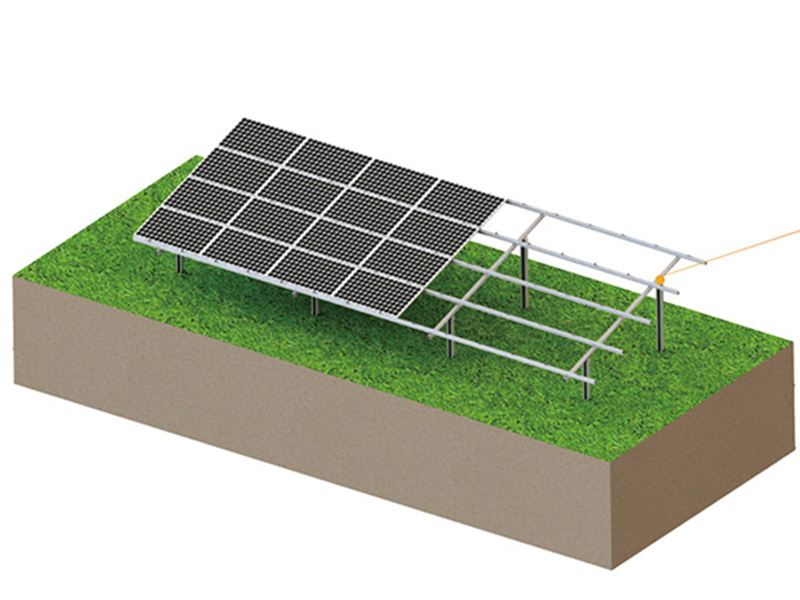

This solar module mounting system is a highly anti-corrosion mounting structure for ground installation with its aluminum alloy 6005 and 304 stainless steel material .
The beams and supports will be pre-assembled on our factory before delivery, to save on site working time. Special base plate design ensures adjustable range on height and front-back direction, to adapt installation site.
Different structure type will be chosen according to site conditions and load requirements.

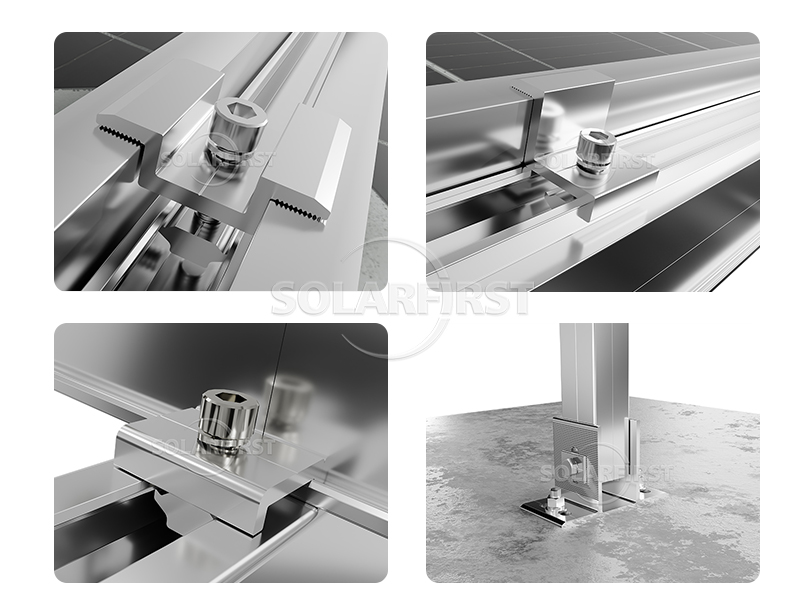

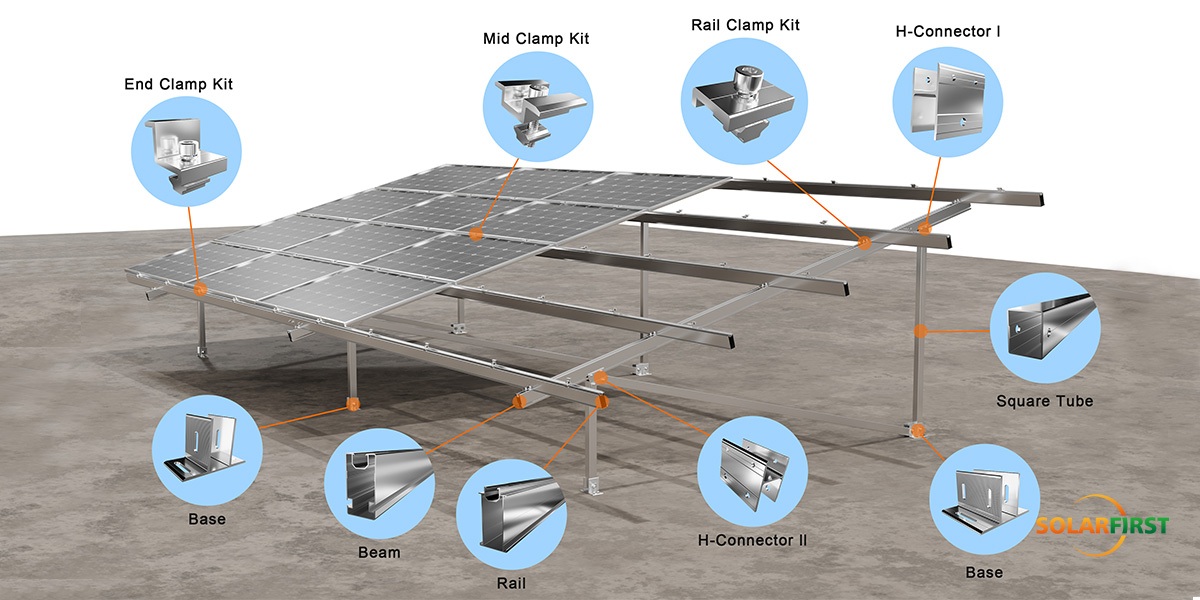

02 Accessory schematic diagram

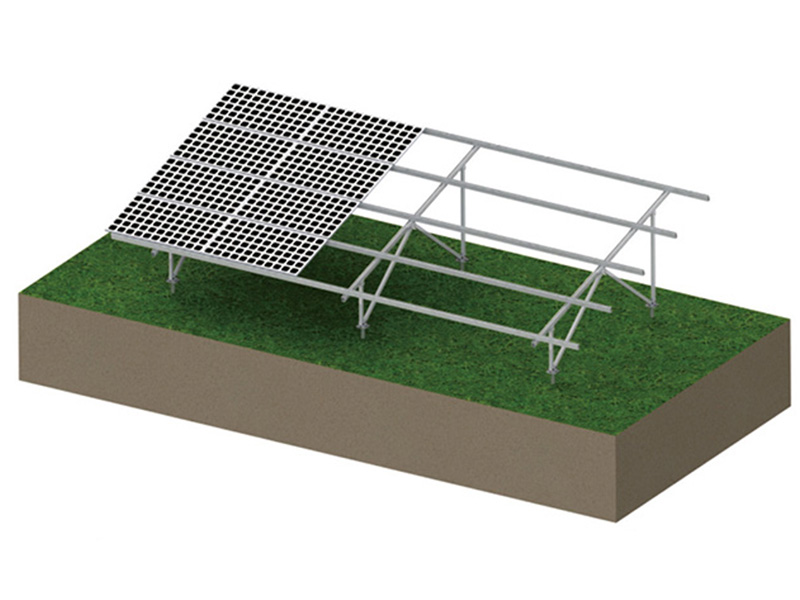

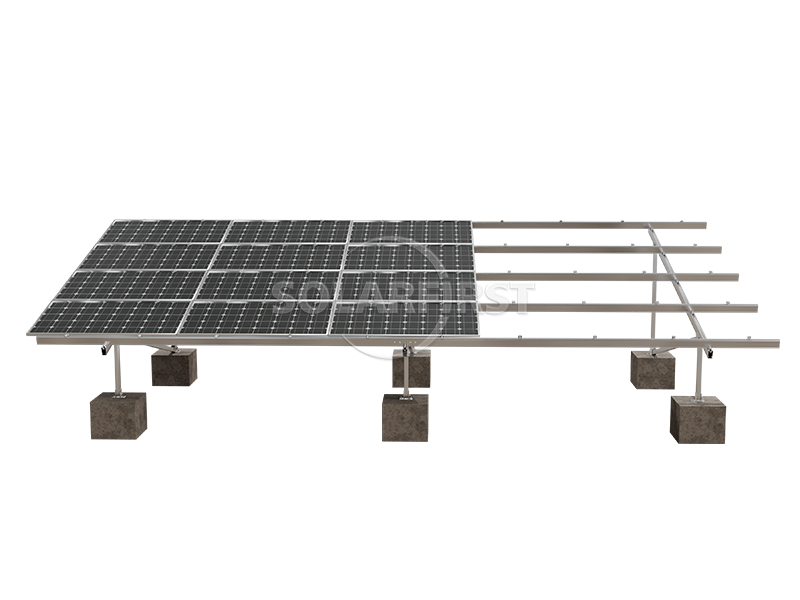

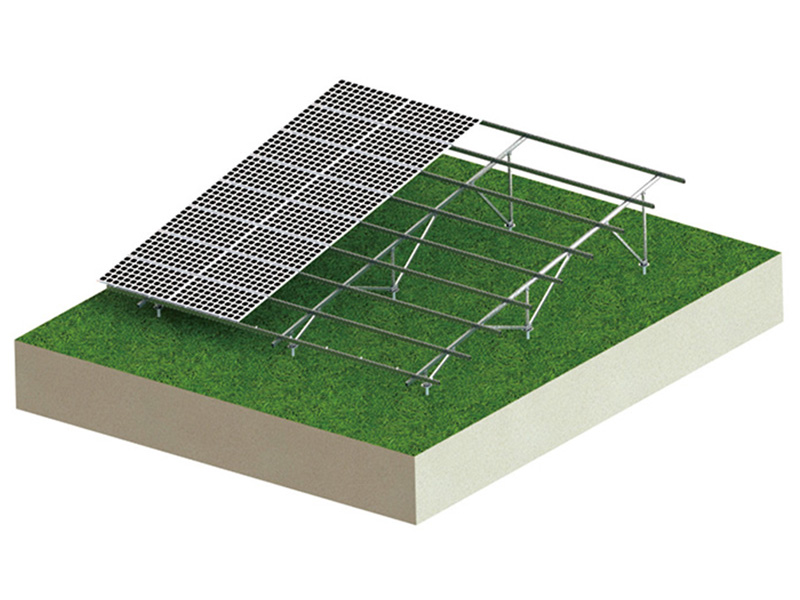

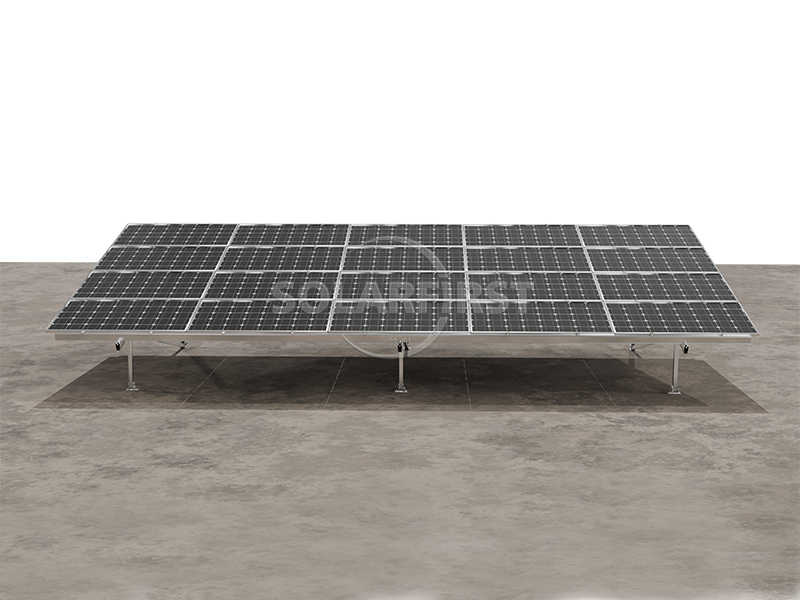

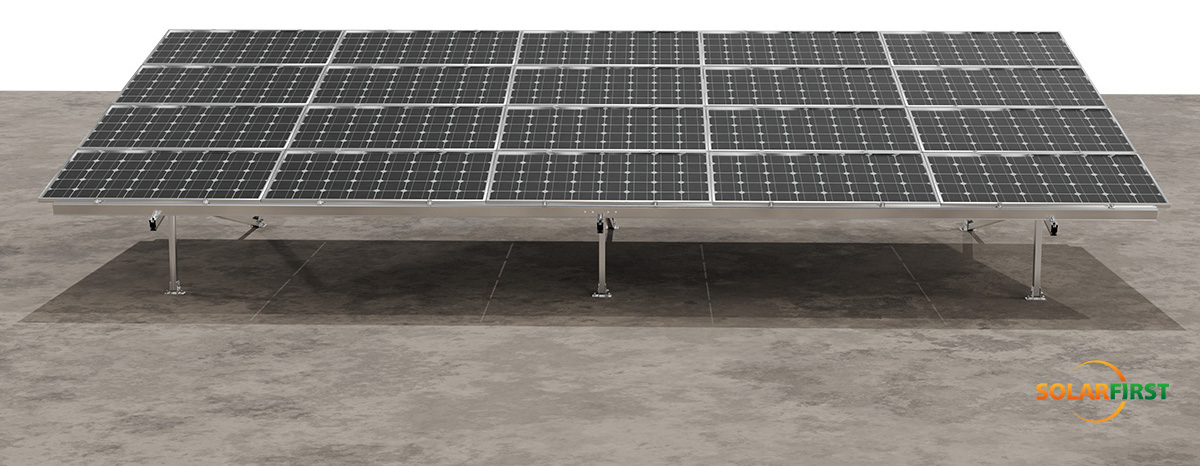

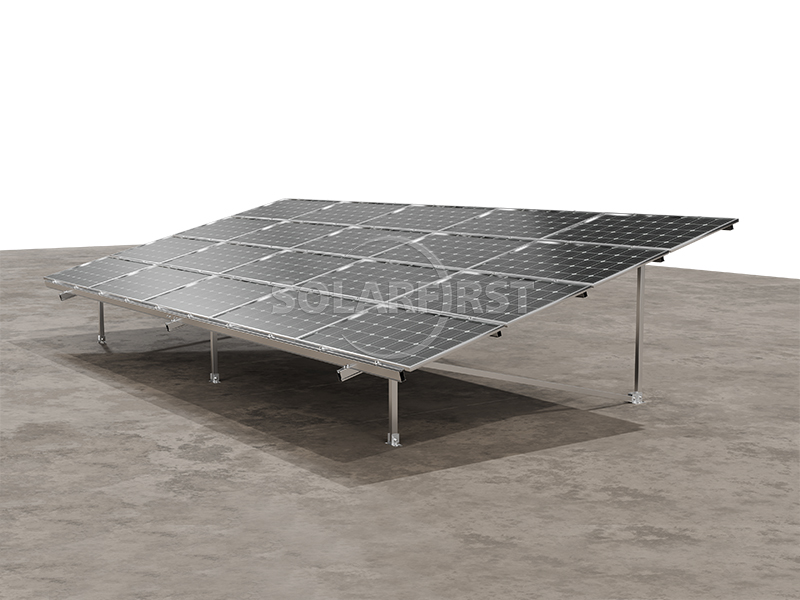

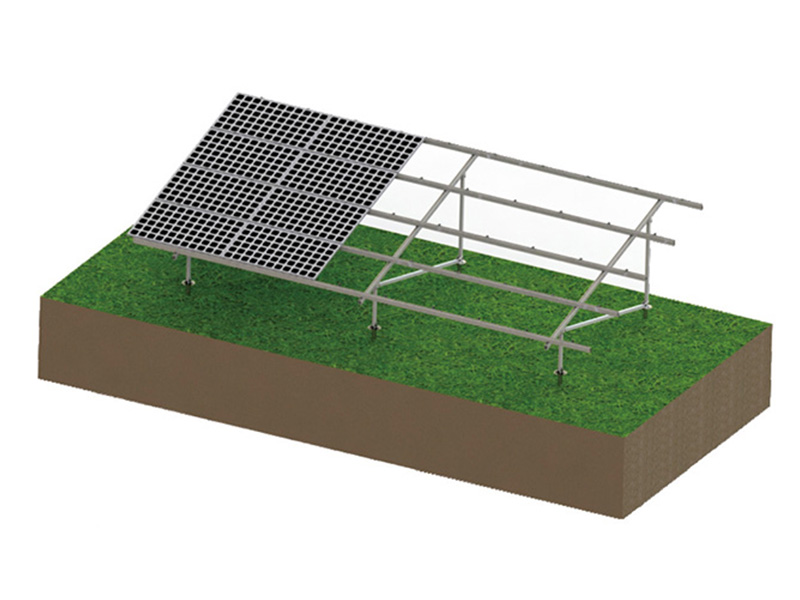

03 Structure
04 Core Engineering Parameters
| Key indicators | Parameter details |
| Applicable roof | Ground |
| Wind load | 60m/s |
| Snow load | 1.4 kN/m² |
| Foundation | Screw Pile / Concrete |
| Main material | GB50009-2012, EN1990:2002, ASCE7-05, AS/NZS1170, JIS C8955:2017,GB50429-2007 |
| standard | Anodized Aluminum AL6005-T5, Hot Dip Gavanized Steel, Stainless Steel SUS304 |
| Warranty | 10 Years Warranty |
05 Industry Application Scenarios
✔ Ground-mounted photovoltaic power stations in plains/hills
✔ Desert/tidal flat photovoltaic farm
✔ Utility-scale Photovoltaic park
06 Characteristics

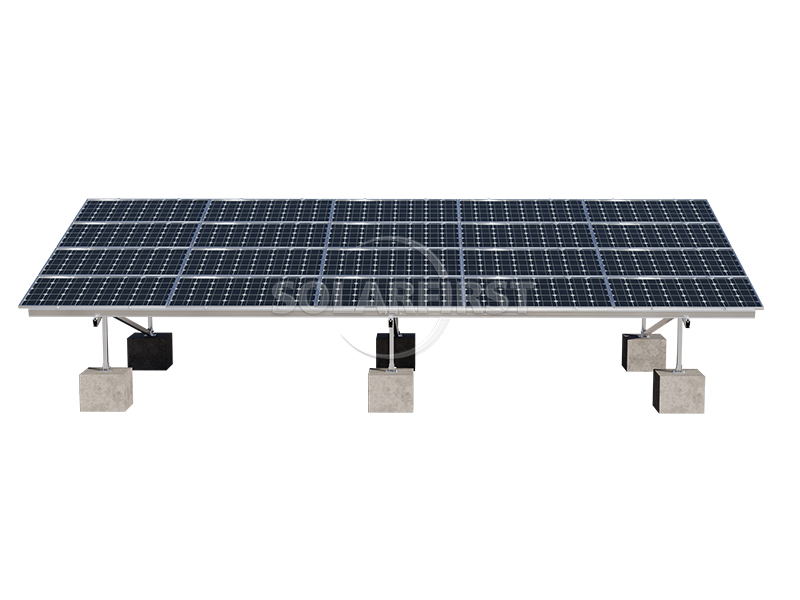

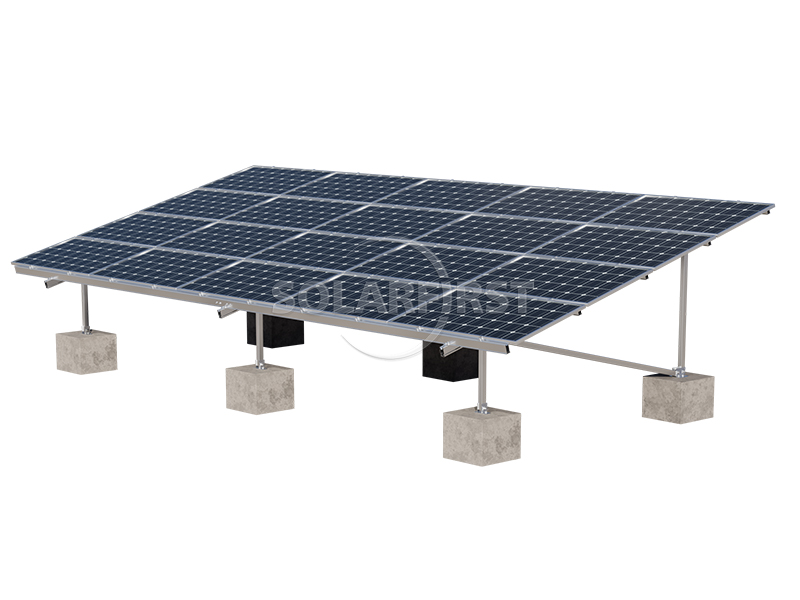

▶ Material Combination: Aluminum + Concrete:
Aluminum components (profiles, rails, brackets): lightweight, corrosion-resistant, modular.
Concrete foundations (cast-in-place, precast blocks, or ballast): provide stability, load-bearing, and anchoring.
This hybrid system combines high structural strength (concrete) with ease of assembly (aluminum).
▶ High Strength-to-Weight Design:
Aluminum has a high strength-to-weight ratio, enabling strong support with minimal mass
Concrete provides compressive strength and stability for wind/snow loads.
▶ Modular & Prefabricated Structure:
Aluminum extrusions allow custom shapes and standardized modules
Systems often use bolt-on or click-lock connections for fast assembly.
▶ Corrosion & Weather Resistance:
Aluminum naturally forms a protective oxide layer, resisting rust and environmental damage
Concrete foundations can be engineered for soil, moisture, and environmental durability.
07 Technical verification system
Provide standardized installation videos, operation manuals and on-site technical guidance to ensure zero error in construction.
▶ Extreme environmental testing
• Pass the low-temperature impact at -40℃
• Salt spray corrosion (3,000 + hours)
• Extreme tests such as 60m/s hurricane simulation.
▶ Third-party certification
• We hold wind pressure, snow pressure, seismic resistance and material certification certificates issued by TUV, SGS and other institutions to ensure the compliance of global projects.
08 Packages & Shipping
International standard packaging; Goods are dispatched from Shanghai, Ningbo, Tianjin, Xiamen and Shenzhen ports in China.
09 Project Case

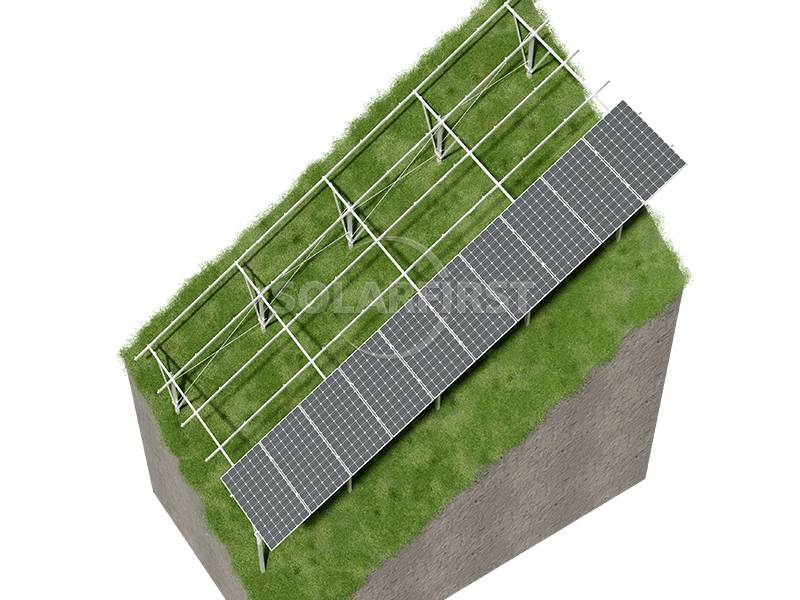

Solar First's ground-mounted solar system is an east-west adjustable, pre-assembled bracket solution designed for large commercial and utility ground-mounted solar installations. It utilizes a durable helical pile foundation, ensuring rapid deployment, robust structural support, and long-term corrosion resistance.
Details
The Solar First Inward-Curved C-Shaped Steel Ground Mounting System is a high-performance solution designed for large-scale ground-mounted plants and projects on complex terrain.
Details
