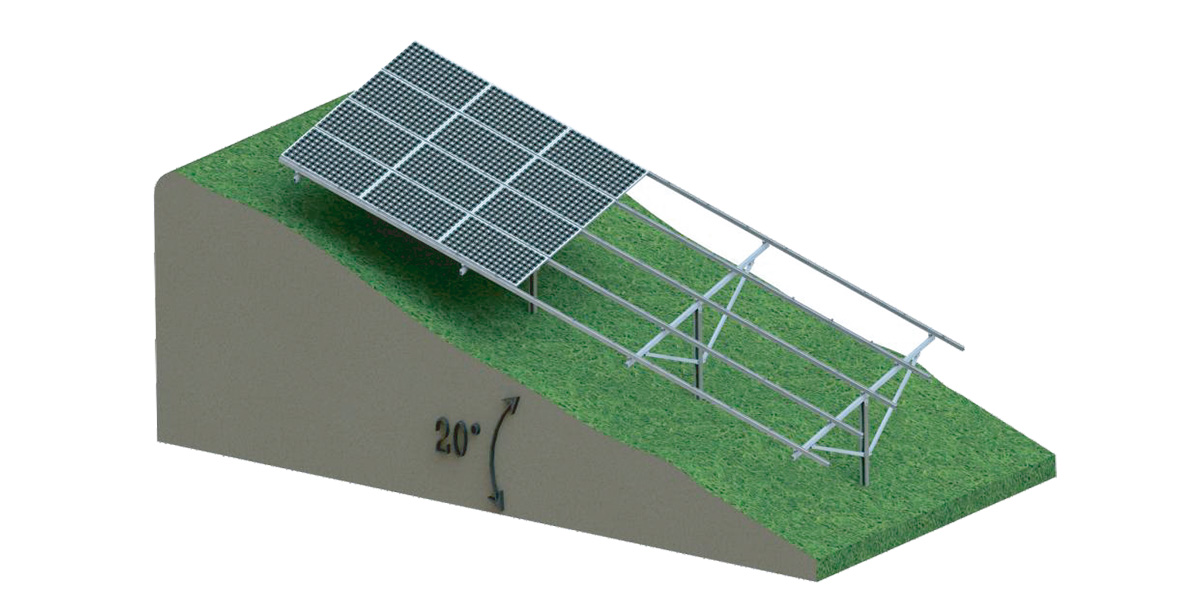

Ramming Pile Solar Ground Mounting System (Slope Area)

01 Product Description

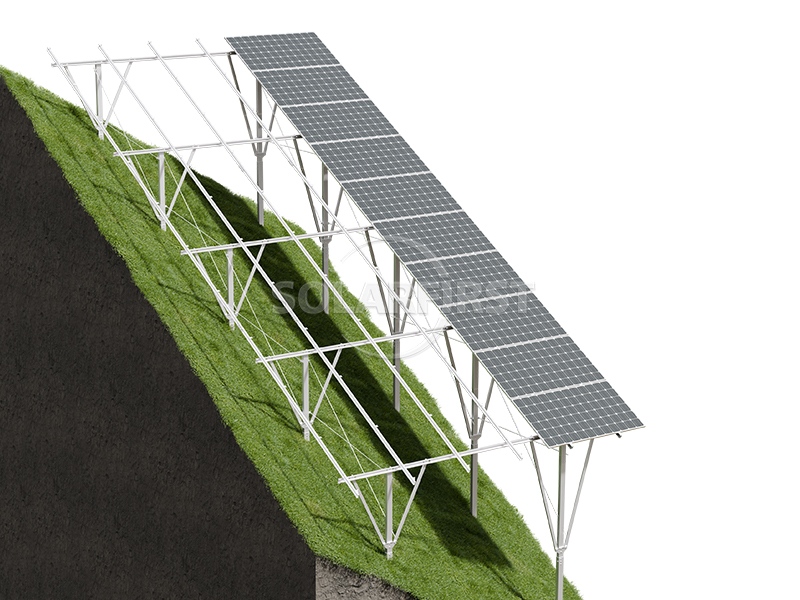

The SF Ramming Pile Ground Mount is engineered for challenging slope terrains, making it a cost-effective and adaptable solution for large commercial and utility-scale solar parks. Its ramming pile foundation is specifically designed to accommodate east-west sloping land while ensuring optimal south-facing panel orientation for maximum power generation. With high resistance to wind loads up to 60m/s and snow loads up to 1.4 kN/m², this slope ground solar mounting system delivers reliability and performance in diverse environments.

Features
◆ Slope-Adaptable Ramming Pile Foundation

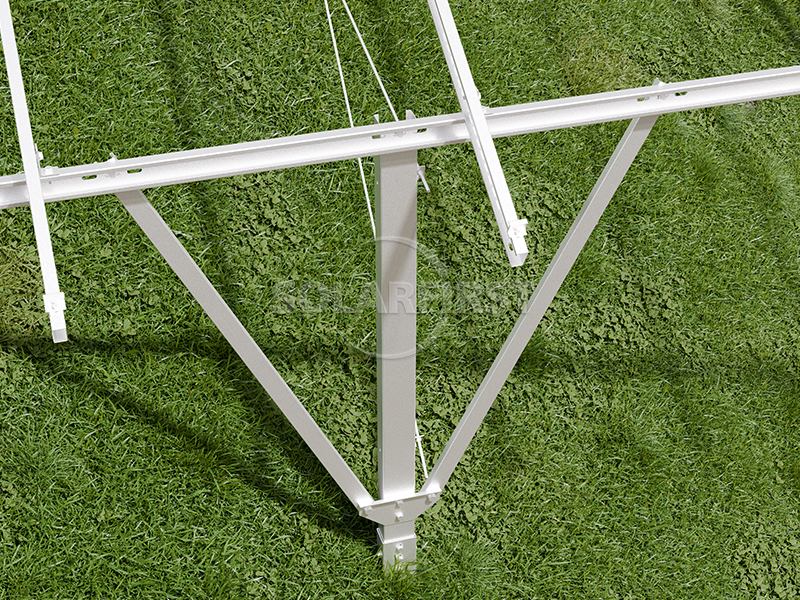

The system utilizes driven piles that stabilize efficiently on uneven or sloped terrain without extensive excavation. Special adjustable connectors enable precise south alignment of solar panels, enhancing energy yield even on complex landscapes.

◆ Quick Installation with Machinery Support
Ramming pile piling machines significantly reduce labor and time during installation. Each pile can be installed rapidly, accelerating project timelines and lowering costs—especially beneficial for large-scale solar parks.

◆ Configurable and Corrosion-Resistant Structure
Available in single-pile or double-pile options, the system uses hot-dip galvanized steel, Zn-Al-Mg coated steel, or anodized aluminum, ensuring long-term durability and corrosion resistance. All components meet international standards including GB, EN, and ASCE.

◆ Pre-Engineered for Flexibility and Safety
The pre-designed adjustable mounting points allow fine-tuning during installation, accommodating variations in terrain and module layout. This slope support solar system mount offers both structural flexibility and secure, reliable performance.

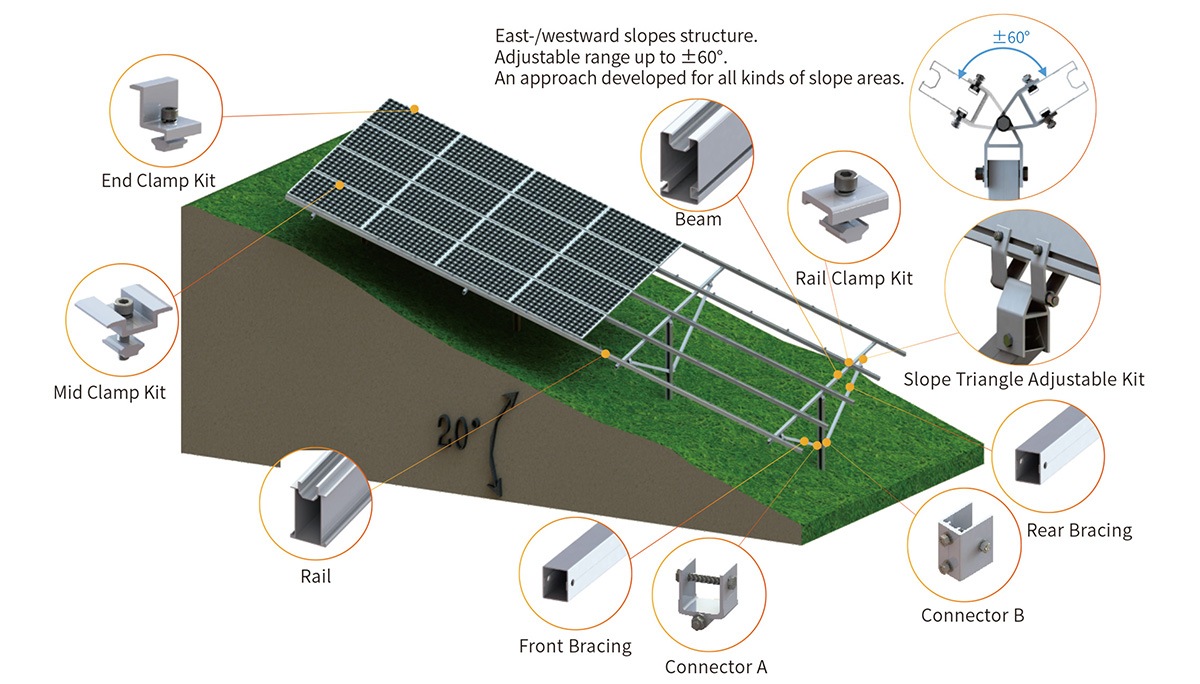

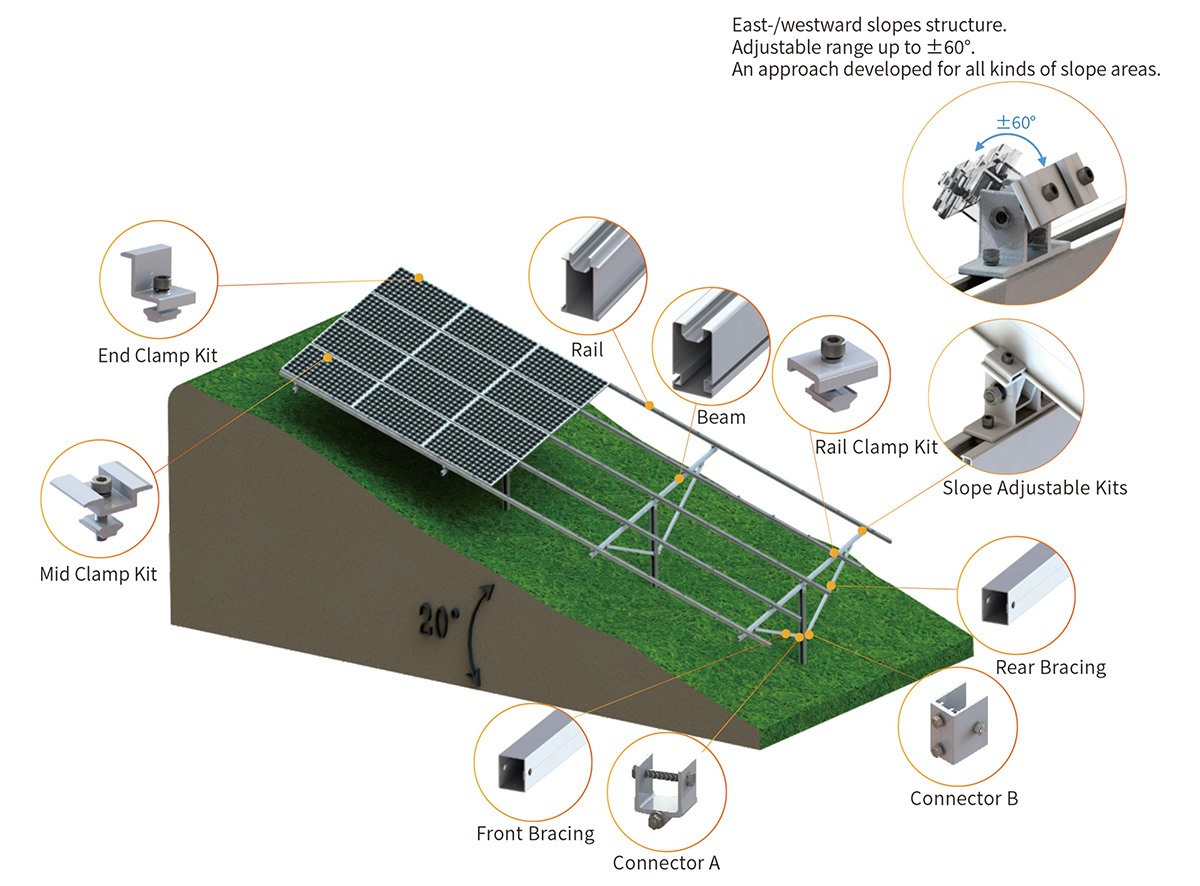

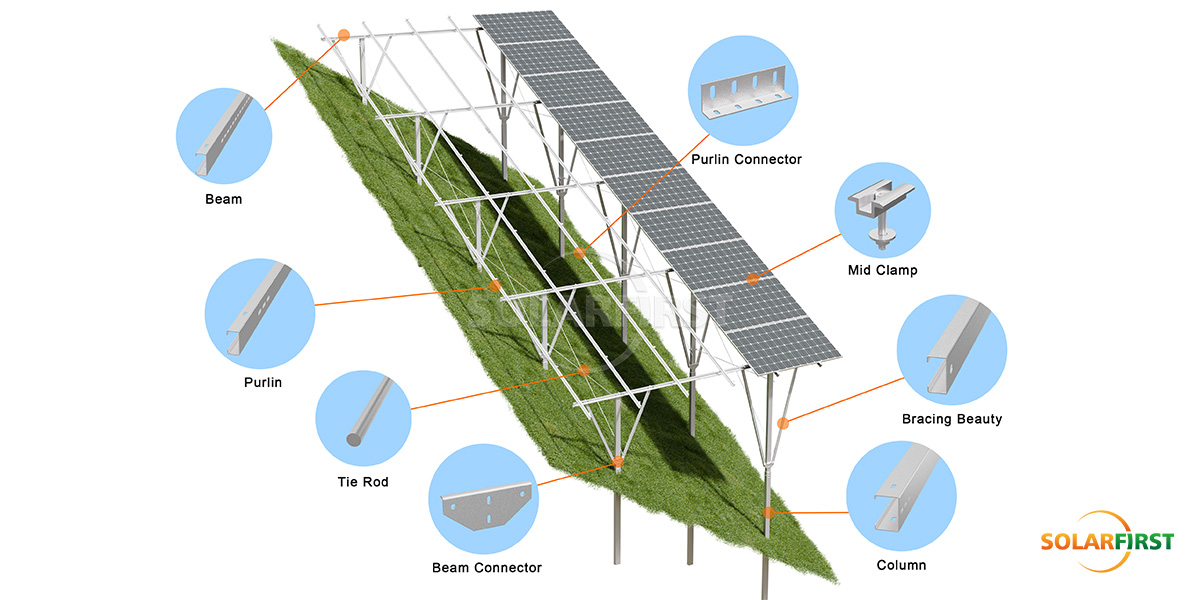

02 Accessory schematic diagram

03 Core Engineering Parameters

04 Industry Application Scenarios

✔ Mountain/Hilly photovoltaic power stations

✔ Power station on uneven desert ground

✔ Large-scale photovoltaic parks

05 Professional technical services

▶ Solution design and structural analysis:

Provide customized solution drawing, load calculation reports (including wind load/snow load/seismic force analysis) or assembly drawing.

▶ On-site survey:

Engineers conduct on-site investigations ground conditions with local soil investigation professionals.

▶ Installation training and guidance:

Provide installation videos, installation manuals and on-site installation guidance to ensure safe and complete installation.

06 Technical verification system

Provide standardized installation videos, operation manuals and on-site technical guidance to ensure zero error in construction.

07 Technical verification system

▶ Extreme environmental testing

• Pass the low-temperature impact at -40℃

• Salt spray corrosion (3,000 + hours)

• Extreme tests such as 60m/s hurricane simulation.

▶ Third-party certification

• We hold wind pressure, snow pressure, seismic resistance and material certification certificates issued by TUV, SGS and other institutions to ensure the compliance of global projects.

07 Packages & Shipping

International standard packaging; Goods are dispatched from Shanghai, Ningbo, Tianjin, Xiamen and Shenzhen ports in China.

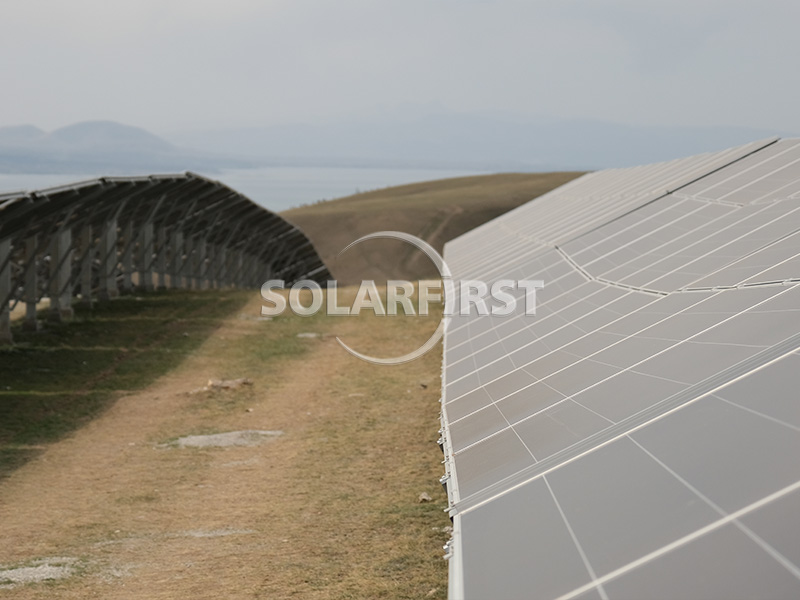

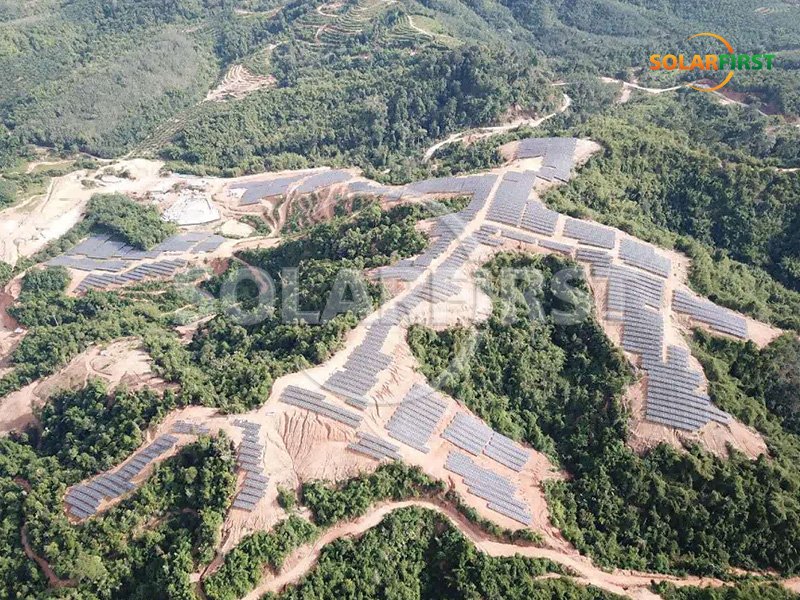

08 Project Case
