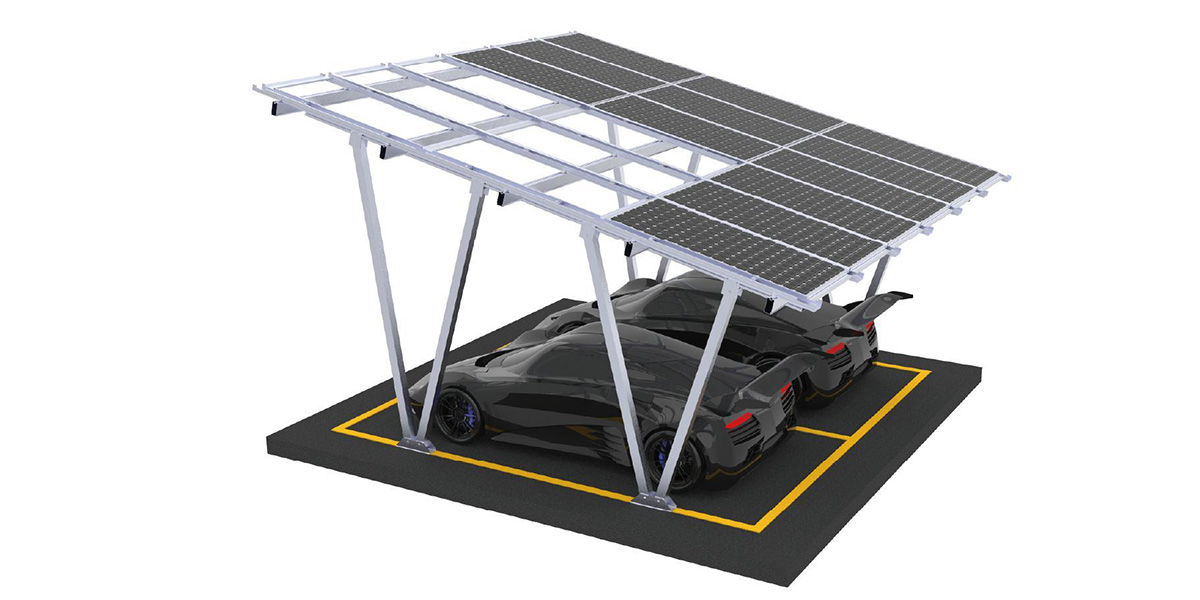

Aluminum Solar Carport Mounting System

 01 Product Description

Harness the power of the sun with our high-strength aluminum solar carport—an efficient structure that provides sheltered parking while generating clean energy. Suitable for residential and commercial use, this system offers a waterproof design that effectively directs rainfall from panel gaps through integrated drainage cutters and pipes, ensuring vehicles remain protected from sun, wind, and rain.

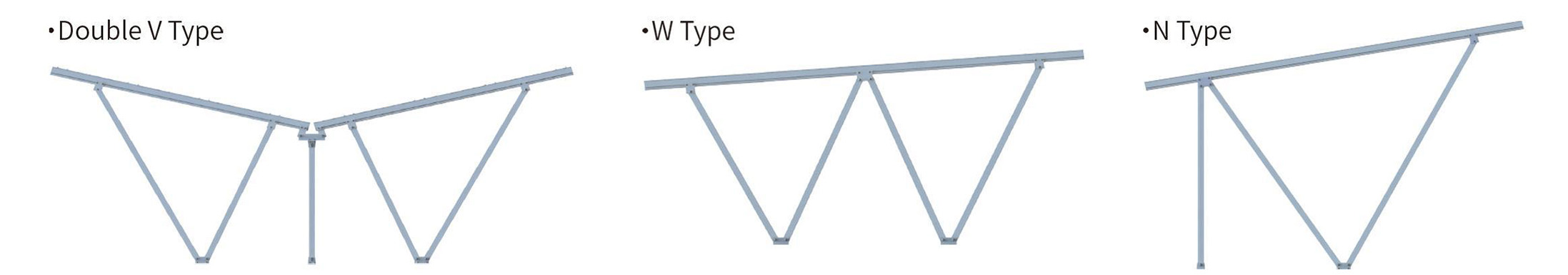

Constructed from anodized aluminum AL6005-T5 and stainless steel SUS304, the solar carport structure is lightweight, highly corrosion-resistant, and built to withstand wind loads up to 60m/s and snow loads of 1.4 kN/m². Available in multiple design types including butterfly, double-pitched, and single-pitched (W-type & N-type), it offers flexibility in solar carport design for various sites and visual preferences.

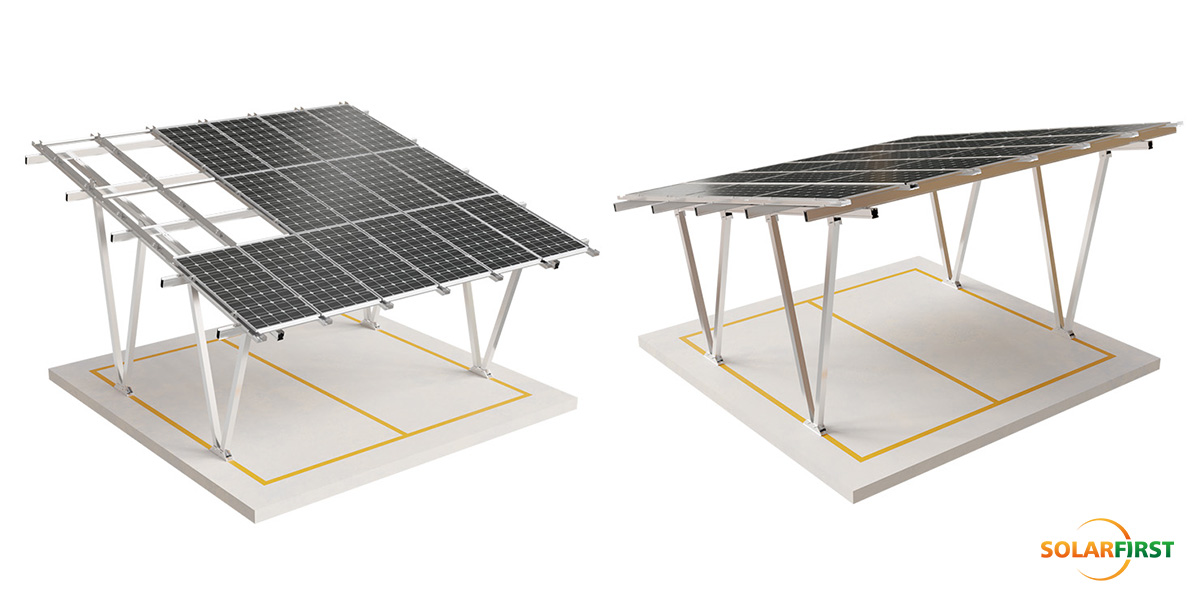

This residential solar carport kit provides an all-in-one solution that combines canopy shelter with renewable power generation. Easy to install on concrete foundations, the system is engineered for simplicity and durability, making it an ideal choice for homeowners seeking efficient and attractive solar carport systems.

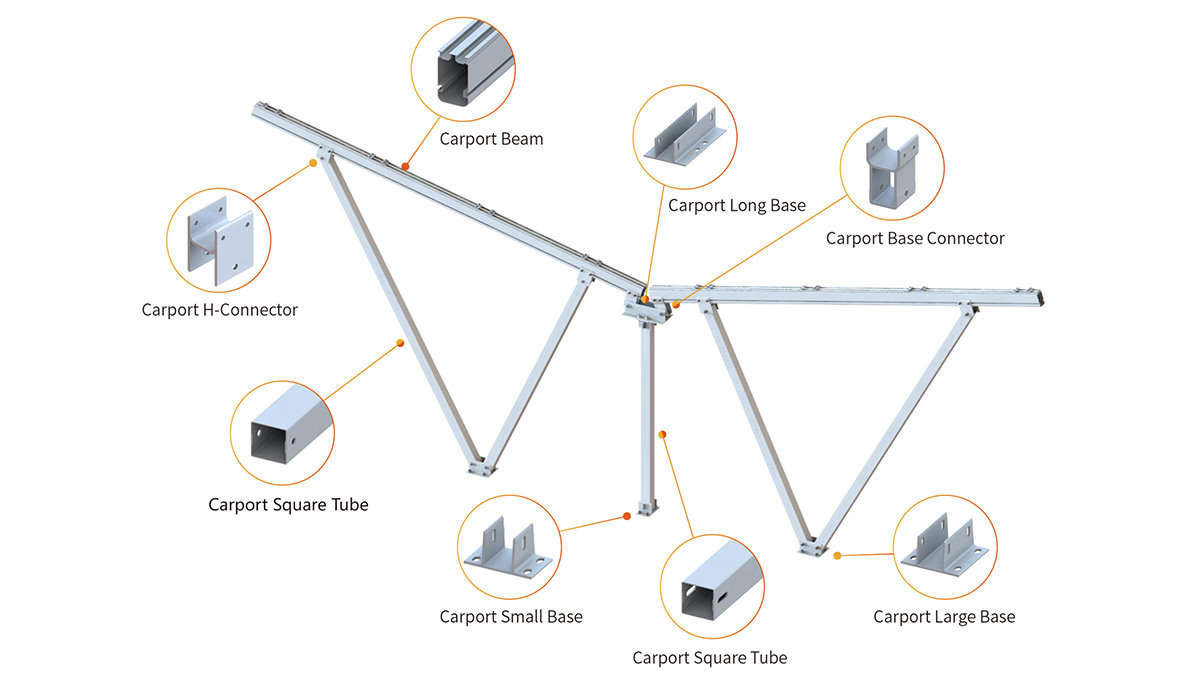

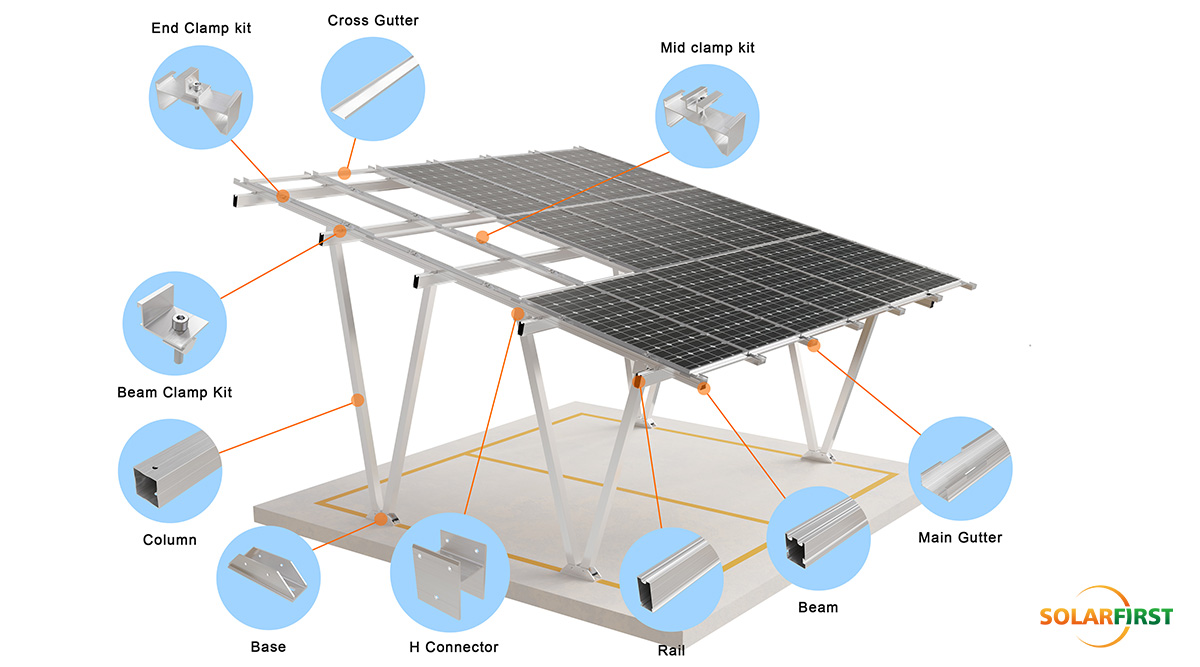

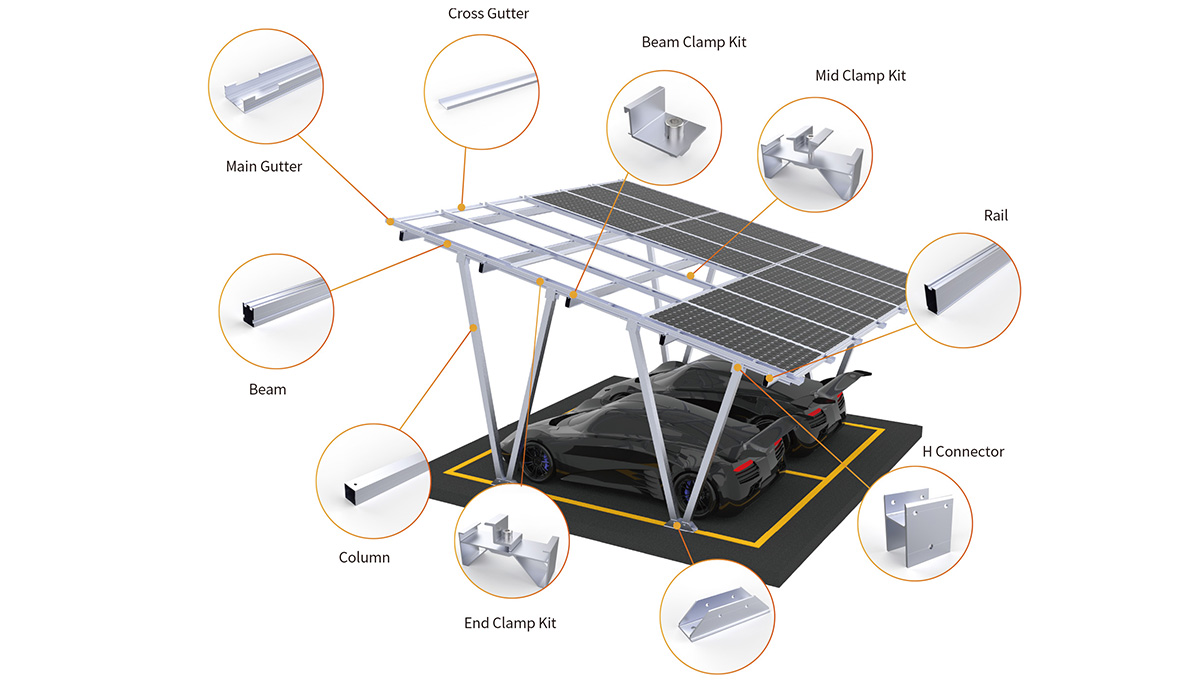

 02 Accessory Schematic Diagram

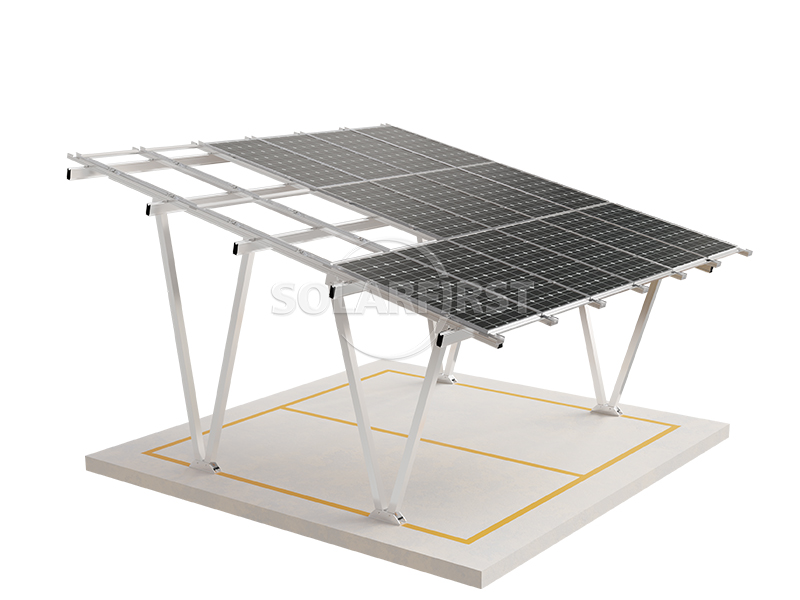

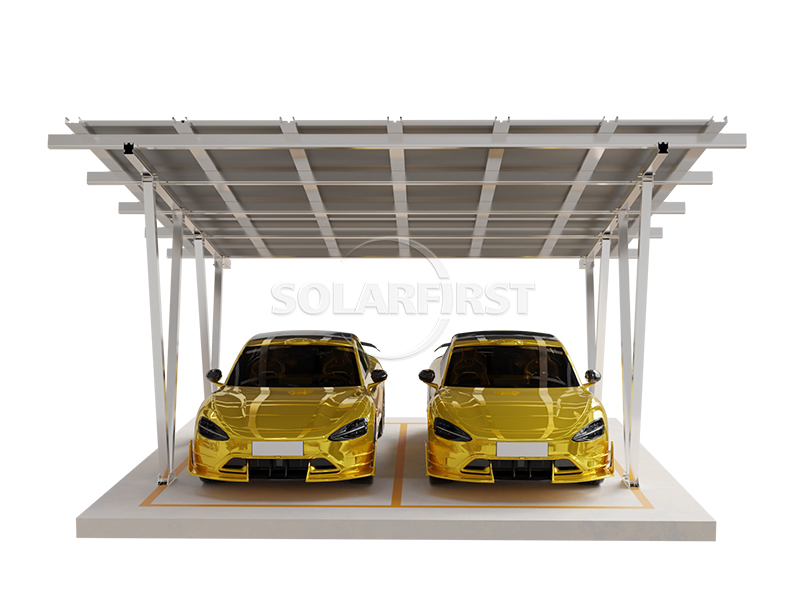

03 Bracket Structure



 04 Accessories

•

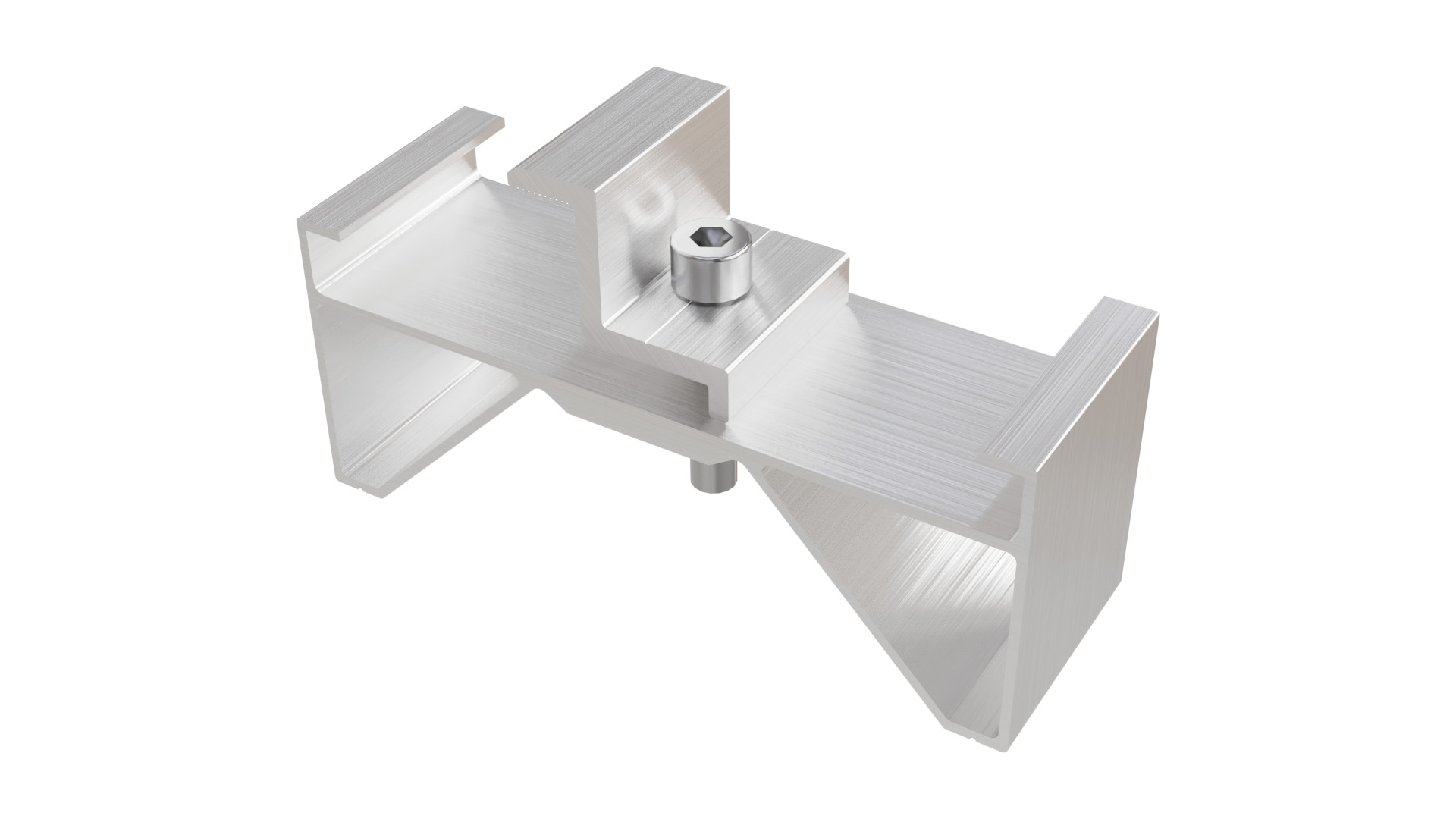

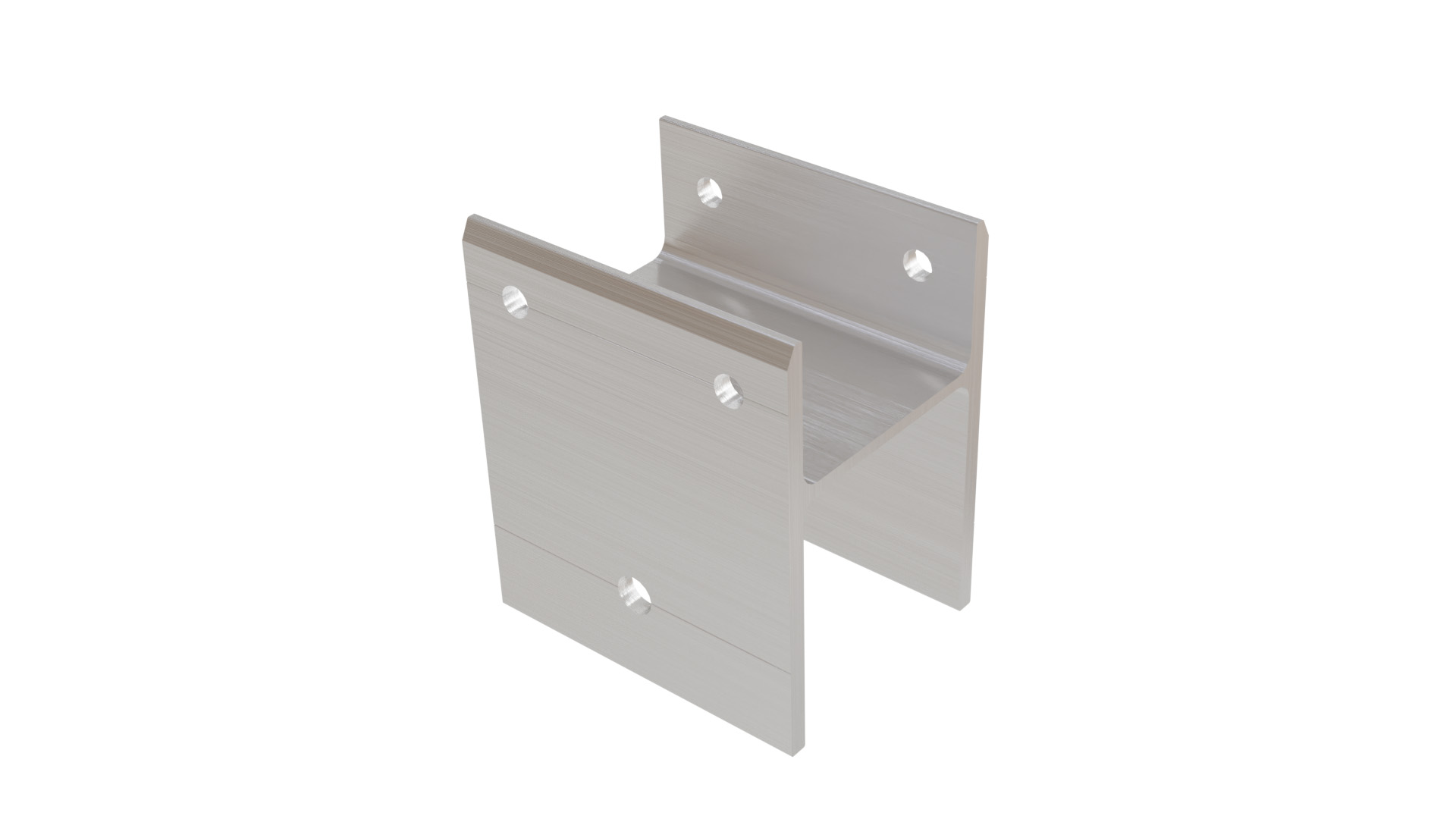

  H Connector


•

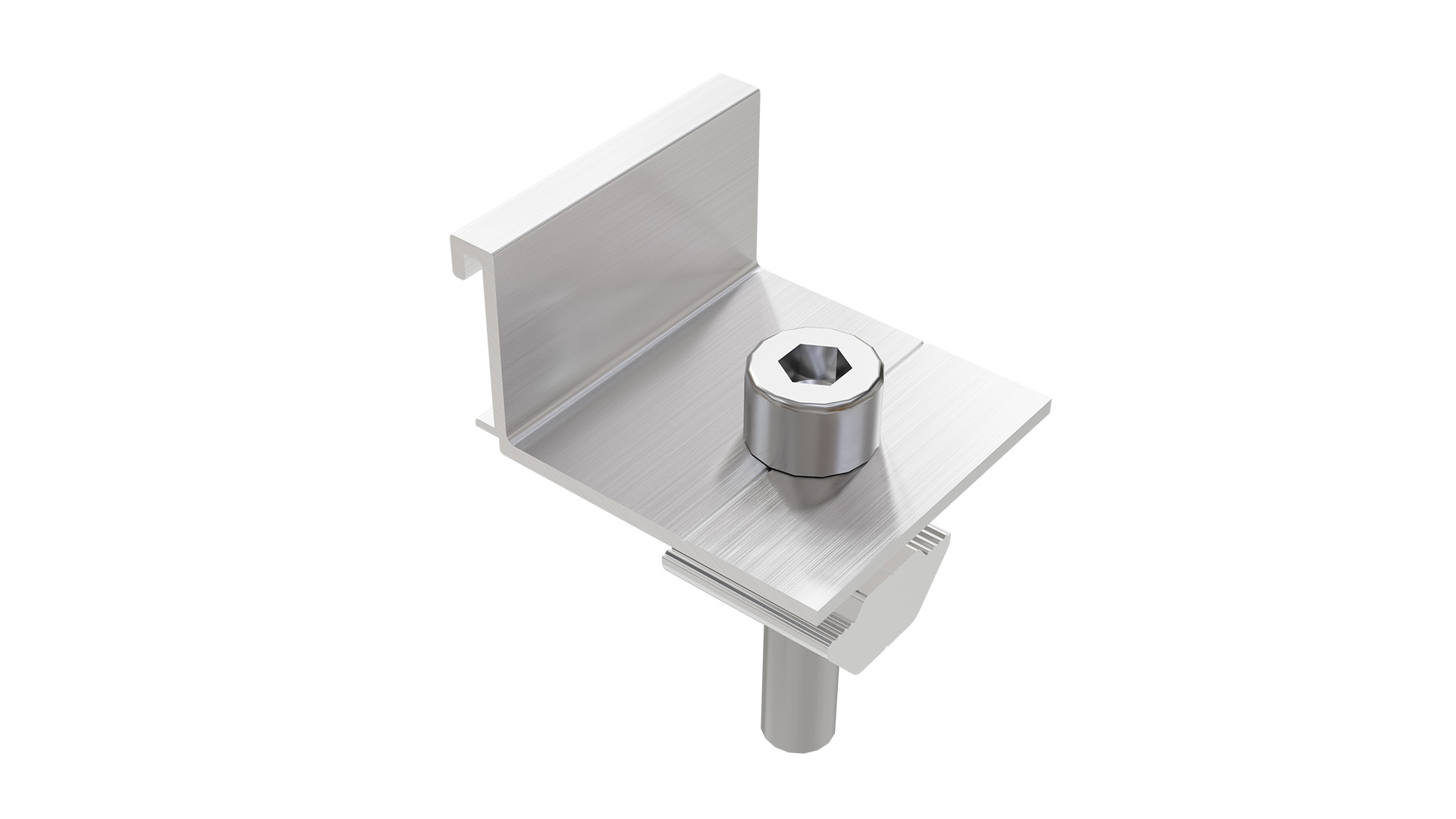

  End Clamp kit
•

  Mid Clamp Kit


•

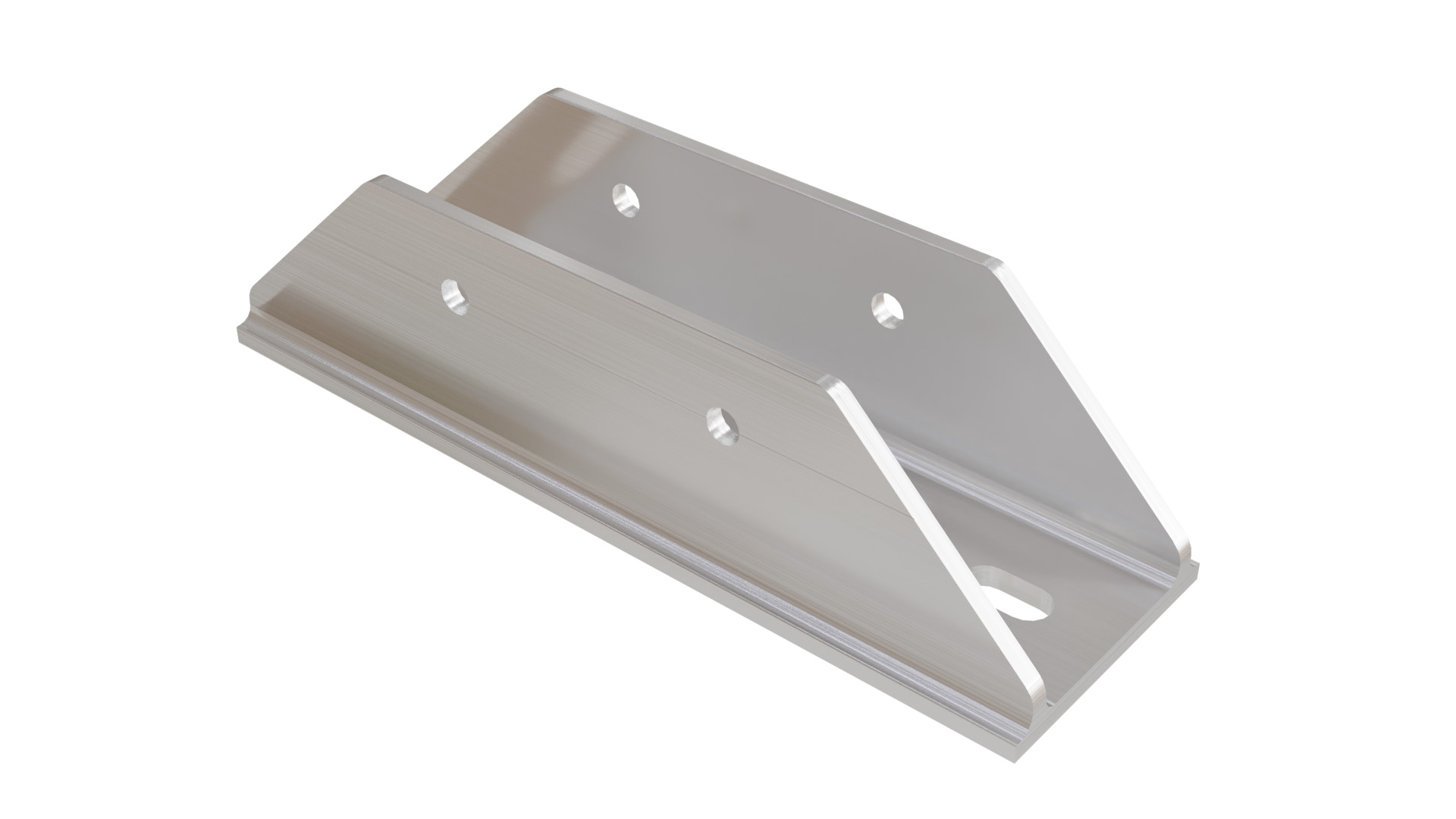

  Base
•

  Beam Clamp kit

•

  Rail


•

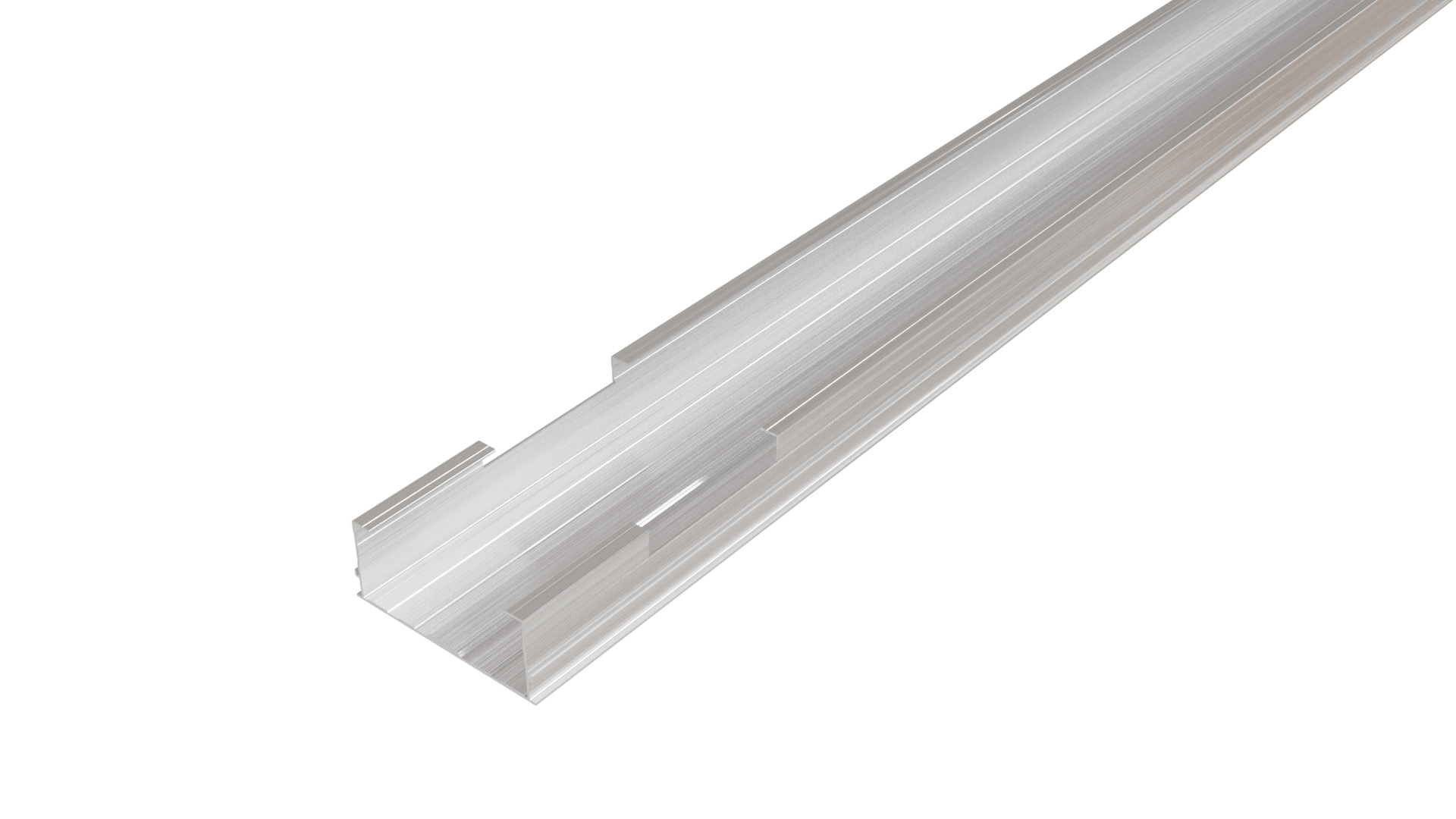

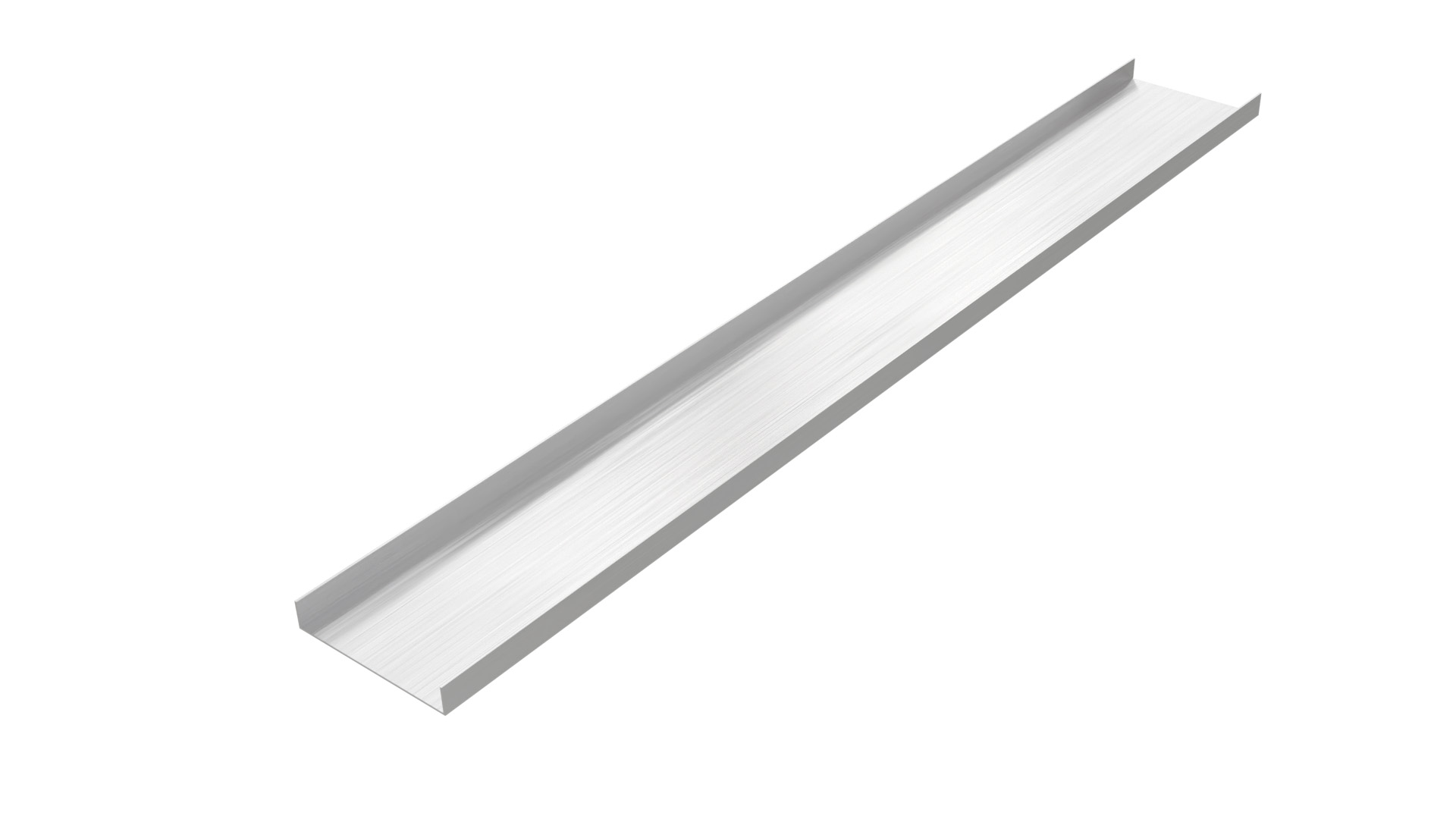

  Main Gutter
•

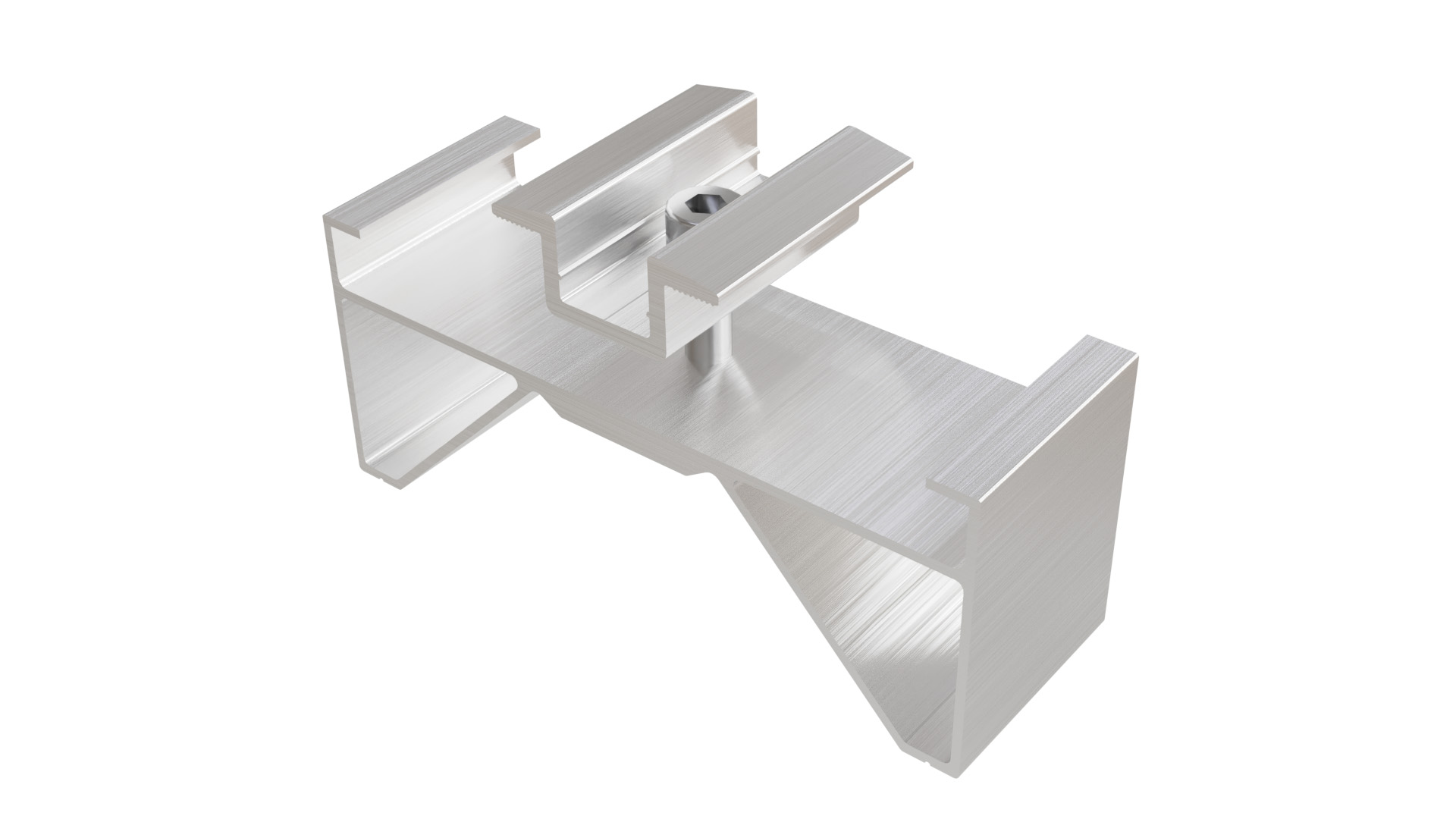

  Cross Gutter


•

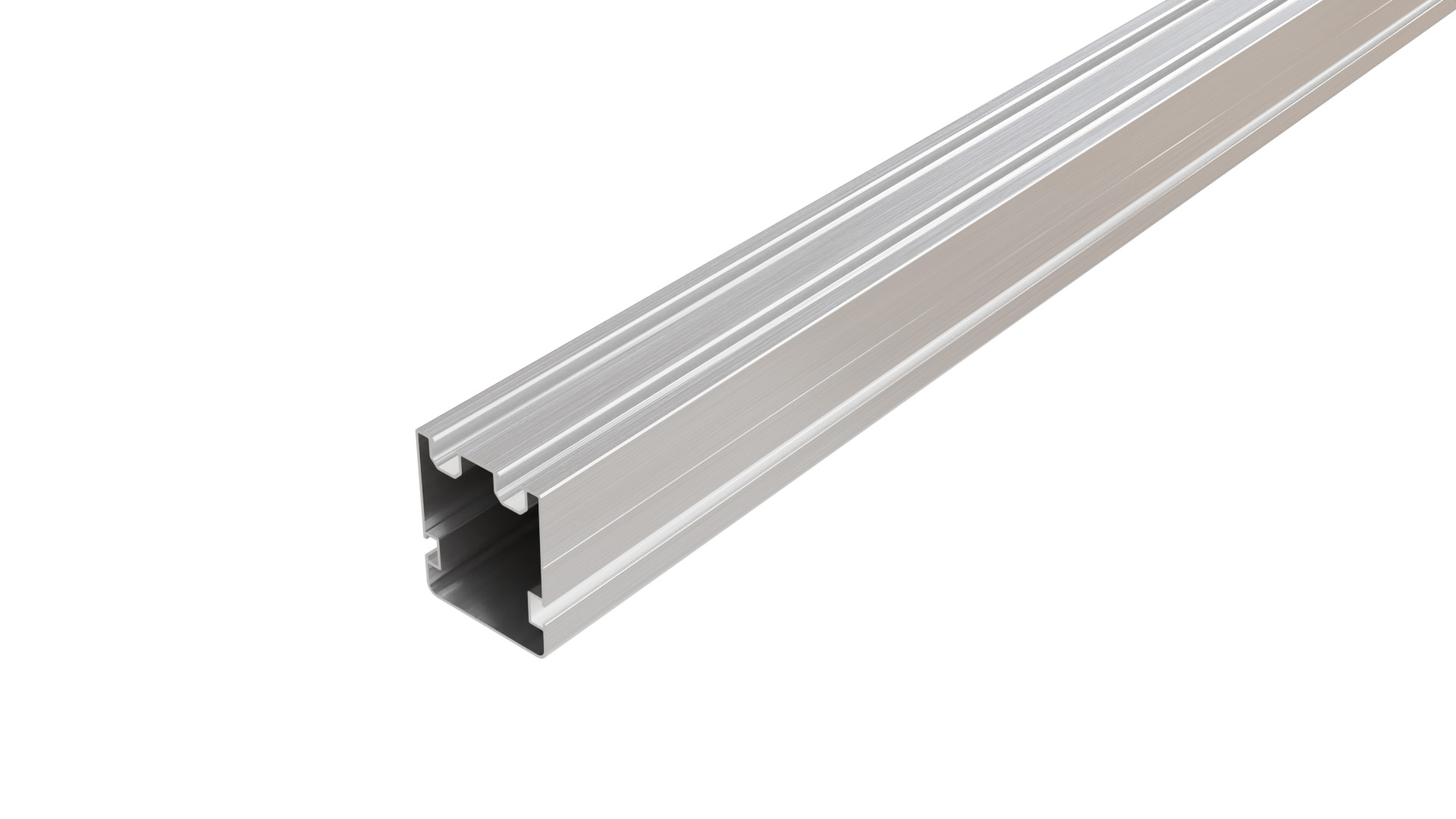

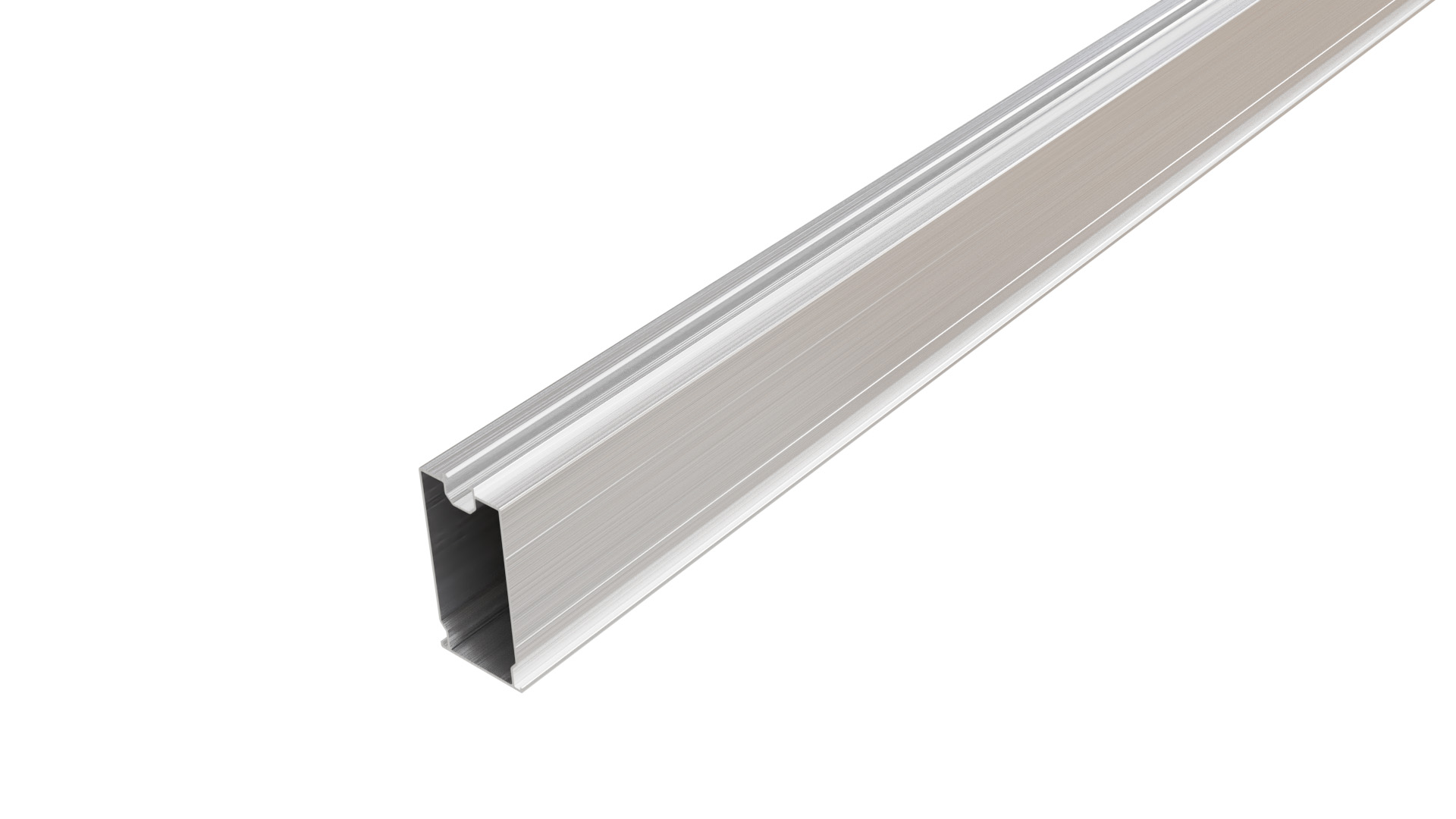

  Beam
•

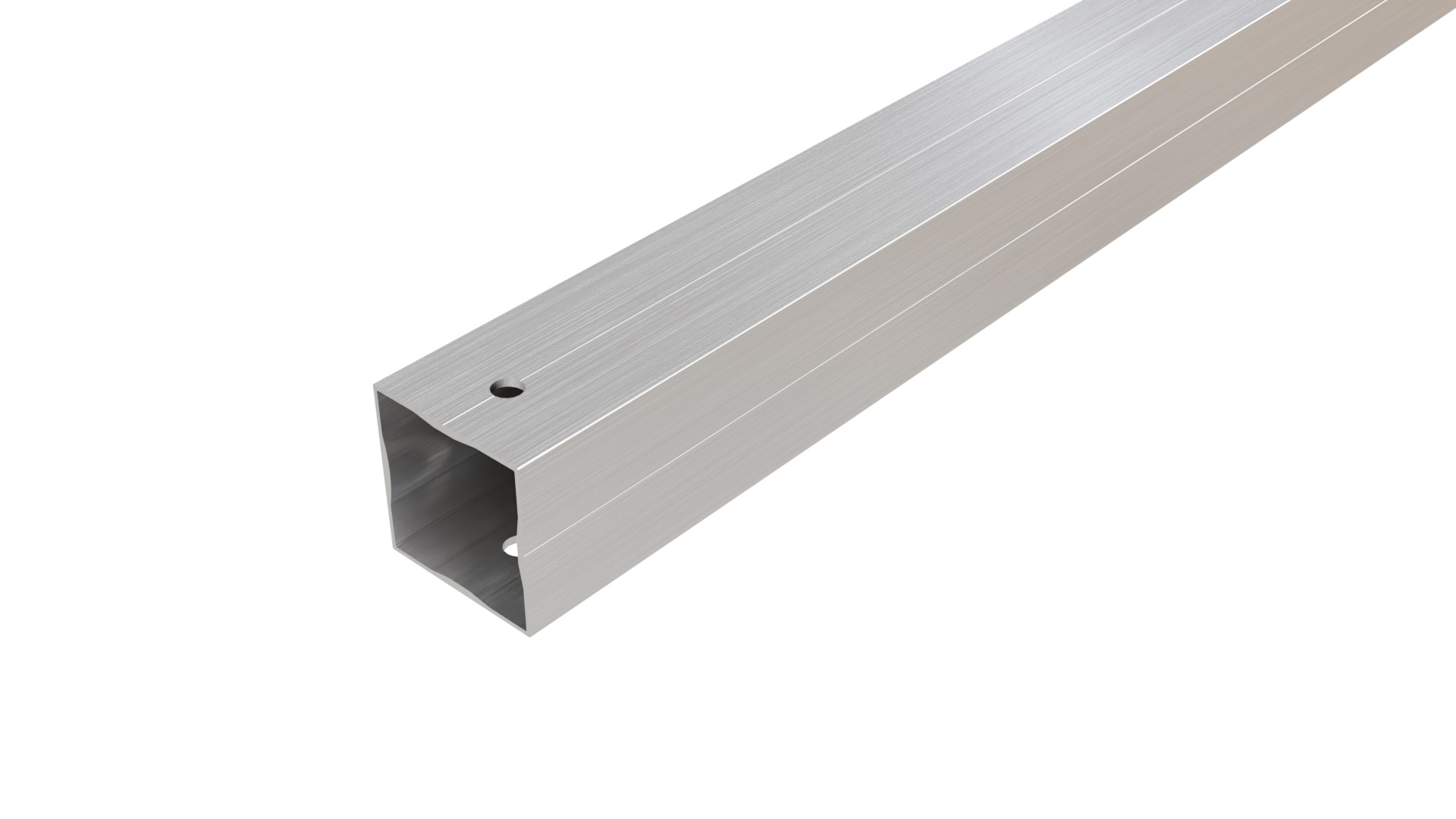

  Column



 05 Core Engineering Parameters

 06 Industry Application Scenarios

✔ Photovoltaic carport for commercial parking lots

✔ Factory park parking sunshade power generation canopy

✔ Integrated carport project for public facilities

 07 Professional Technical Services

▶ Solution design and structural analysis:

Provide customized solution drawing, load calculation reports (including wind load/snow load/seismic force analysis) or assembly drawing.

▶ On-site survey:

Engineers conduct on-site investigations ground conditions with local soil investigation professionals.

▶ Installation training and guidance:

Provide installation videos, installation manuals and on-site installation guidance to ensure safe and complete installation.

 08 Technical Verification System

Provide standardized installation videos, operation manuals and on-site technical guidance to ensure zero error in construction.

▶ Extreme environmental testing

• Pass the low-temperature impact at -40℃

• Salt spray corrosion (3,000 + hours)

• Extreme tests such as 60m/s hurricane simulation.

▶ Third-party certification

• We hold wind pressure, snow pressure, seismic resistance and material certification certificates issued by TUV, SGS and other institutions to ensure the compliance of global projects.

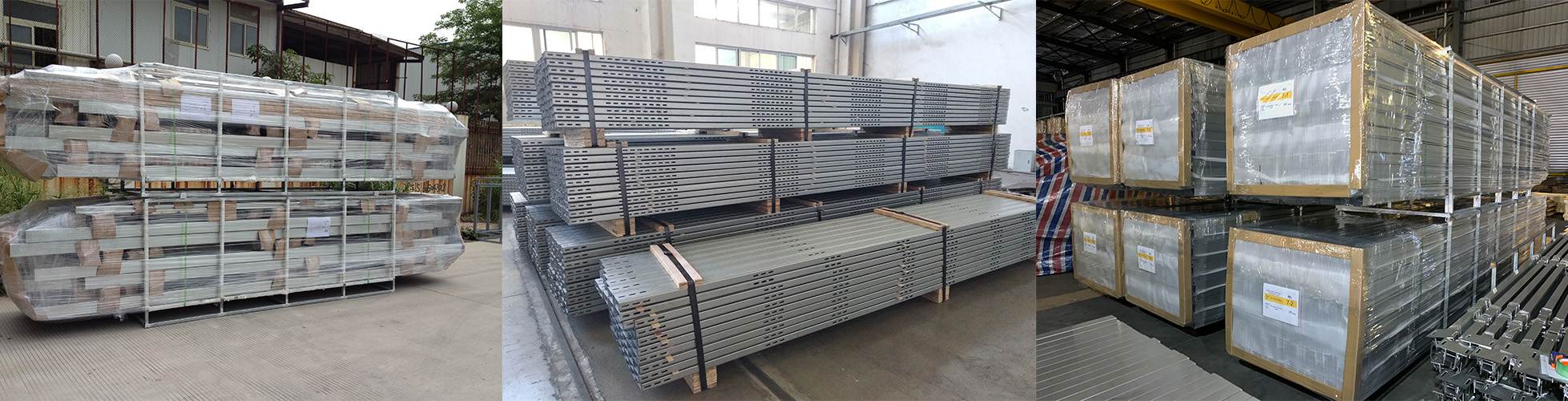

 09 Packages & Shipping

International standard packaging; Goods are dispatched from Shanghai, Ningbo, Tianjin, Xiamen and Shenzhen ports in China.

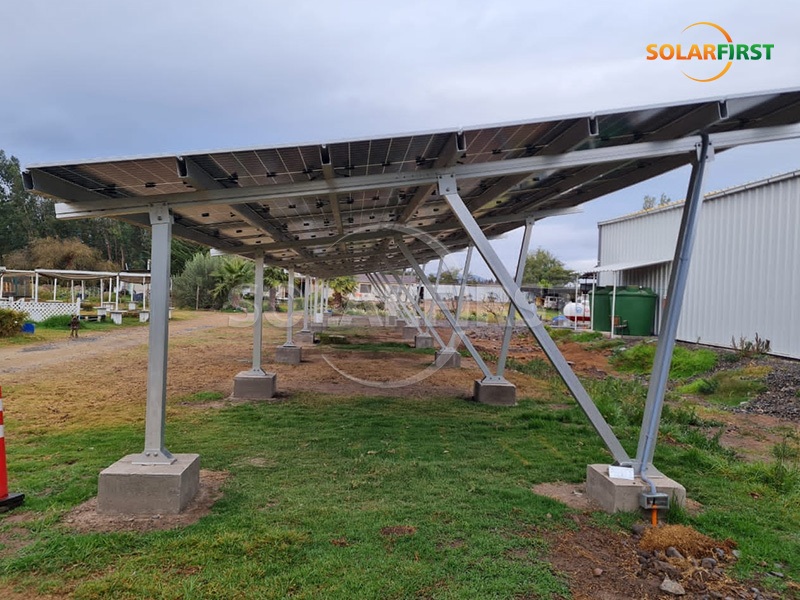

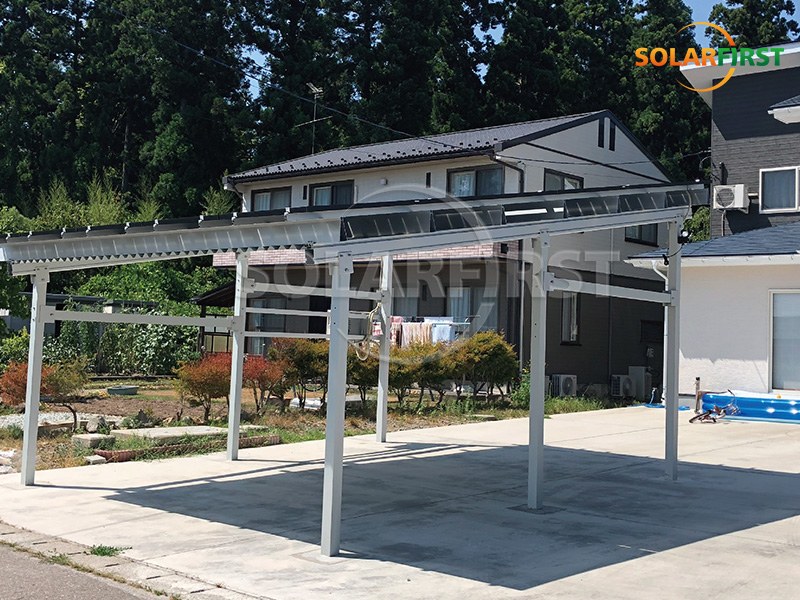

 10 Project Case
