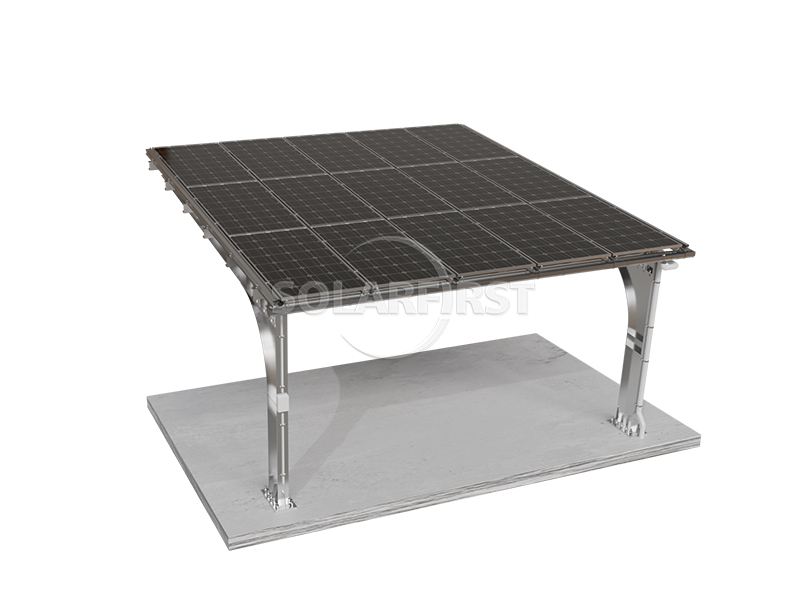

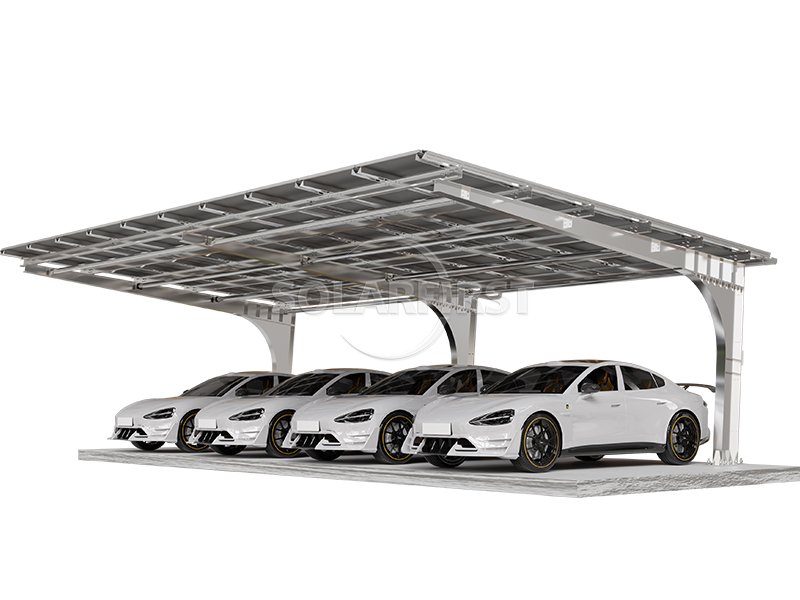

Cantilever Steel Solar Carport Mounting System

 01 Product Description

Solar First presents the SF Cantilever Steel Carport, an innovative solar parking structure engineered for both commercial and residential applications. Designed to provide sheltered parking while harnessing solar energy, this system combines functionality, durability, and aesthetic appeal.

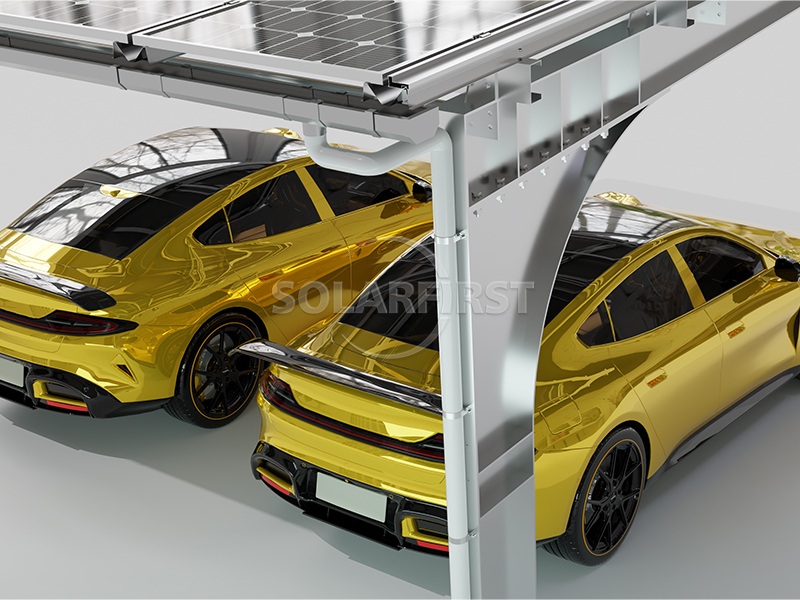

The cantilever steel carport features a unique waterproof design that efficiently channels rainfall from the gaps between solar modules through integrated drainage cutters, pipes, and channels—ensuring reliable weather protection without relying on adhesives or rubber fillers. Its versatile cantilever structure adapts seamlessly to both angled and straight parking layouts, maximizing space utilization and vehicle coverage.

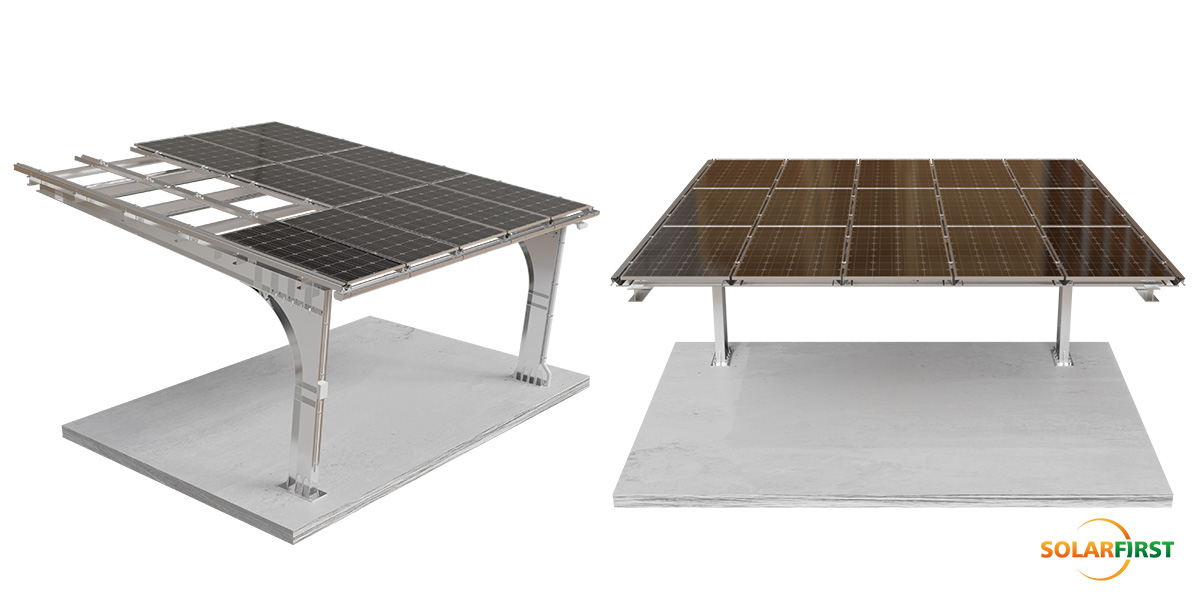

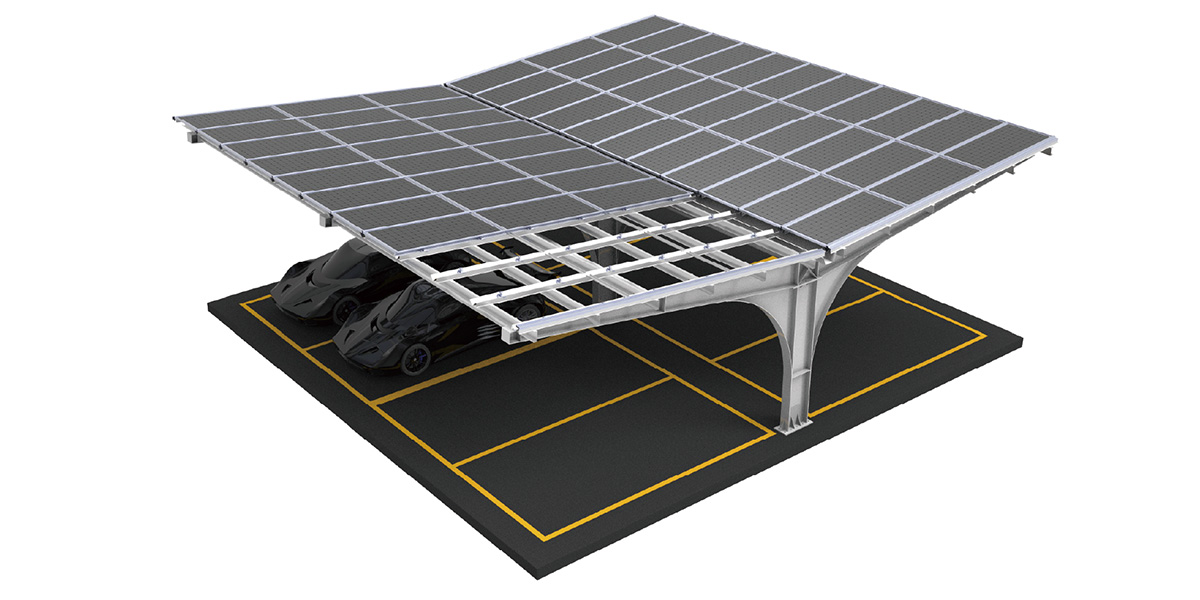

Constructed from hot-dip galvanized steel and anodized aluminum AL6005-T5, the system offers exceptional corrosion resistance and structural strength, capable of withstanding wind loads up to 60m/s and snow loads of 1.4 kN/m². Available in multiple configurations—including butterfly, double-pitched, and single-pitched (W/N type) designs—this solution can be installed with screw pile or concrete foundations for flexibility across different site conditions.

Whether for corporate campuses, retail parking lots, or residential properties, the SF Cantilever Steel Carport provides a durable, efficient, and space-saving solar energy solution.

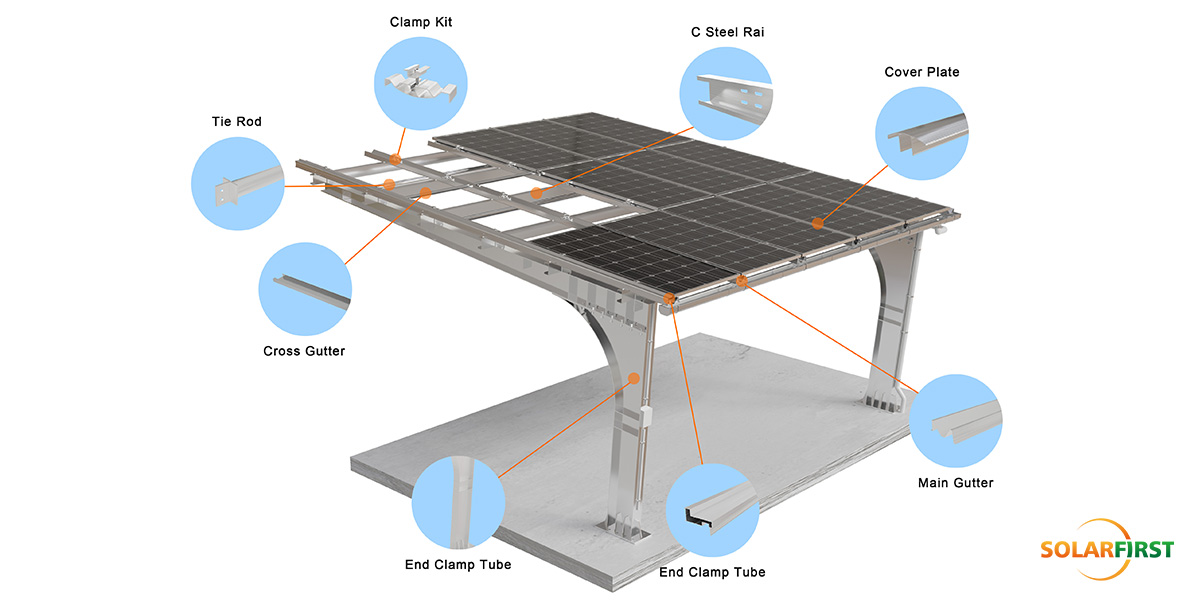

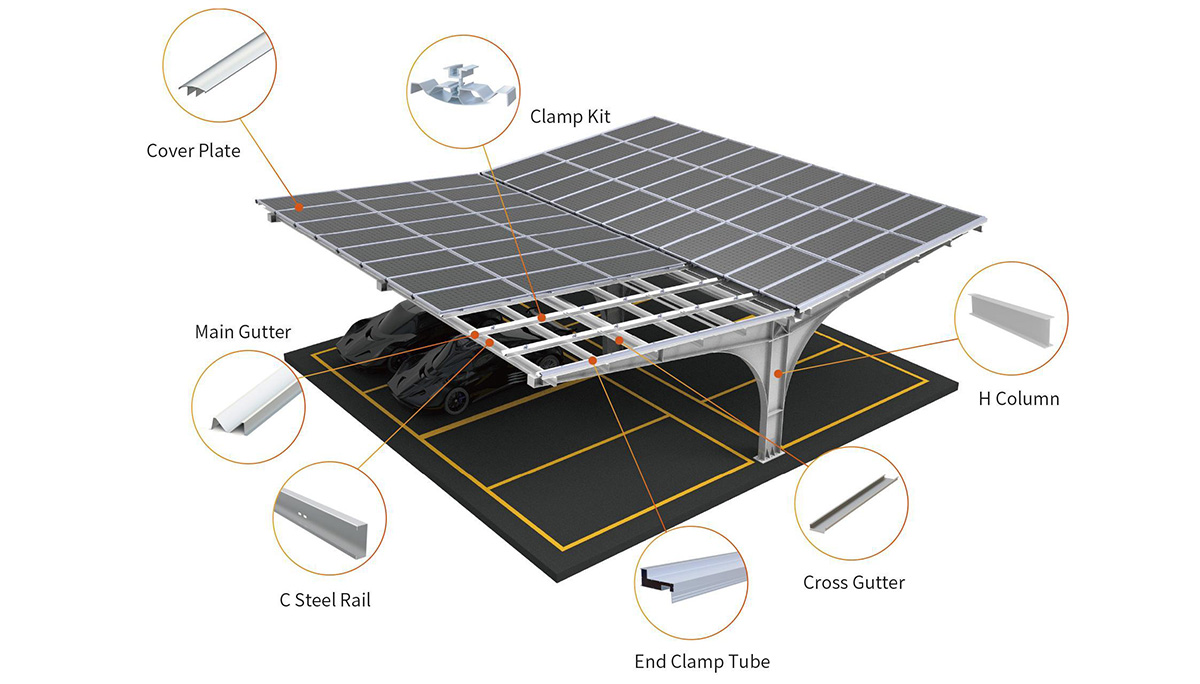

 02 Accessory schematic diagram

 03 Schematic Diagram

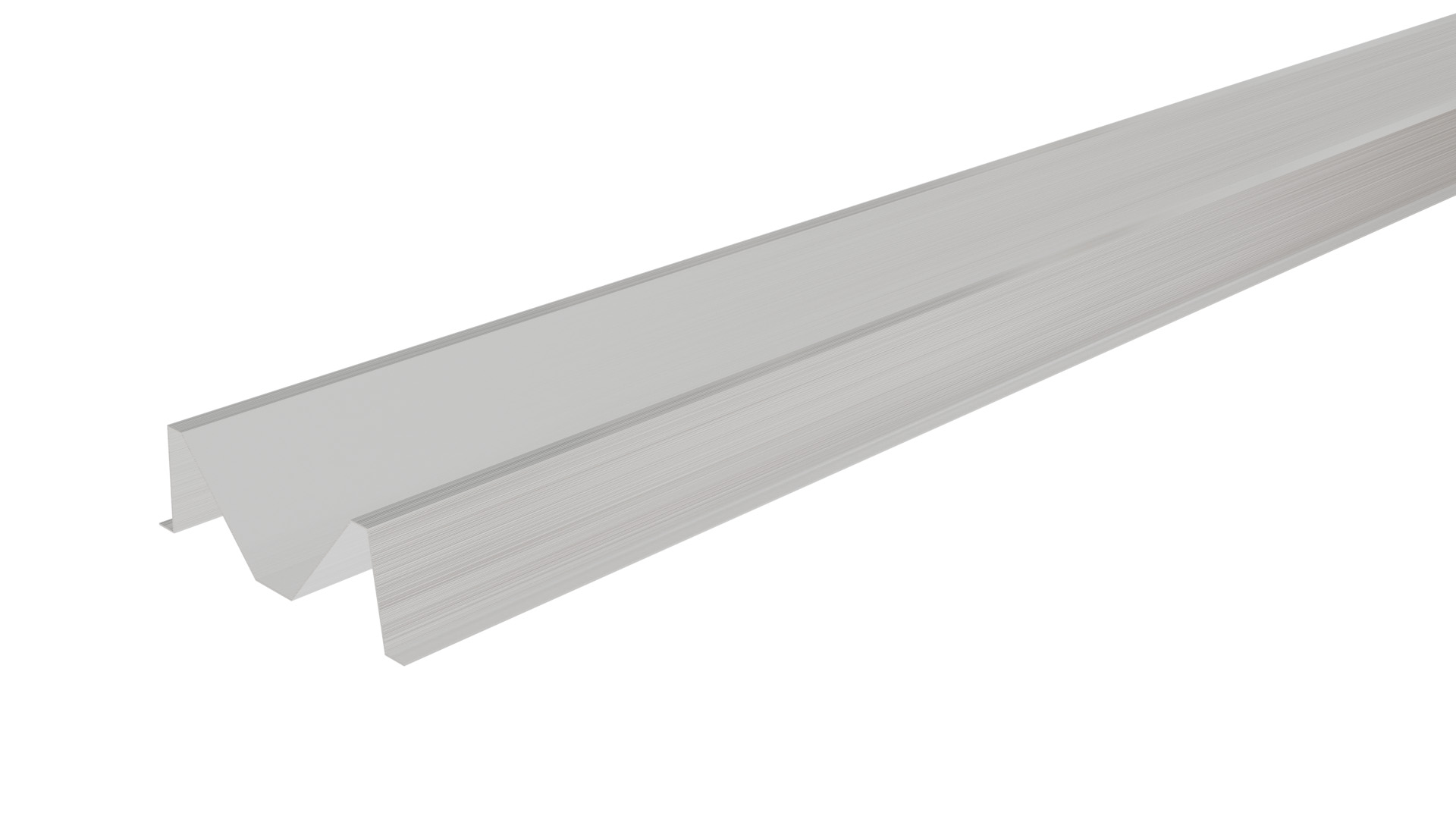

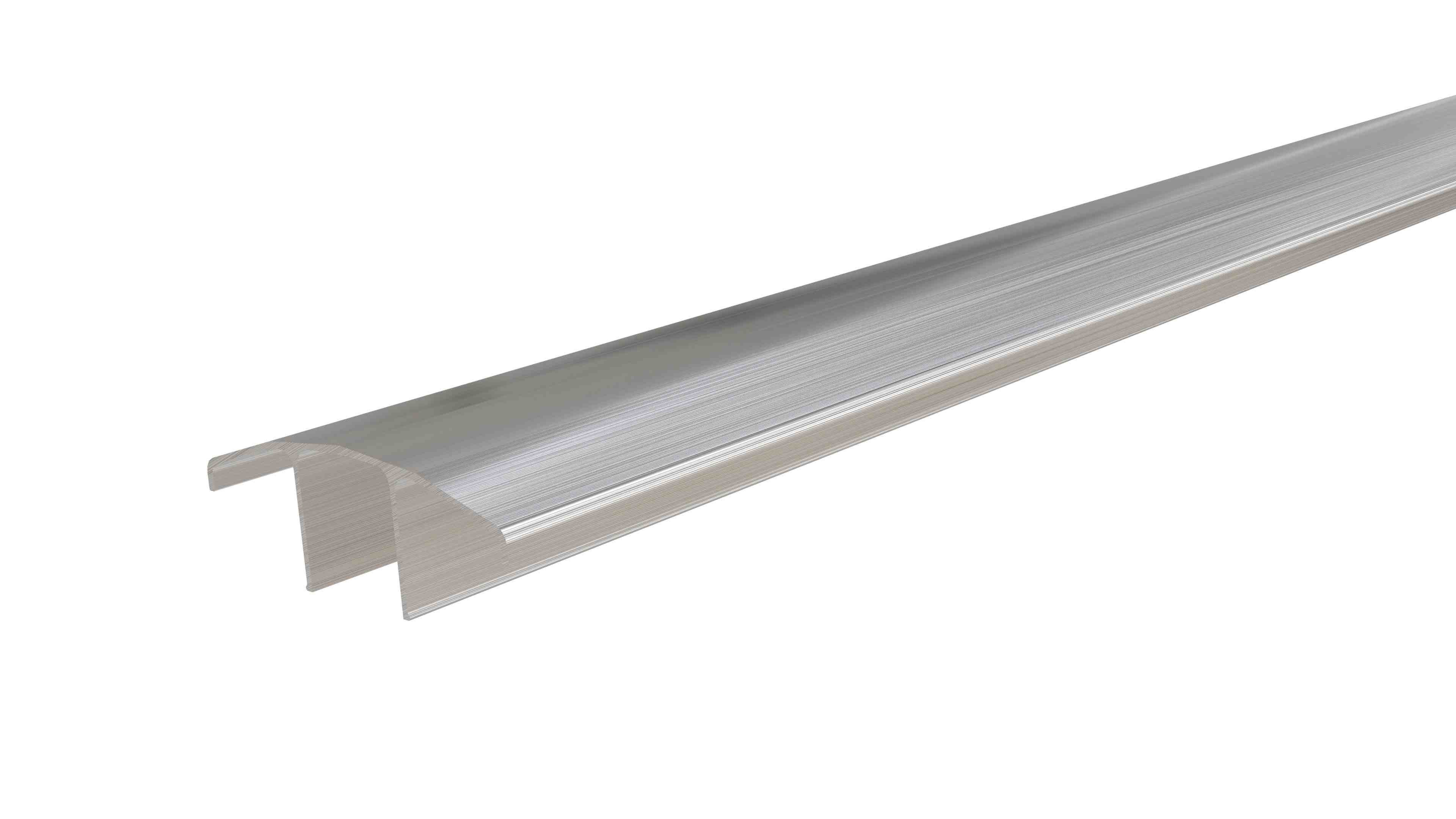

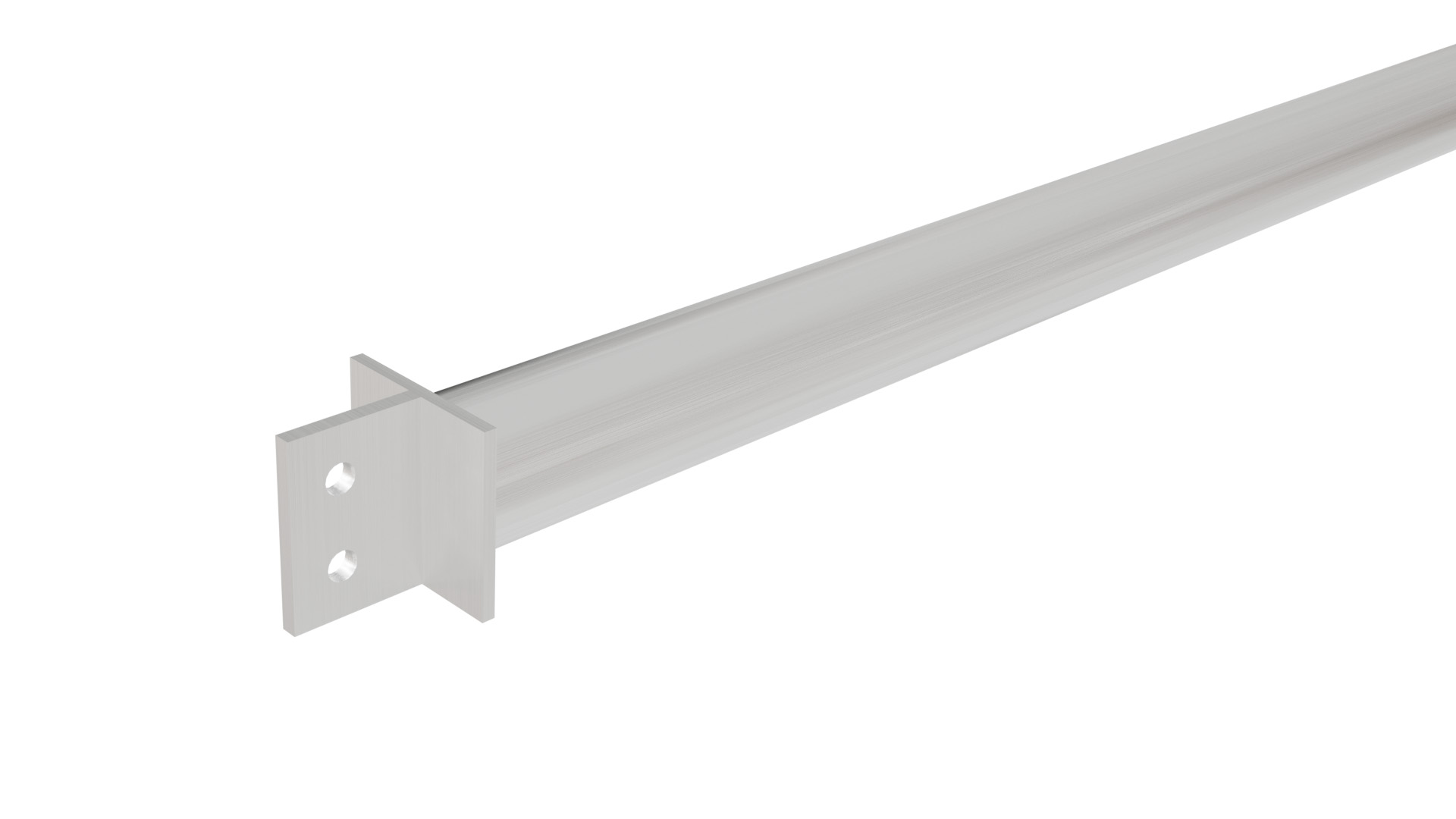

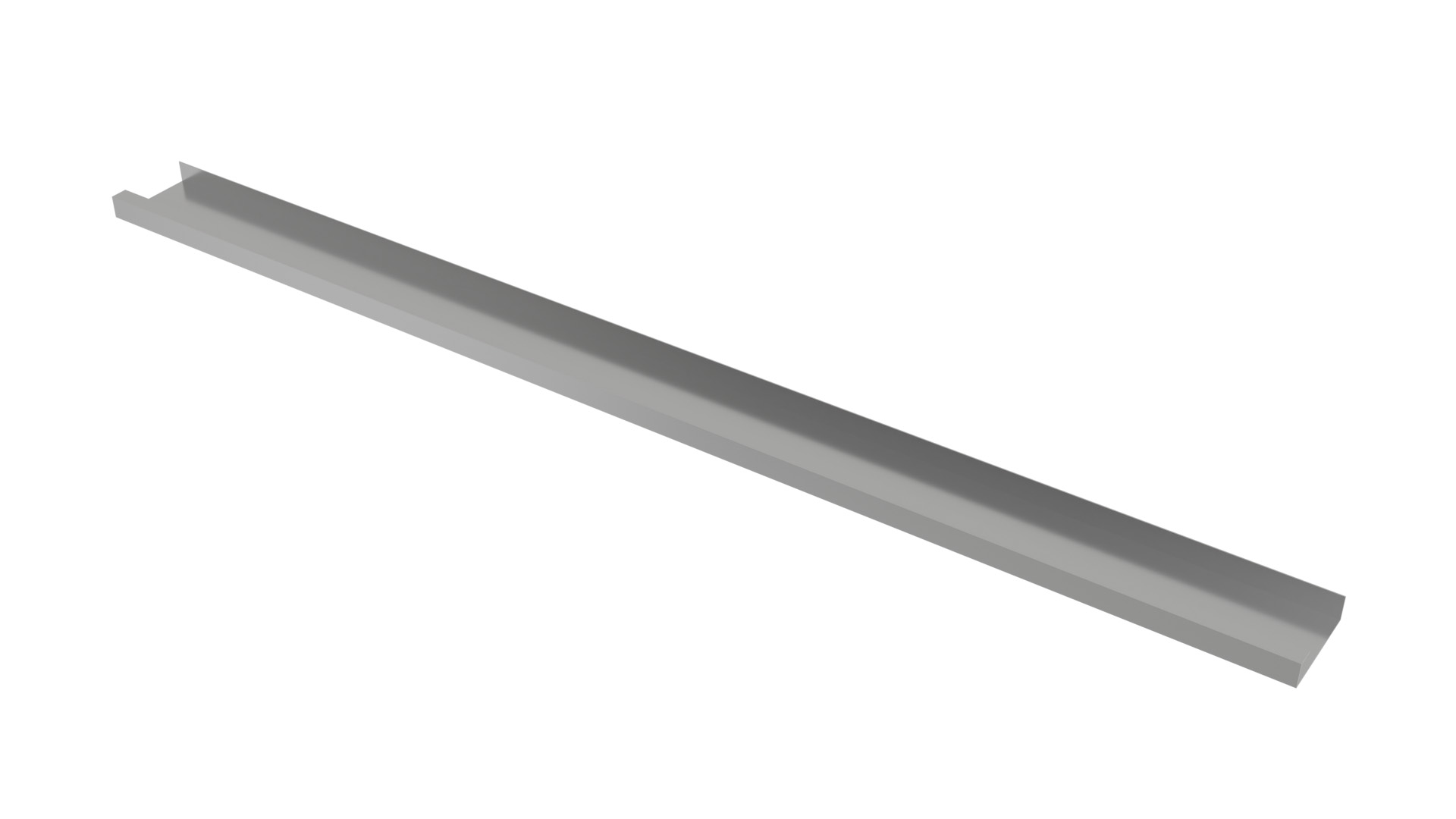

 04 Accessories

•

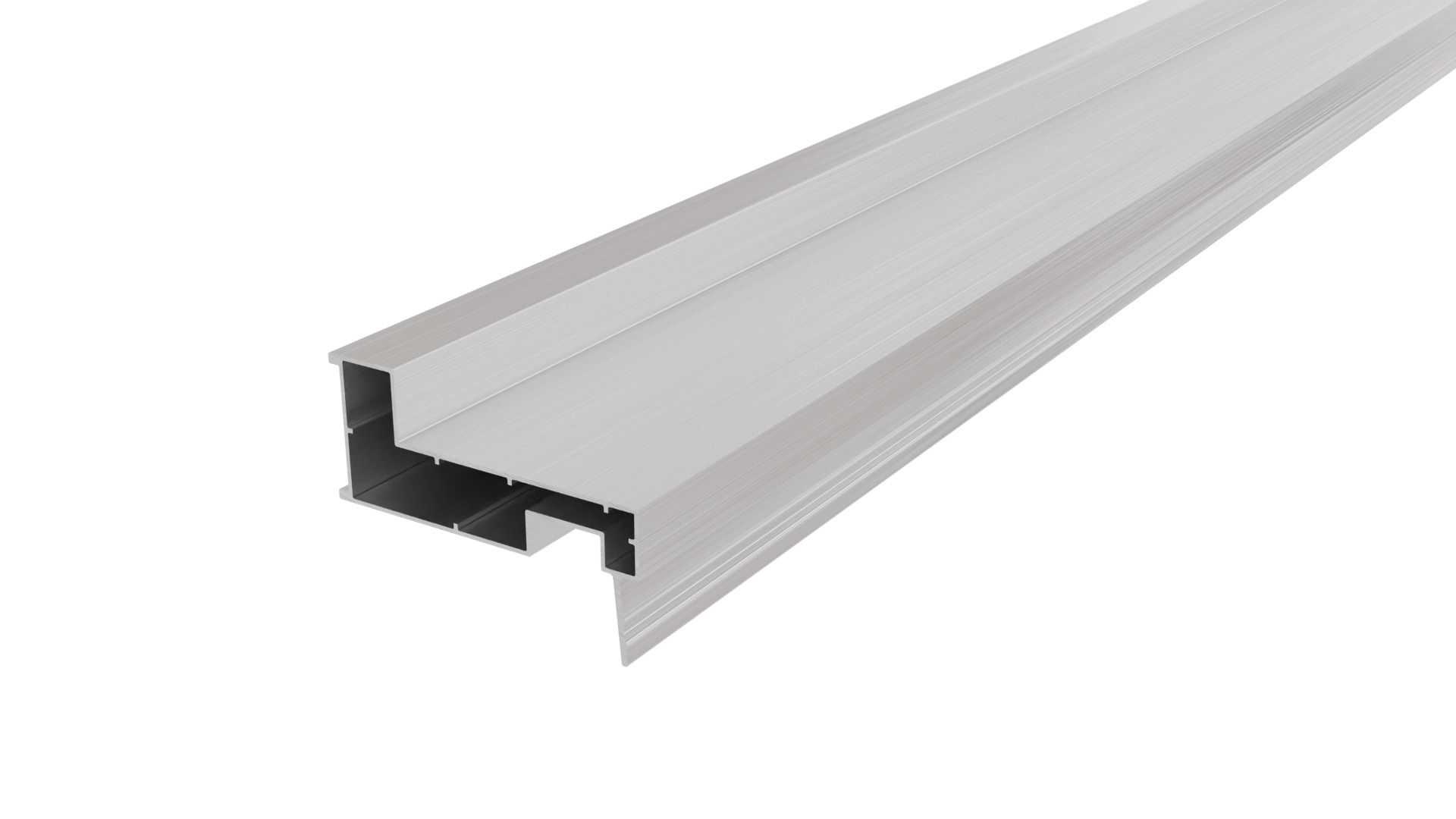

  End Clamp Tube
•

  Cross Gutter
•

  Tie Rod
•

  Cover Plate
•

  Main Gutter



 05 Core Engineering Parameters

 06 Industry Application Scenarios

✔ Photovoltaic carport for commercial parking lots

✔ Factory park parking sunshade power generation canopy

✔ Integrated carport project for public facilities

 07 Professional technical services

▶ Solution design and structural analysis:

Provide customized solution drawing, load calculation reports (including wind load/snow load/seismic force analysis) or assembly drawing.

▶ On-site survey:

Engineers conduct on-site investigations ground conditions with local soil investigation professionals.

▶ Installation training and guidance:

Provide installation videos, installation manuals and on-site installation guidance to ensure safe and complete installation.

 08 Technical verification system

Provide standardized installation videos, operation manuals and on-site technical guidance to ensure zero error in construction.

▶ Extreme environmental testing

• Pass the low-temperature impact at -40℃

• Salt spray corrosion (3,000 + hours)

• Extreme tests such as 60m/s hurricane simulation.

▶ Third-party certification

• We hold wind pressure, snow pressure, seismic resistance and material certification certificates issued by TUV, SGS and other institutions to ensure the compliance of global projects.

 09 Packages & Shipping

International standard packaging; Goods are dispatched from Shanghai, Ningbo, Tianjin, Xiamen and Shenzhen ports in China.

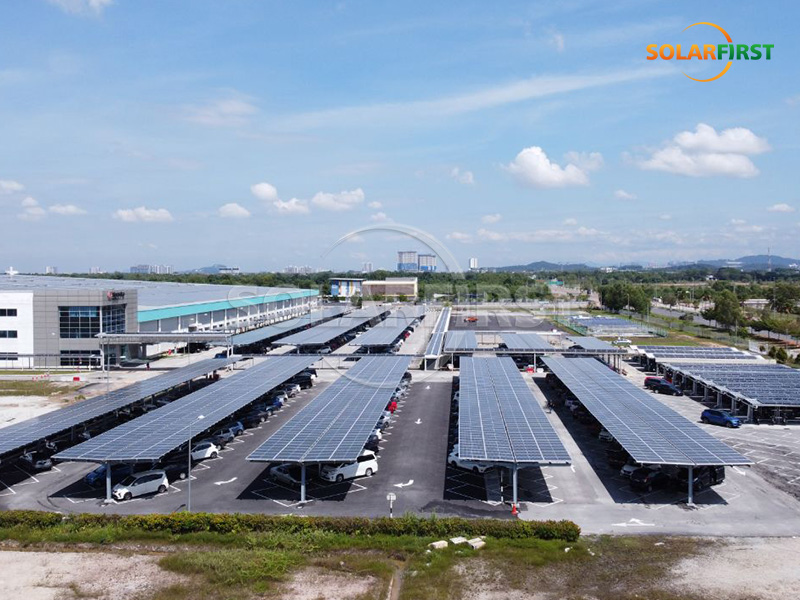

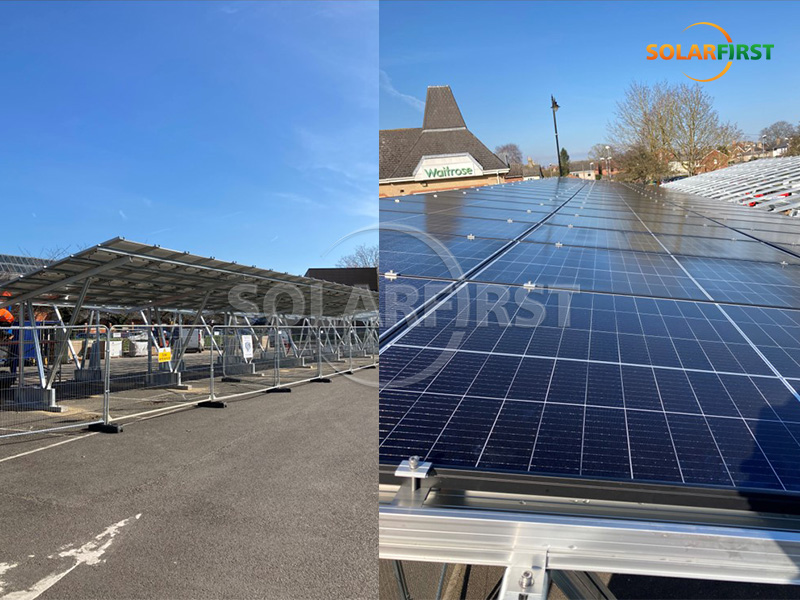

 10 Project Case
