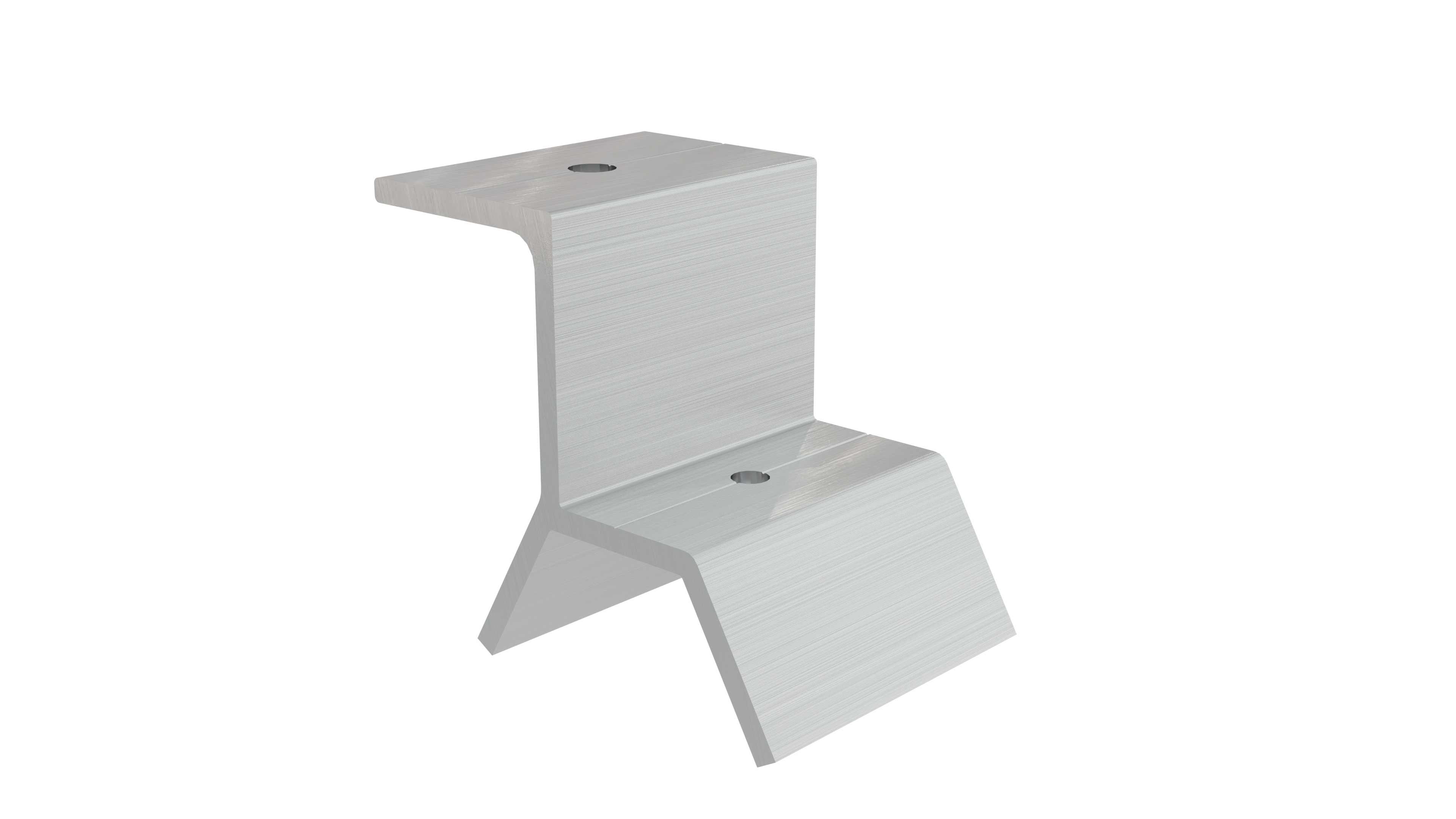

Angular Solar Roof Clamps is a non-penetrating solar installation fixture specially designed for metal vertical seam roofs. It is made of high-strength aluminum alloy and stainless steel, and is directly fixed to the roof vertical joint through mechanical clamping without the need for drilling.
Color :
Natural silver（Colored according to customer requirements）Material :
AL6005-T5Certification :
ISO，SGS, CE01 Product Description
Installation Simplicity for Angular (Klip Lok) Metal Roofs.
This cost-effective, non-penetrating system is designed for rapid deployment, significantly reducing labor time and overall expense.
The low-weight aluminum framework adds minimal stress to your building's structure. To unlock further versatility, the specialized angular clamps—configurable for various profiles—can be effortlessly paired with L-foot brackets to elevate the solar array as needed.

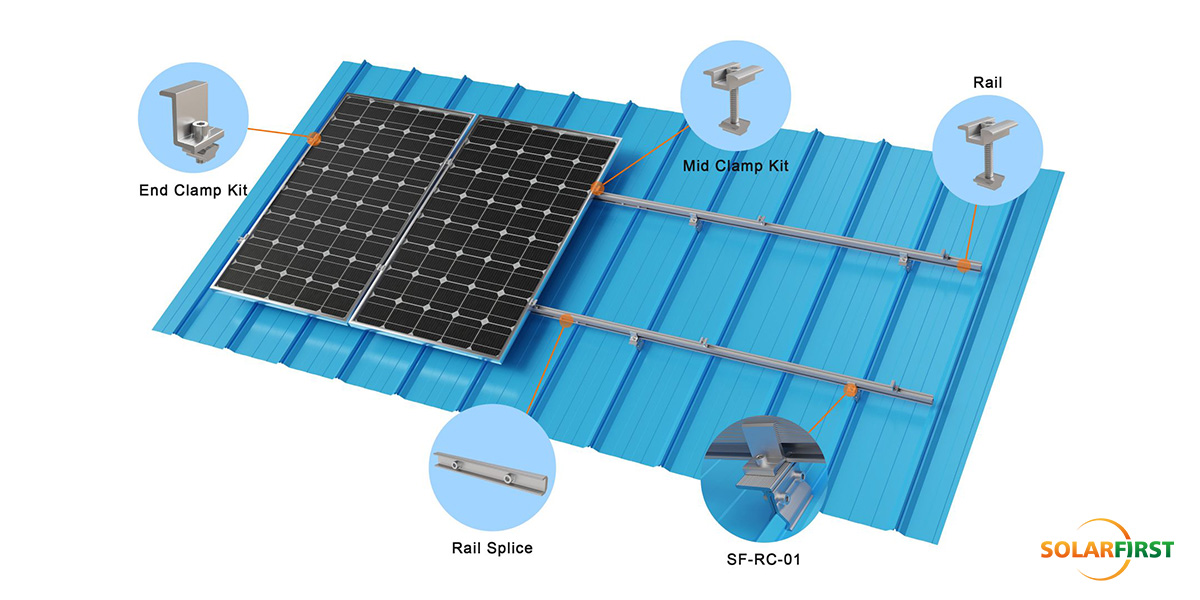

02 Accessory schematic diagram

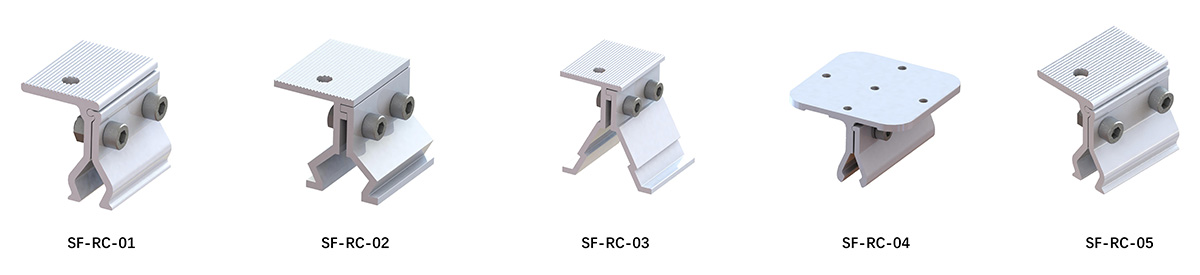

03 Product Components

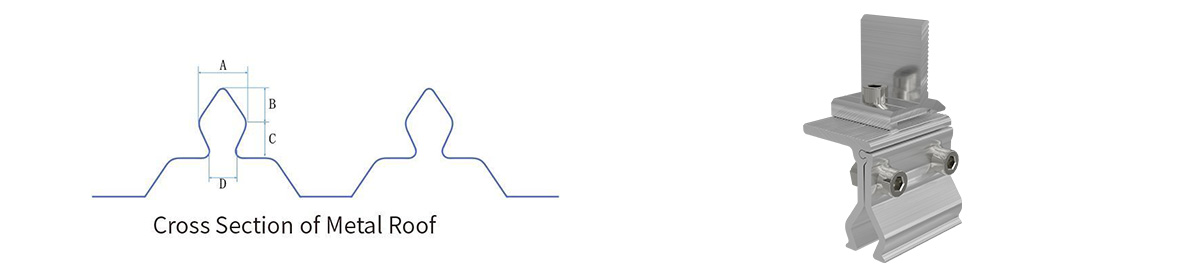

| Dimensions (mm) | A | B | C | D |
| SF-RC-01 | 18 | 13 | 10.5 | 10 |
| SF-RC-02 | 26 | 12 | 10.5 | 18 |
| SF-RC-03 | 35 | 21.6 | 2.5 | 31.5 |
| SF-RC-04 | 16.3 | 16.3 | 2.5 | 12 |
| SF-RC-05 | 15 | 12.2 | 10 | 10 |
04 Core Engineering Parameters
| Key indicators | Parameter details |
| Applicable roof | Angular metal roof panels |
| Wind load | 60m/s |
| Snow load | 1.4 kN/m² |
| Tilt Angle | Parallel to the roof |
| Main material | Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 |
| standard | GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 |
| Warranty | 10 Years Warranty |
05 Industry Application Scenarios

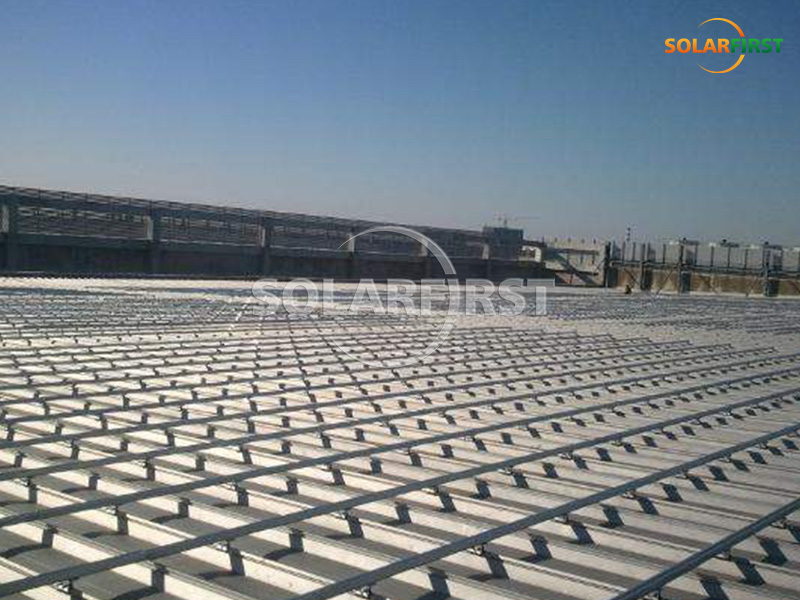

✔ Manufacturing factory: Roof of automotive/electronic factory buildings
