01 Product Description
Engineered for seamless integration with tile roofs, the SF Shingle Roof Flashing is a critical component for residential and commercial solar installations. It is constructed from high-strength, corrosion-resistant materials to provide uncompromising structural integrity and long-term support for solar arrays.
This flashing is designed to preserve the aesthetic of traditional tile roofing while delivering superior weatherproofing and a watertight seal, thereby enhancing overall roof protection. Its design allows for rapid installation on both new and existing roofs, minimizing labor time and ensuring durable, reliable performance. The solution effectively prevents leaks and is compatible with a wide range of tile types, offering a practical and sustainable energy-upgrade path for any property.

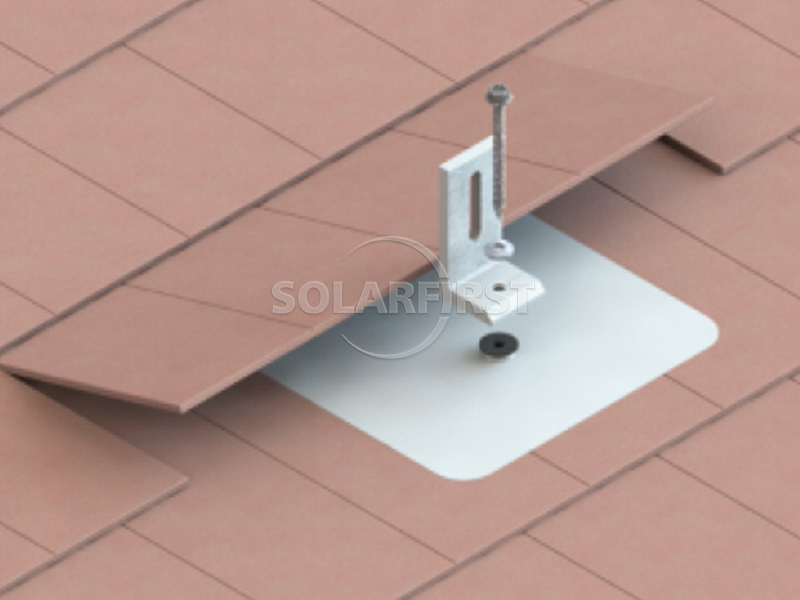

02 Accessory schematic diagram

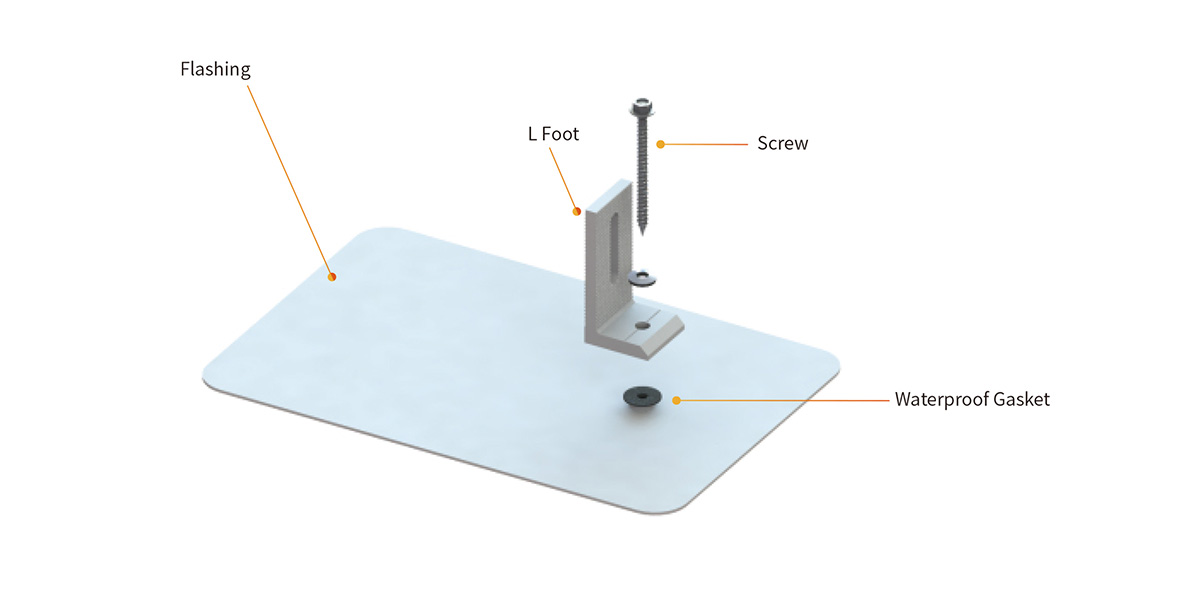

03 Product Components
04 Core Engineering Parameters
| Key indicators | Parameter details |
| Applicable roof | Shingle Roof |
| Wind load | 60m/s |
| Snow load | 1.4 kN/m² |
| Tilt Angle | Parallel to Roof Surface |
| Main material | Anodized Aluminum AL6005-T5, Stainless Steel SUS304 |
| standard | GB50009-2012, EN1990:2002, ASCE7-05, AS/NZS1170, JIS C8955:2017,GB50429-2007 |
| Warranty | 10 Years Warranty |
05 Industry Application Scenarios
✔ New residential tiled roof project
✔ Commercial building tile roof renovation project
✔ Traditional tiled roof photovoltaic system
06 Professional technical services
▶ Scheme design and structural analysis:
Provide professional solution drawings, structural analysis reports, installation manuals, or assembly drawings.
▶ On-site survey:
Engineers conduct on-site surveys of the roof conditions to confirm installation conditions and risk points.
▶ Installation training and guidance:
Provide installation videos, installation manuals and on-site technical guidance to ensure safe and complete installation.
07 Technical verification system
Provide standardized installation videos, operation manuals and on-site technical guidance to ensure zero error in construction.
07 Technical verification system
▶ Extreme environmental testing
• Pass the low-temperature impact at -40℃
• Salt spray corrosion (3,000 + hours)
• Extreme tests such as 60m/s hurricane simulation.
▶ Third-party certification
• We hold wind pressure, snow pressure, seismic resistance and material certification certificates issued by TUV, SGS and other institutions to ensure the compliance of global projects.
08 Packages & Shipping
International standard packaging; Goods are dispatched from Shanghai, Ningbo, Tianjin, Xiamen and Shenzhen ports in China.
