A non-destructive installation fixture specially designed for wave-shaped color steel tile roof photovoltaic systems. The fixture is made of high tensile strength aluminum and, through a unique clamping structure, firmly fixes the solar panel system at the peak of the wave tiles without penetrating the roof panel. This fundamentally solves the potential roof leakage problems caused by traditional installation methods and is an ideal installation solution for industrial and commercial rooftop photovoltaic projects.
Color :
Silver blackMaterial :
AL6005-T5Certification :
ISO，SGS01 Product Description
Our low-profile mounting system is designed for speed and economy, cutting both installation time and overall costs. The lightweight aluminum components protect your roof structure from excess weight.
To maximize your energy output, the universal clamps readily pair with our L-feet for elevation or our adjustable legs to achieve the perfect sun-catching angle.
Compatible with both framed and frameless solar modules, these metal roof mounting brackets allow secure fastening without complex adjustments, helping reduce material and labor costs. Installation can be performed in either landscape or portrait orientation to accommodate different project requirements.

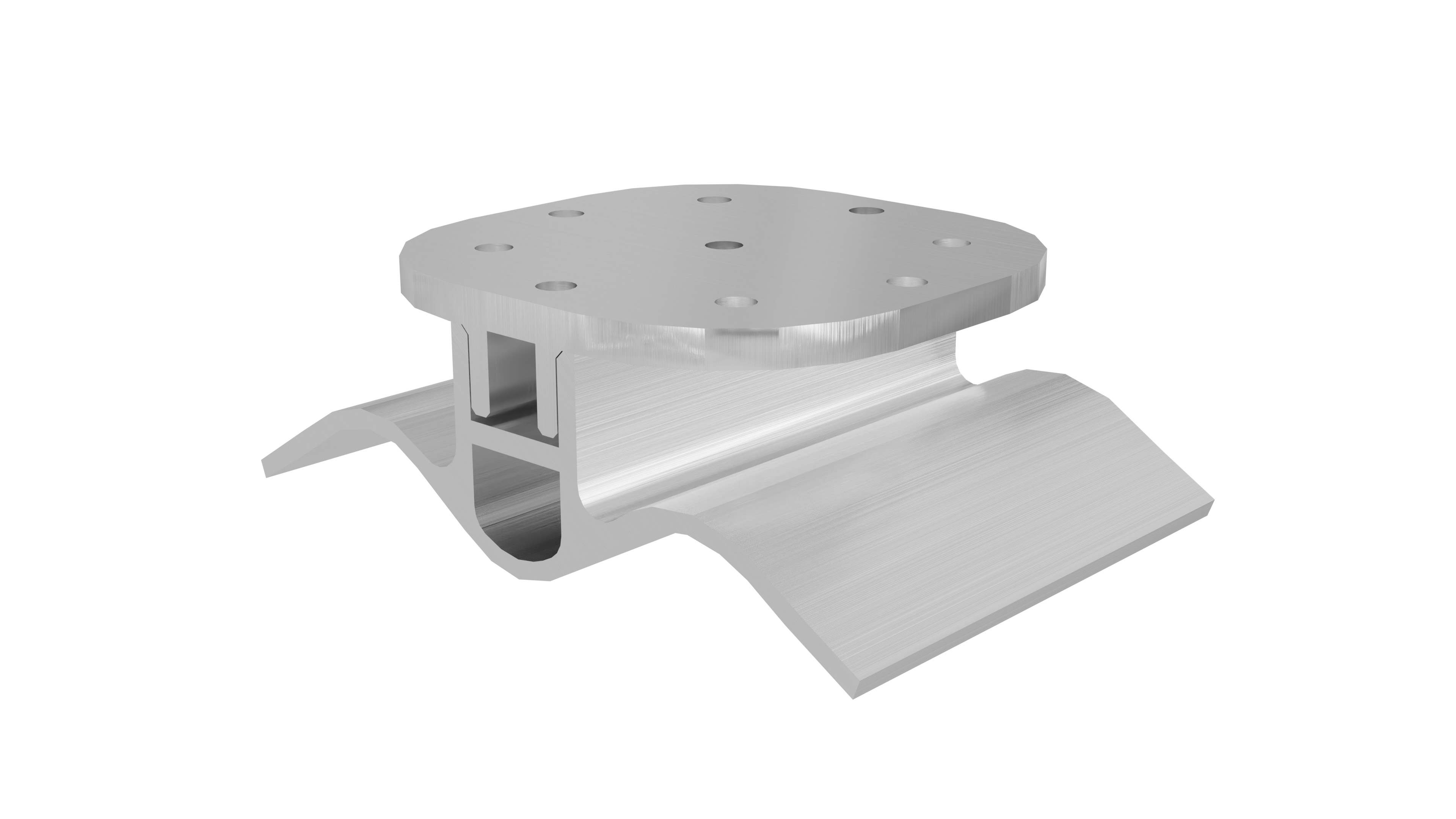

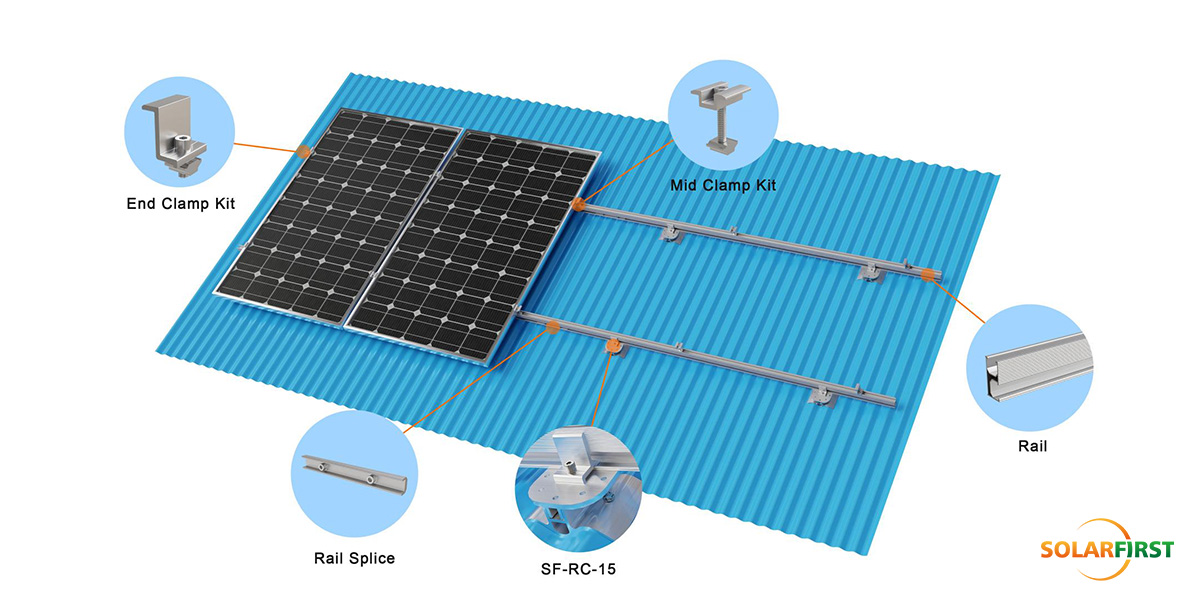

02 Accessory schematic diagram

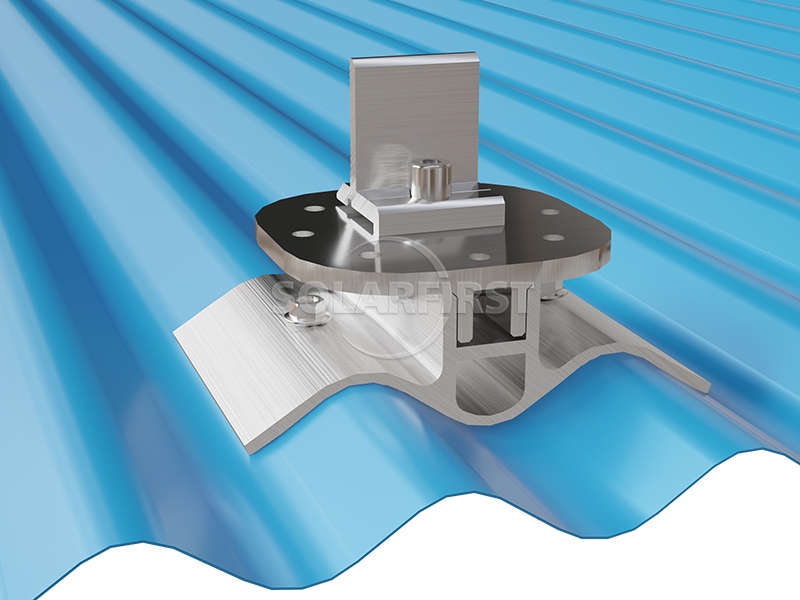

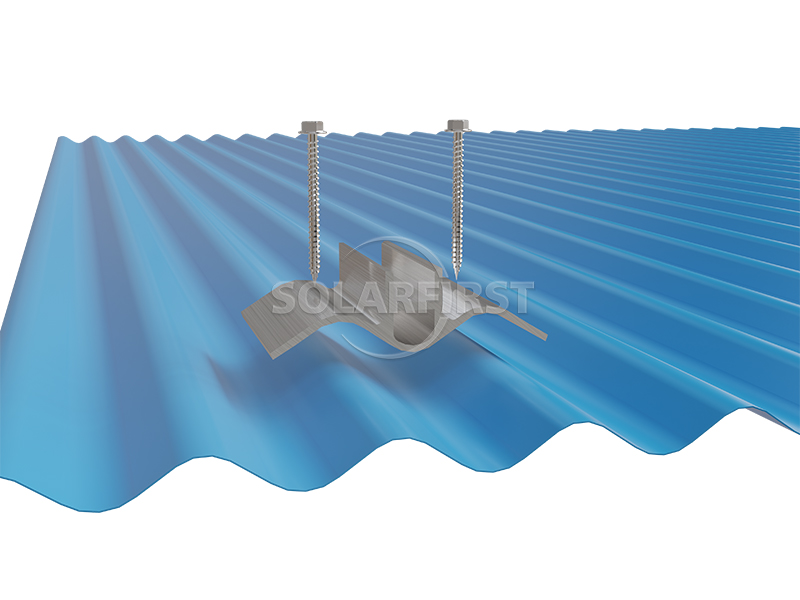

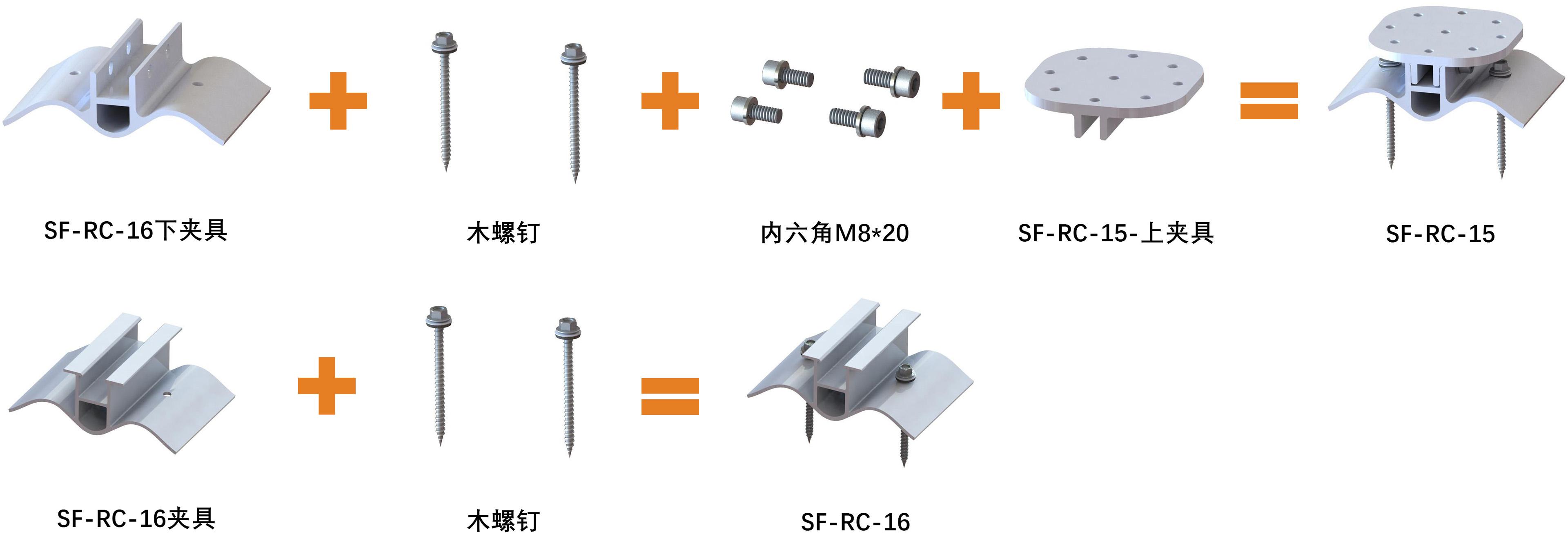

03 Product Components
| Dimensions (mm) | A | b | C(°） |
| SF-RC-15 | 76 | 21(R) | 112 |
| SF-RC-16 | 76 | 21(R) | 112 |
04 Core Engineering Parameters
| Key indicators | Parameter details |
| Applicable roof | Wavy metal tile roof |
| Wind load | 60m/s |
| Snow load | 1.4 kN/m² |
| Tilt Angle | Parallel to the roof |
| Main material | Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 |
| standard | GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 |
| Warranty | 10 Years Warranty |
05 Industry Application Scenarios
✔ Manufacturing factory: Roof of automotive/electronic factory buildings
✔ Cold chain logistics center: Large warehouse roof
✔ Agricultural greenhouse upgrade: Light steel frame greenhouse
06 Professional technical services
▶ Scheme design and structural analysis:
Provide professional solution drawings, structural analysis reports, installation manuals, or assembly drawings.
▶ On-site survey:
Engineers conduct on-site surveys of the roof conditions to confirm installation conditions and risk points.
▶ Installation training and guidance:
Provide installation videos, installation manuals and on-site technical guidance to ensure safe and complete installation.
07 Key Features
Outstanding wind resistance performance:
The structure has undergone rigorous mechanical calculations and tests, capable of withstanding strong winds of up to 60 meters per second, ensuring the safety of the power station during extreme weather conditions.
Reliable bearing capacity:
Possesses excellent compressive strength, capable of withstanding a maximum snow load of 1.4KN/m², suitable for various climate conditions.
Extremely long service life:
The main body is made of Al6005-T5grade aluminum alloy, with anodized surface treatment. The key connecting parts are made of SUS304 stainless steel, ensuring that the fixture system has corrosion resistance and durability of over 10 years in outdoor environments.
Broad compatibility:
Compatible with the mainstream framed and unframed solar modules in the market. Supports both horizontal and vertical layout methods, meeting the design requirements of various power stations.
08 Packages & Shipping
International standard packaging; Goods are dispatched from Shanghai, Ningbo, Tianjin, Xiamen and Shenzhen ports in China.

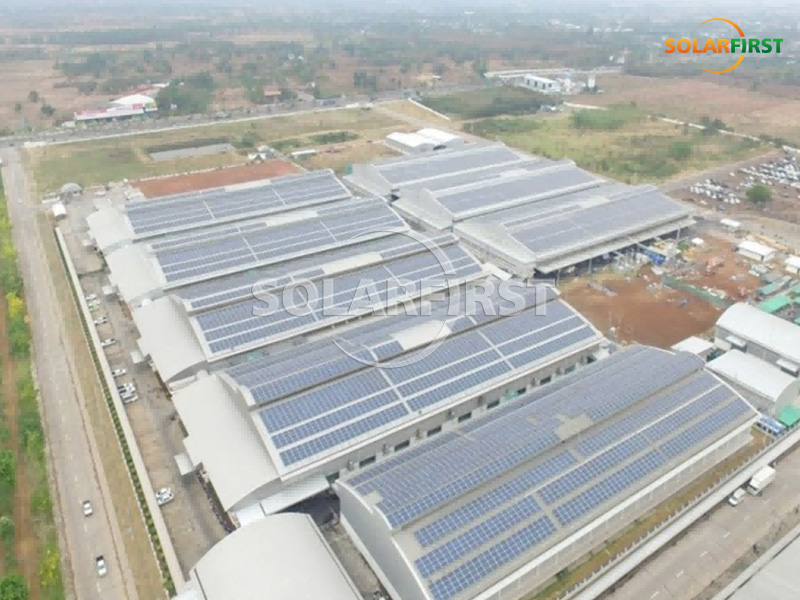

09 Project Case
The Klip Lok Solar Metal Roof Mount is a professionally engineered, high-strength aluminum solution designed for a secure and precise connection to metal roof sheets. Its optimized design significantly reduces installation time and overall cost.
Details
This versatile L-foot mounting system accommodates corrugated, trapezoidal, and asbestos roofing sheets, with multiple fastener options for fast and secure installation. Fully compliant with international wind and snow load standards, it ensures reliability across diverse climates.
Details
Standing seam roof clamps are non-penetrating devices used to securely attach various accessories, such as solar panels, snow guards, and fall protection systems, to standing seam metal roofs without drilling or damaging the roof surface.
Details
U-Rail solar metal roof mounts are a cost-effective, rail-less solar mounting solution designed specifically for trapezoidal metal (tin) roofs. They feature a simple design that uses short U-shaped aluminum rails fixed directly to the roof ridges.
Details
Metal roof mounts with adjustable legs are widely available, typically designed as part of solar panel mounting systems to optimize the panel tilt angle for maximum energy production. These systems often utilize durable anodized aluminum and stainless steel components.
Details
A non-destructive installation fixture specially designed for wave-shaped color steel tile roof photovoltaic systems. The fixture is made of high tensile strength aluminum and, through a unique clamping structure, firmly fixes the solar panel system at the peak of the wave tiles without penetrating the roof panel. This fundamentally solves the potential roof leakage problems caused by traditional installation methods and is an ideal installation solution for industrial and commercial rooftop photovoltaic projects.
Details
Angular Solar Roof Clamps is a non-penetrating solar installation fixture specially designed for metal vertical seam roofs. It is made of high-strength aluminum alloy and stainless steel, and is directly fixed to the roof vertical joint through mechanical clamping without the need for drilling.
Details
Designed specifically for industrial and commercial trapezoidal color steel tile roof photovoltaic systems with extremely high requirements for structural strength. This fixture adopts a penetrating fixation scheme. It integrates the fixture, color steel tile and roof purlin into one through high-strength fasteners, achieving the most direct and secure load transmission. It is a reliable choice for dealing with extreme wind load environments.
Details
