U-Rail solar metal roof mounts are a cost-effective, rail-less solar mounting solution designed specifically for trapezoidal metal (tin) roofs. They feature a simple design that uses short U-shaped aluminum rails fixed directly to the roof ridges.
Color :
Silver blackMaterial :
Anodized Aluminum 6005 T5, Stainless Steel 304Certification :
ISO, SGS, CE, UL01 Product Description
Direct Mount U-Rail System for Unmatched Economy.

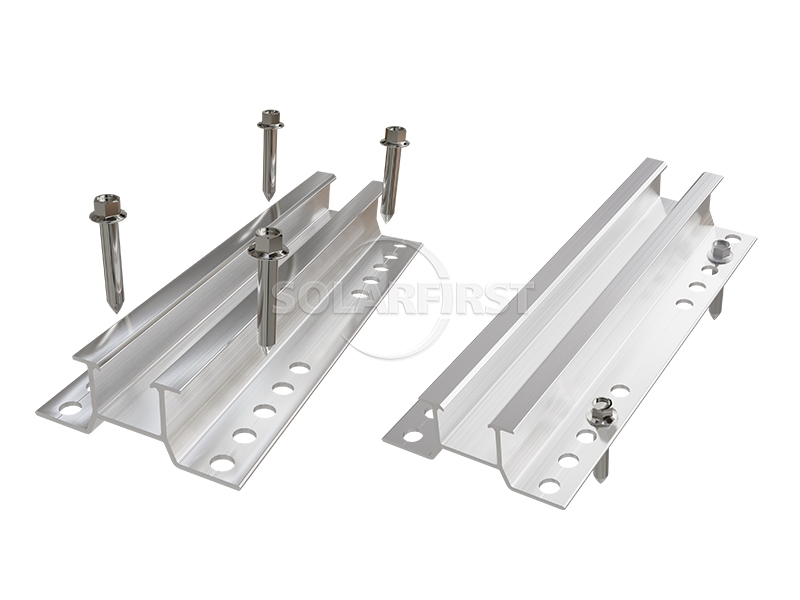

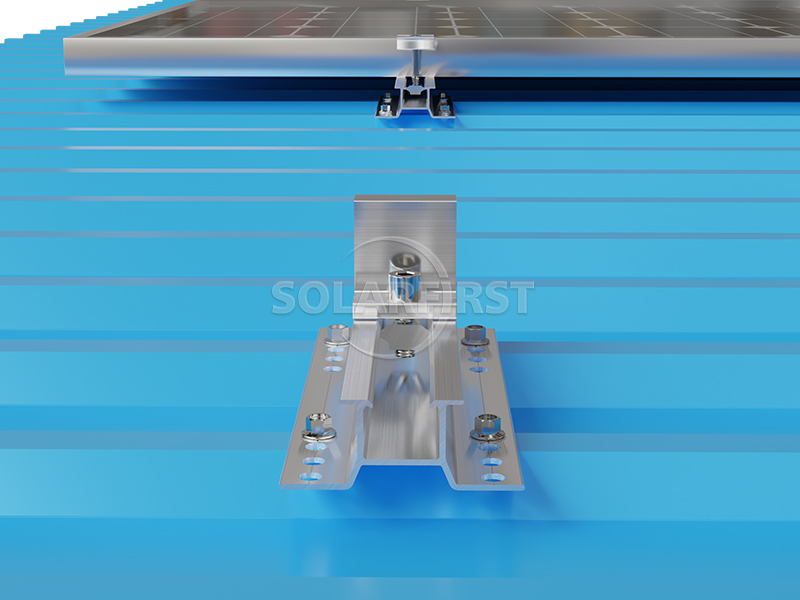

Designed specifically for trapezoidal metal roofs, our solution allows solar modules to be fastened directly onto the robust U-rail using clamps, removing the cost and complexity of additional framing. This streamlined approach reduces material weight, speeds up installation, and lowers the total load on your roof structure.
The versatile U-rail is universally compatible across trapezoidal profiles and can be customized with adjustable legs, ballast blocks, or L-feet to meet any site requirement.

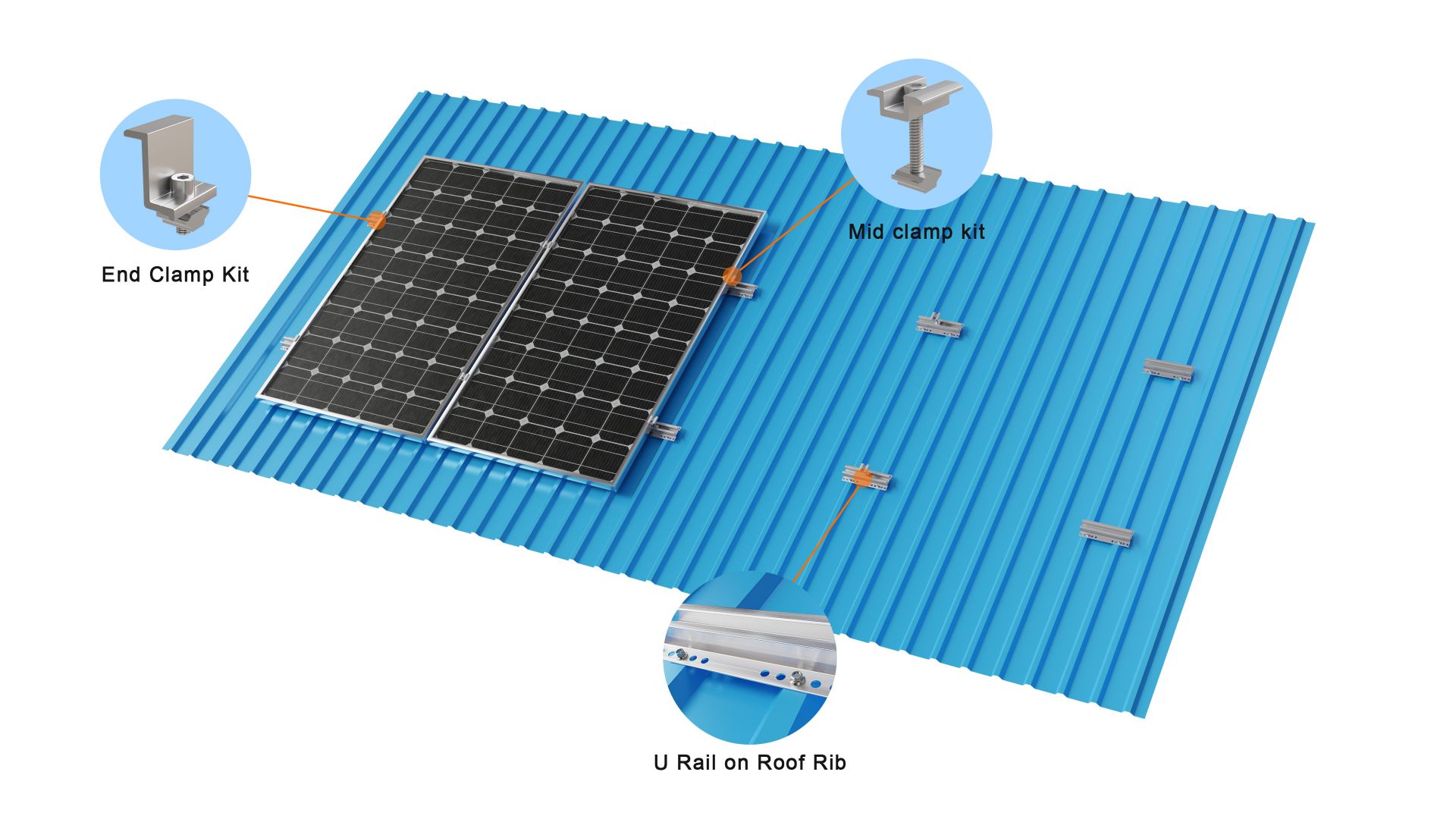

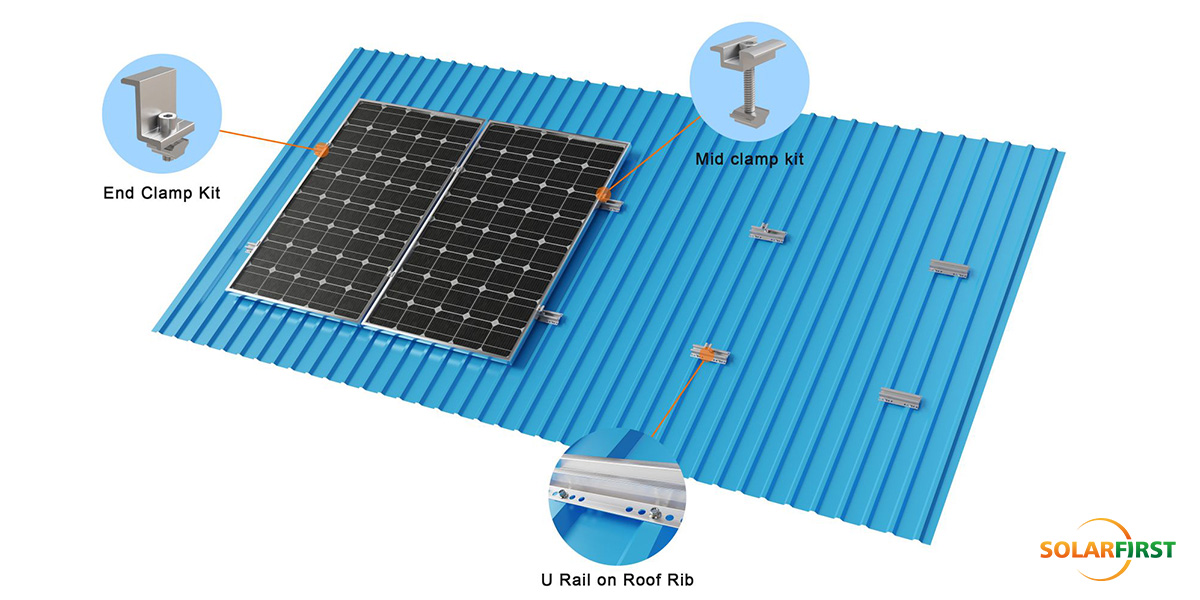

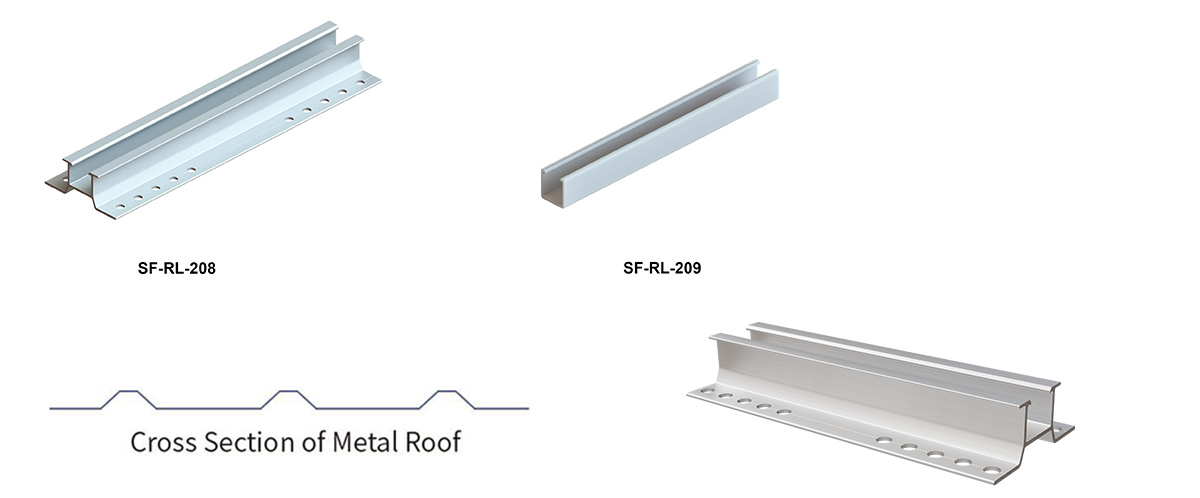

02 Accessory schematic diagram
03 Product Components
04 Core Engineering Parameters
| Key indicators | Parameter details |
| Applicable roof | Trapezoidal metal tile roof |
| Wind load | 60m/s |
| Snow load | 1.4 kN/m² |
| Tilt Angle | Parallel to the roof |
| Main material | Anodized Aluminum AL6005-T5, Stainless Steel SUS304 |
| standard | GB50009-2012, EN1990:2002, ASCE7-05, AS/NZS1170, JIS C8955:2017,GB50429-2007 |
| Warranty | 10 Years Warranty |
05 Industry Application Scenarios
✔ Manufacturing factory: Roof of automotive/electronic factory buildings
✔ Cold chain logistics center: Large warehouse roof
✔ Agricultural greenhouse upgrade: Light steel frame greenhouse
06 Advantages and Installation
Cost-Effective:
By using fewer components and requiring less labor, the U-Rail system can significantly reduce overall project cost.
Easy and Fast Installation:
The simple structure and pre-assembled components (like the EPDM pads pre-adhered to the base) make installation faster and easier, potentially allowing homeowners to install them personally for smaller arrays.
Secure Fixation:
They deliver a firm and stable fixation between the metal roof and the solar panels.
Aesthetics:
Some designs offer hidden rail connections for a cleaner, more integrated look.
07 Packages & Shipping
International standard packaging; Goods are dispatched from Shanghai, Ningbo, Tianjin, Xiamen and Shenzhen ports in China.
08 FAQ
01. What kind of maintenance do solar roof clamps require?
Typically, they require minimal maintenance, but it's important to periodically check for any signs of wear or potential issues.
02. How do solar roof clamps handle heavy snow loads?
They are designed to be robust and secure, capable of handling heavy snow loads without compromising the solar panel installation.
03. How does a solar roof clamp work?
It typically clamps onto the edges or seams of the roof, providing a stable mounting point for solar panel racking systems.
09 Project Case
The Klip Lok Solar Metal Roof Mount is a professionally engineered, high-strength aluminum solution designed for a secure and precise connection to metal roof sheets. Its optimized design significantly reduces installation time and overall cost.
Details
This versatile L-foot mounting system accommodates corrugated, trapezoidal, and asbestos roofing sheets, with multiple fastener options for fast and secure installation. Fully compliant with international wind and snow load standards, it ensures reliability across diverse climates.
Details
Standing seam roof clamps are non-penetrating devices used to securely attach various accessories, such as solar panels, snow guards, and fall protection systems, to standing seam metal roofs without drilling or damaging the roof surface.
Details
U-Rail solar metal roof mounts are a cost-effective, rail-less solar mounting solution designed specifically for trapezoidal metal (tin) roofs. They feature a simple design that uses short U-shaped aluminum rails fixed directly to the roof ridges.
Details
Metal roof mounts with adjustable legs are widely available, typically designed as part of solar panel mounting systems to optimize the panel tilt angle for maximum energy production. These systems often utilize durable anodized aluminum and stainless steel components.
Details
A non-destructive installation fixture specially designed for wave-shaped color steel tile roof photovoltaic systems. The fixture is made of high tensile strength aluminum and, through a unique clamping structure, firmly fixes the solar panel system at the peak of the wave tiles without penetrating the roof panel. This fundamentally solves the potential roof leakage problems caused by traditional installation methods and is an ideal installation solution for industrial and commercial rooftop photovoltaic projects.
Details
Angular Solar Roof Clamps is a non-penetrating solar installation fixture specially designed for metal vertical seam roofs. It is made of high-strength aluminum alloy and stainless steel, and is directly fixed to the roof vertical joint through mechanical clamping without the need for drilling.
Details
Designed specifically for industrial and commercial trapezoidal color steel tile roof photovoltaic systems with extremely high requirements for structural strength. This fixture adopts a penetrating fixation scheme. It integrates the fixture, color steel tile and roof purlin into one through high-strength fasteners, achieving the most direct and secure load transmission. It is a reliable choice for dealing with extreme wind load environments.
